Circuit Diagram & Connector Identification

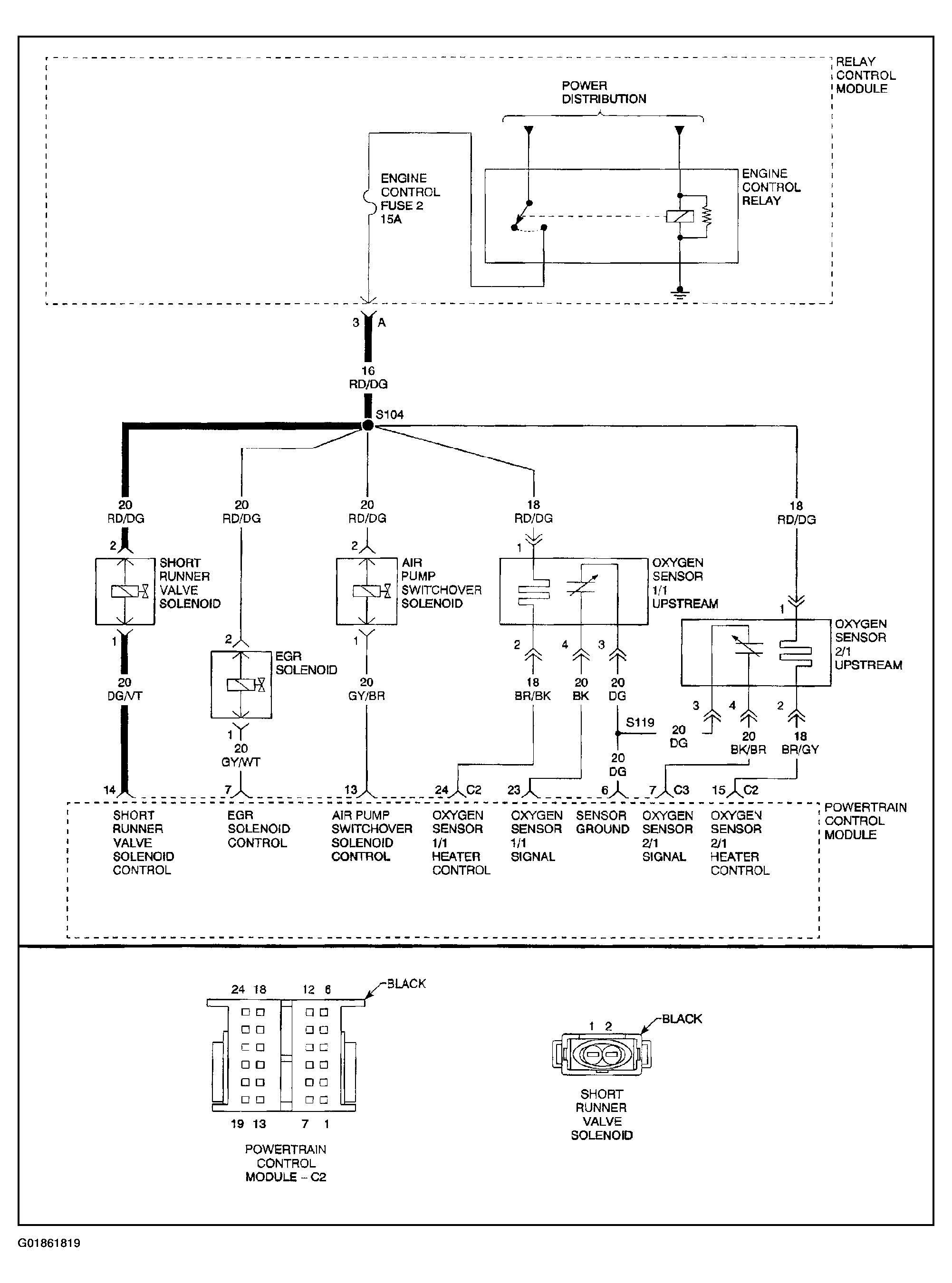

Fig 1: Identifying Short Runner Solenoid Circuit Diagram & Connector Identification
G01861819Courtesy of DAIMLERCHRYSLER CORP.
