Relay Control Module Connector End View (E)

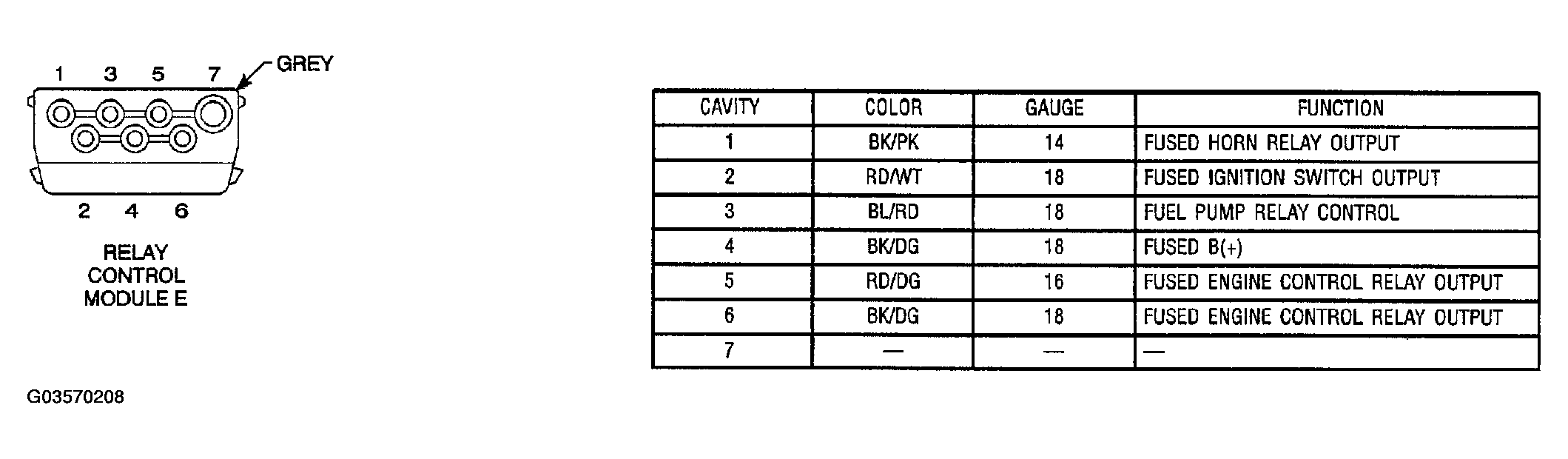

Fig 1: Relay Control Module Connector End View (E)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
