Radiator Fan Control Module: Removal

  1. Disconnect the negative battery cable.
  2. Disconnect the radiator fan control module harness connector (2).
  3. Remove the retaining nuts at the top and bottom of the cooling fan module (1).
  4. Remove the cooling fan module from the engine compartment.

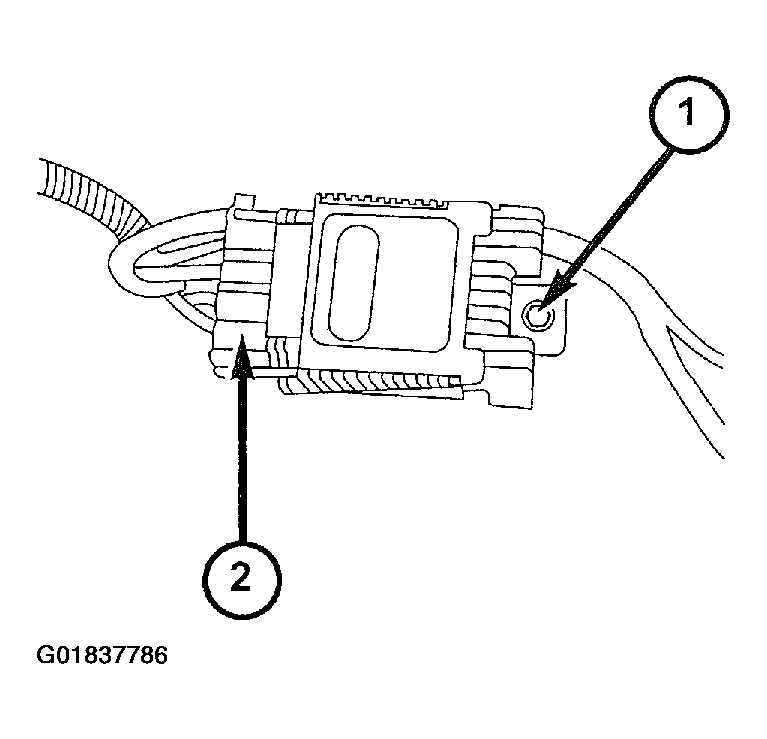

    Fig 1: Disconnecting Radiator Fan Control Module Harness Connector
    G01837786Courtesy of DAIMLERCHRYSLER CORP.
