4. Fused Engine Control Relay Output Circuit Open

With the ignition on.

Measure the voltage of the Fused Engine Control Relay Output circuit at the EGR Solenoid harness connector.

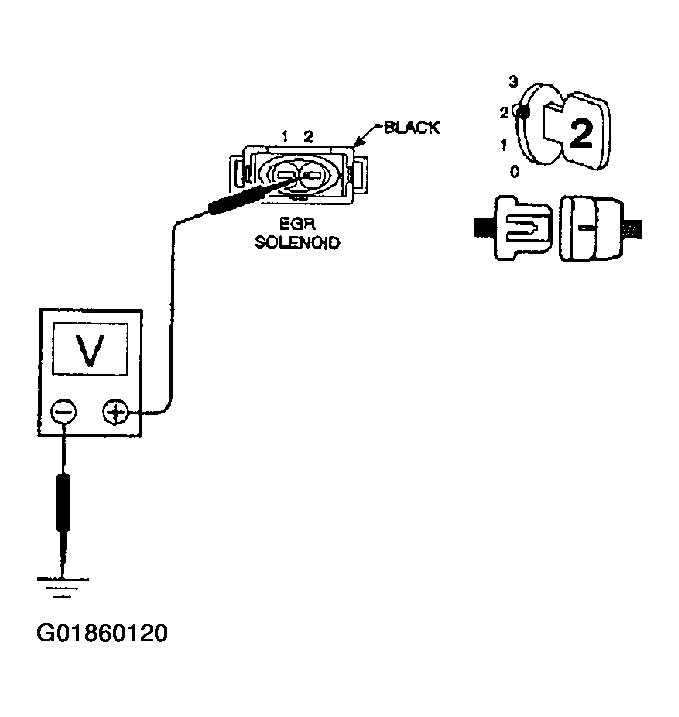

Fig 1: Measuring Voltage Of Fused Engine Control Relay Output Circuit

Courtesy of DAIMLERCHRYSLER CORP.

Is the voltage above 10 volts?

1. Yes  >> Go To 6
2. No  >> Repair the Engine Control Relay Output circuit for an open.

   See POWERTRAIN VERIFICATION TEST - VER 2  .
