Circuit Diagram & Connector Identification

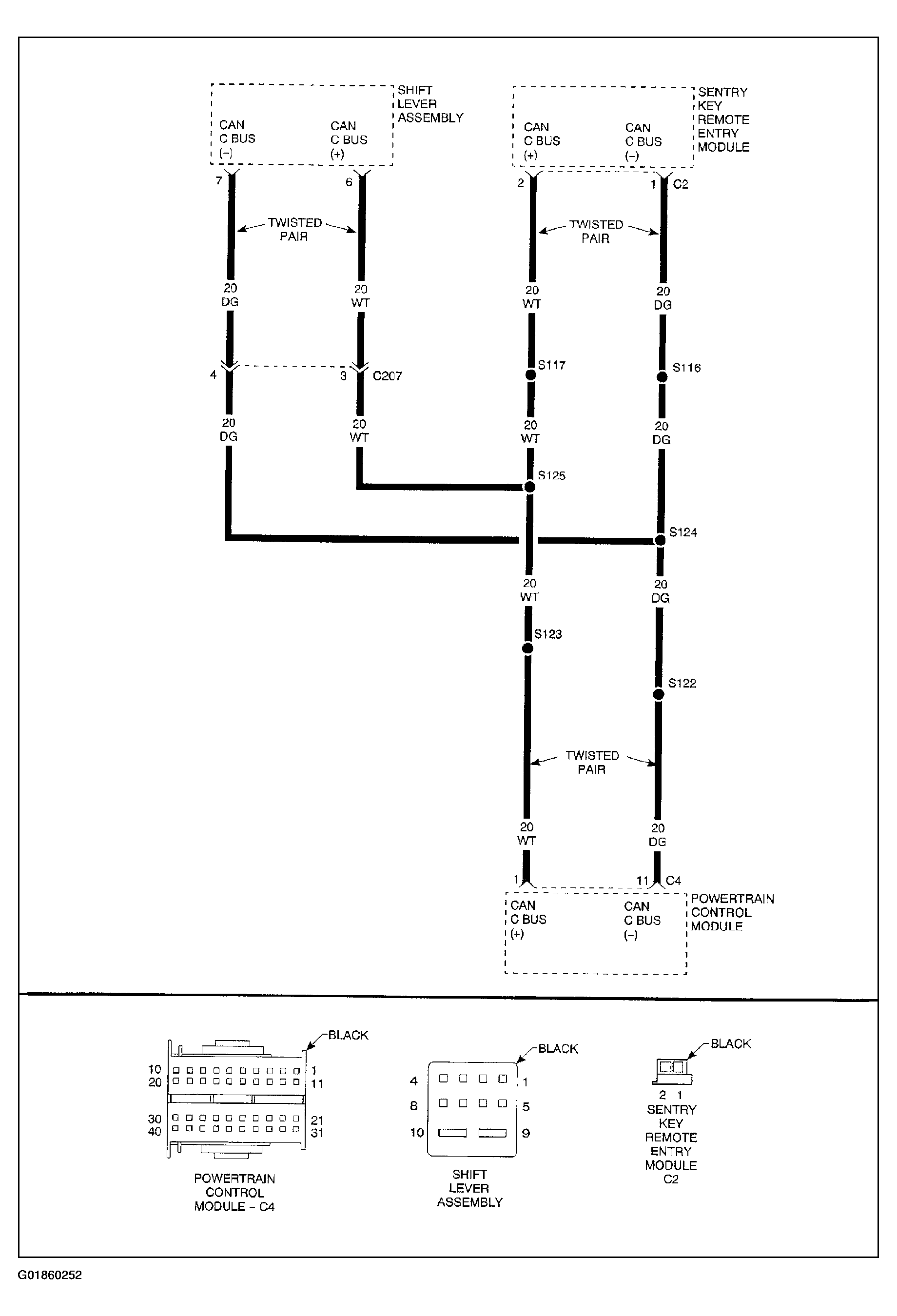

Fig 1: Identifying DTC P0600 Circuit Diagram & Connector Identification
G01860252Courtesy of DAIMLERCHRYSLER CORP.
