Steering Wheel & Steering Column: Column: Disassembly

  1. Remove the pinch bolt (16) from the intermediate shaft (9), remove intermediate shaft (9).
  2. Remove the retaining ring (6), disk spring (4) and the thrust ring (5).
  3. Push the intermediate shaft (9) out slightly, remove the locking ring (13) and the thrust ring (10).
  4. Press the ball bearing out of the steering column using the intermediate shaft (9).

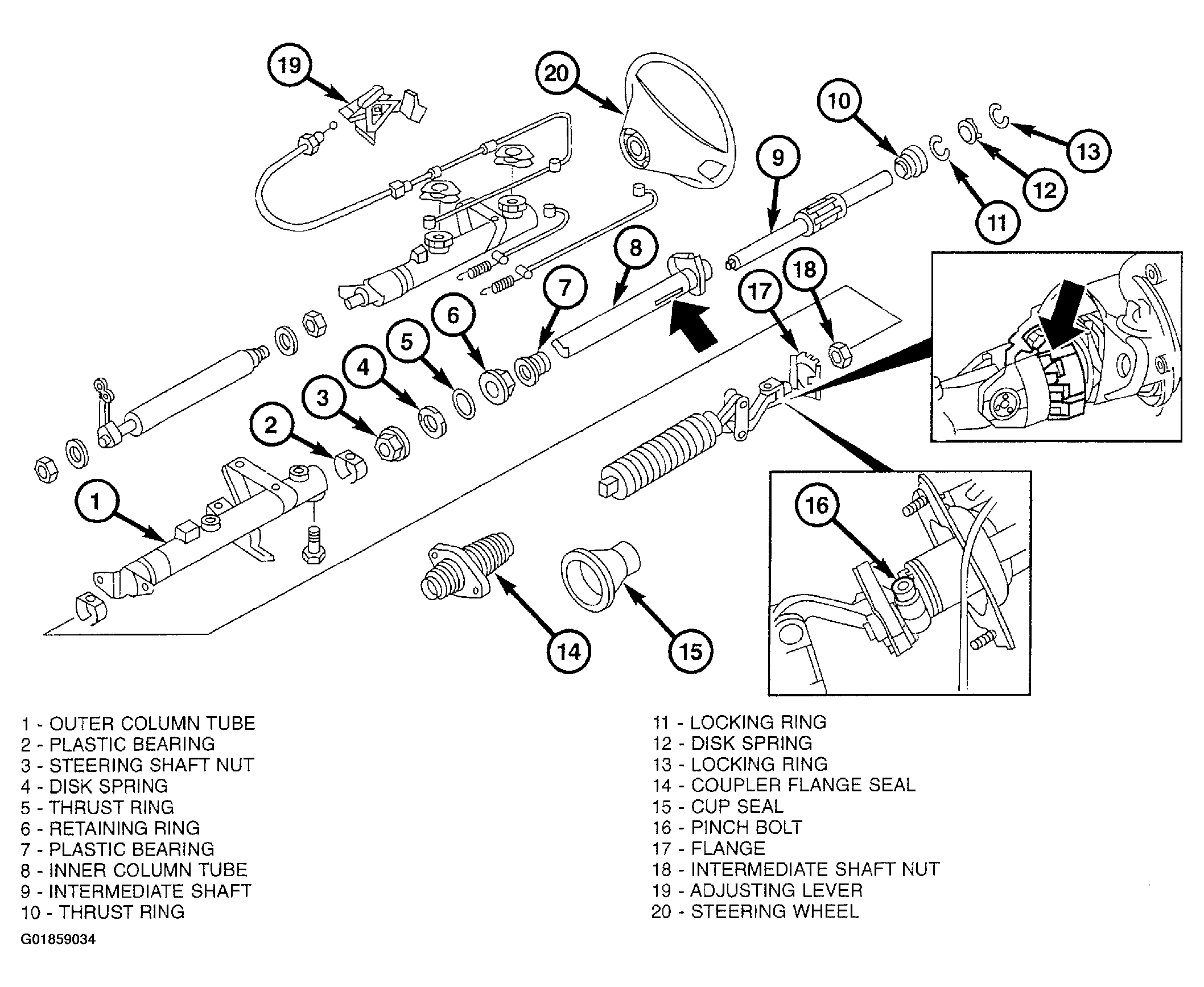

    Fig 1: Disassembling Steering Column
    G01859034Courtesy of DAIMLERCHRYSLER CORP.
