Steering Wheel & Steering Column: Column: Installation

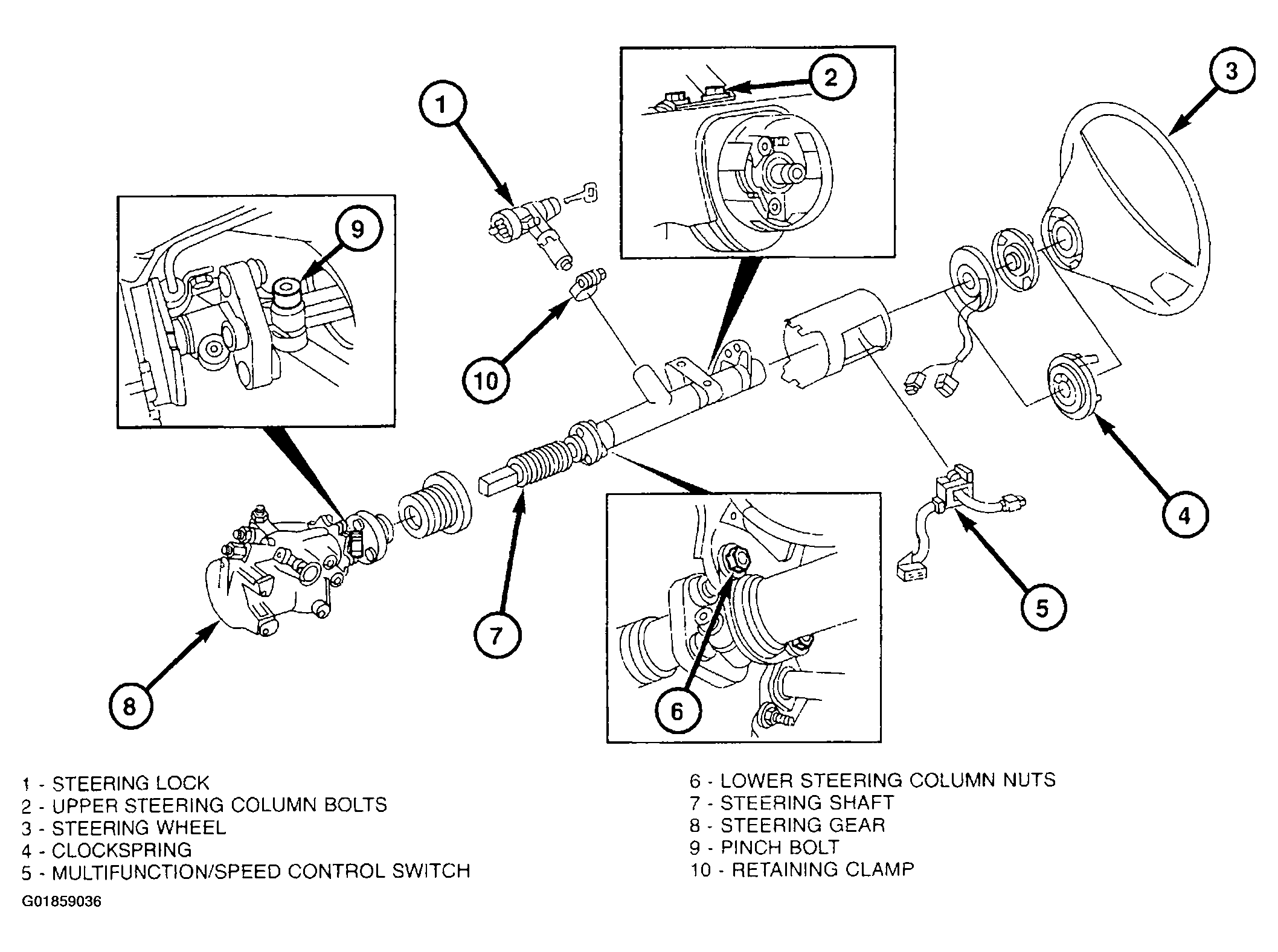

Fig 1: Exploded View Of Steering Column

Courtesy of DAIMLERCHRYSLER CORP.

WARNING: BEFORE SERVICING THE STEERING COLUMN THE AIRBAG SYSTEM MUST BE DISARMED. SEE AIR BAG RESTRAINT SYSTEMS ARTICLE. FAILURE TO DO SO MAY RESULT IN ACCIDENTAL DEPLOYMENT OF THE AIRBAG AND POSSIBLE PERSONAL INJURY.

CAUTION: DO NOT use force as the intermediate shaft is sensitive to the effects of side force.

1. Install the steering column.
2. Install the lower nuts on the steering column attaching the steering column to the lower mounting surface. Tighten to 8 N.m (71 in. lbs.).

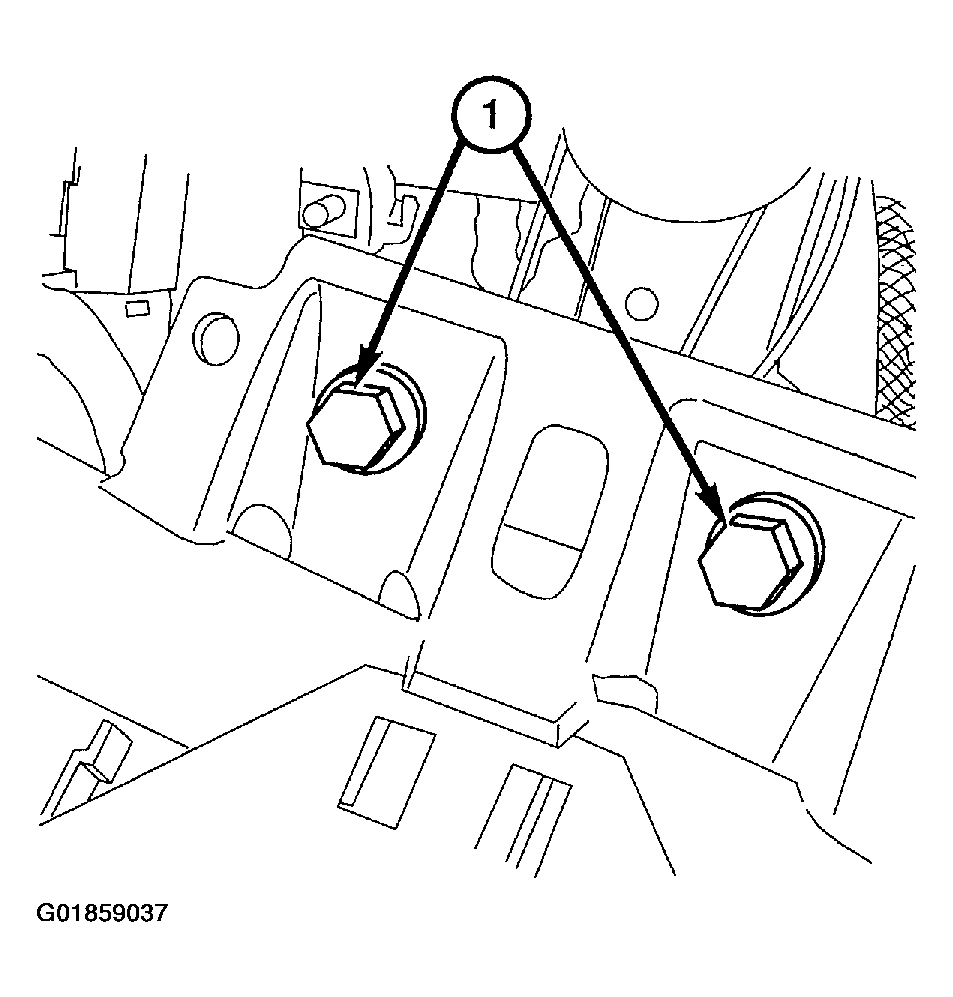

3. Install the upper bolts (1) on the steering column attaching it to the instrument panel support. Tighten to 20 N.m (15 ft. lbs.).
   Fig 2: Installing Upper Bolts On Steering Column

   Courtesy of DAIMLERCHRYSLER CORP.

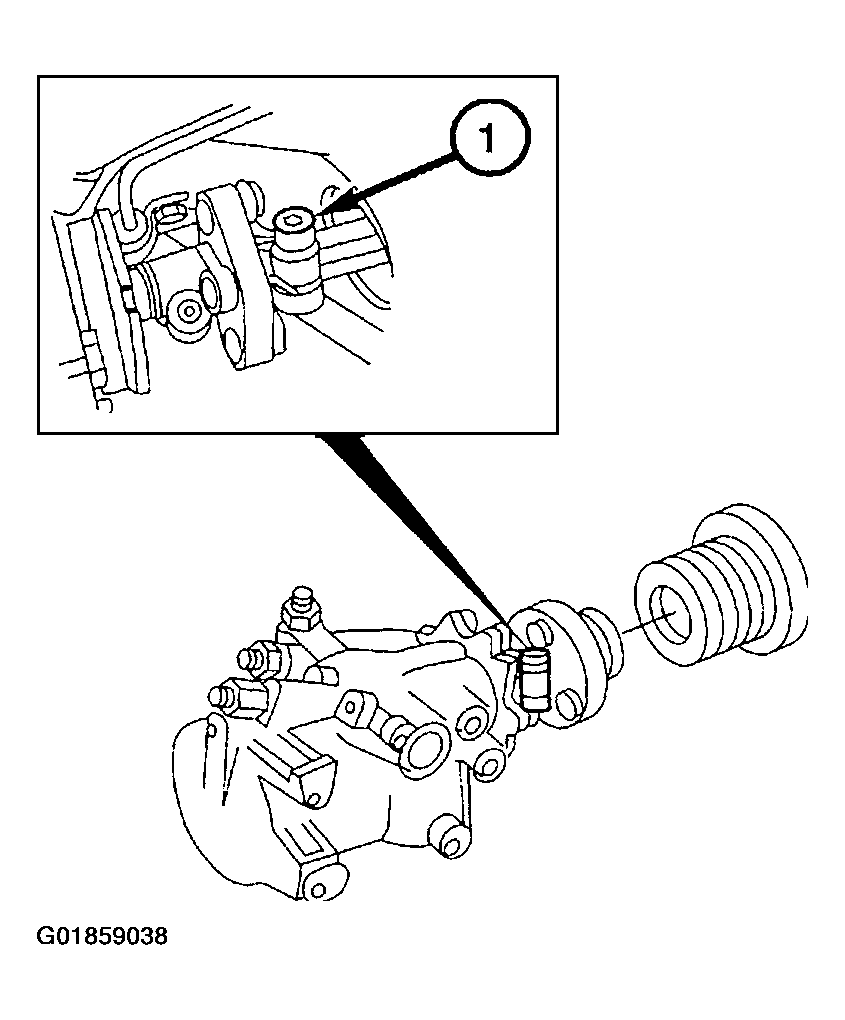

4. Install the pinch bolt (1) attaching the upper steering column to the steering gear. Tighten to 30 N.m (22 ft. lbs.).
   Fig 3: Installing Pinch Bolt

   Courtesy of DAIMLERCHRYSLER CORP.
5. Connect the clockspring electrical connector.
6. Install the column trim ring.

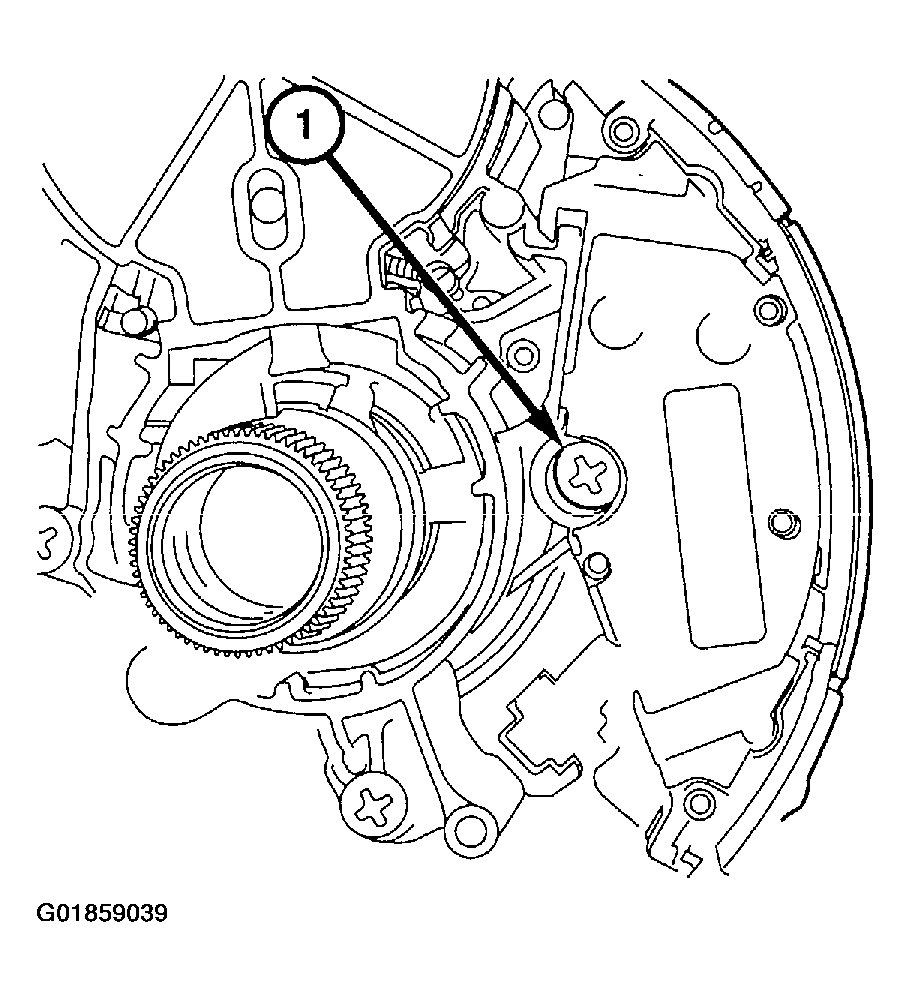

7. Install the speed control switch screws (1).
   Fig 4: Installing Speed Control Switch Screws

   Courtesy of DAIMLERCHRYSLER CORP.

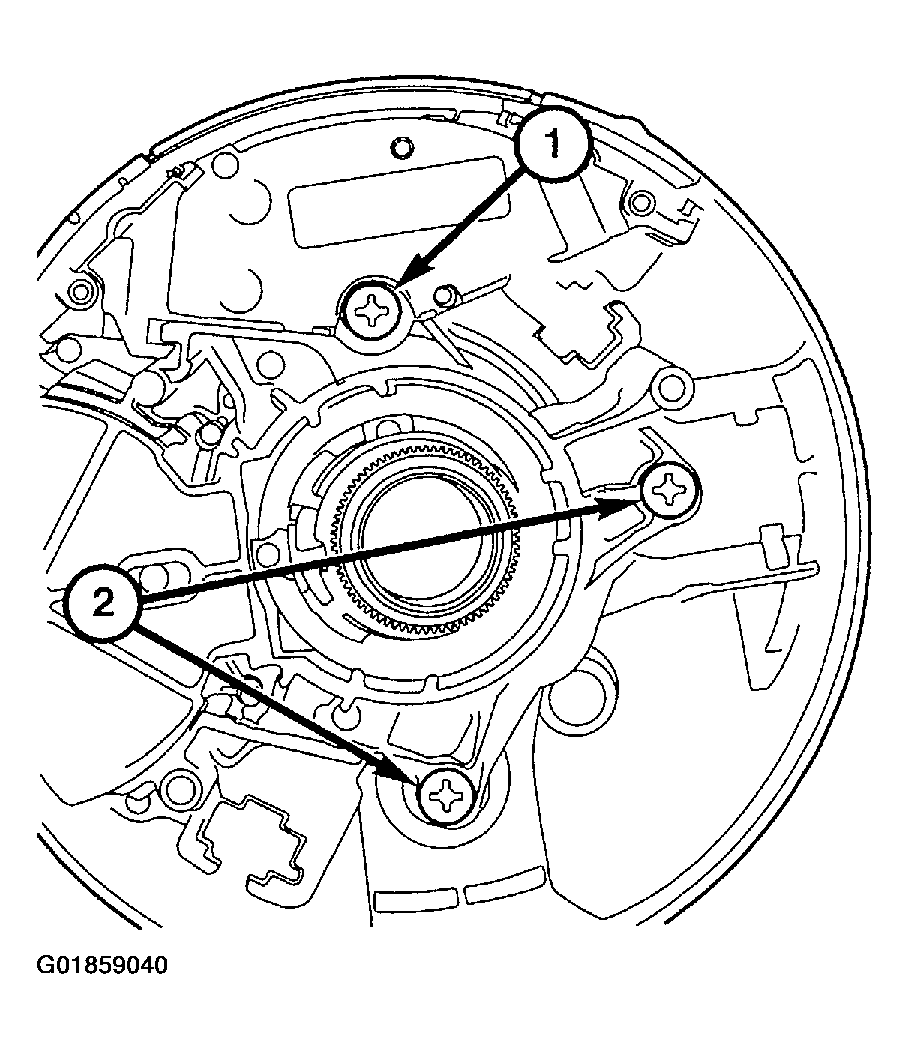

8. Install the multifunction switch screws (1-2).
   Fig 5: Installing Multifunction Switch Screws

   Courtesy of DAIMLERCHRYSLER CORP.
9. Reconnect the ignition switch connector.

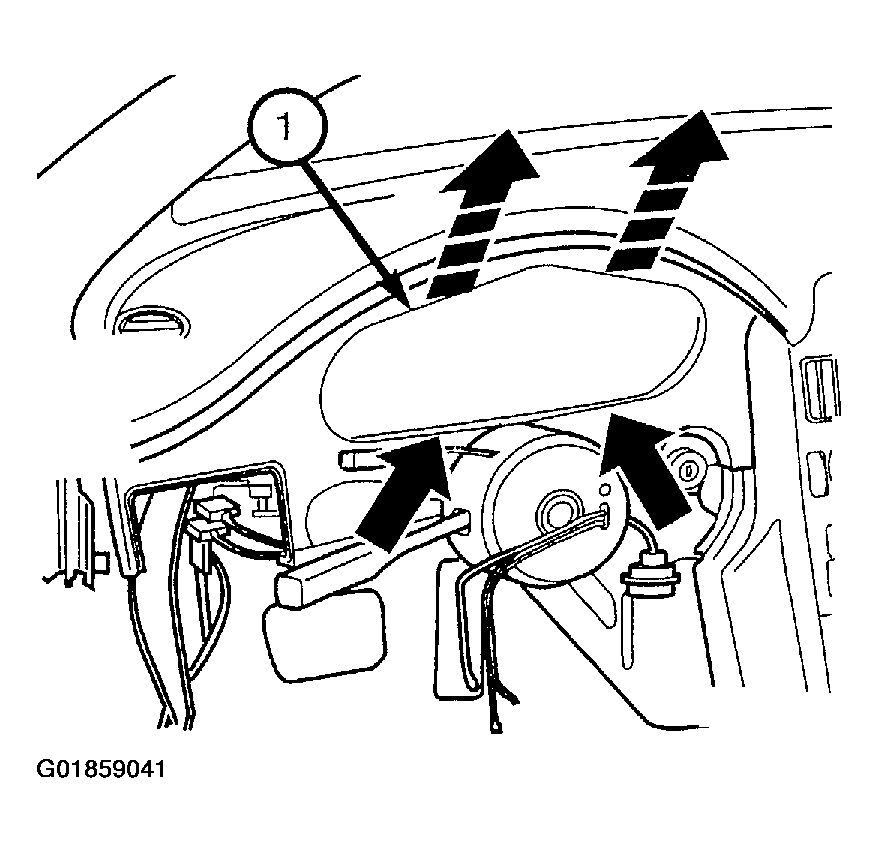

10. Install the instrument cluster (1). See INSTRUMENT CLUSTER article.
    Fig 6: Installing Instrument Cluster

    Courtesy of DAIMLERCHRYSLER CORP.

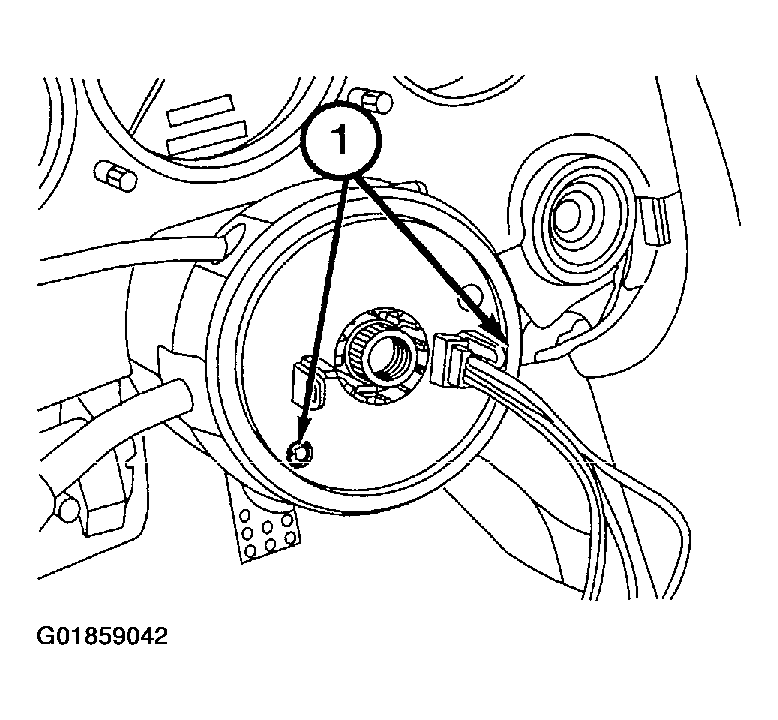

11. Install the clockspring screws (1). See AIR BAG RESTRAINT SYSTEMS article.
    Fig 7: Installing Clockspring Screws

    Courtesy of DAIMLERCHRYSLER CORP.

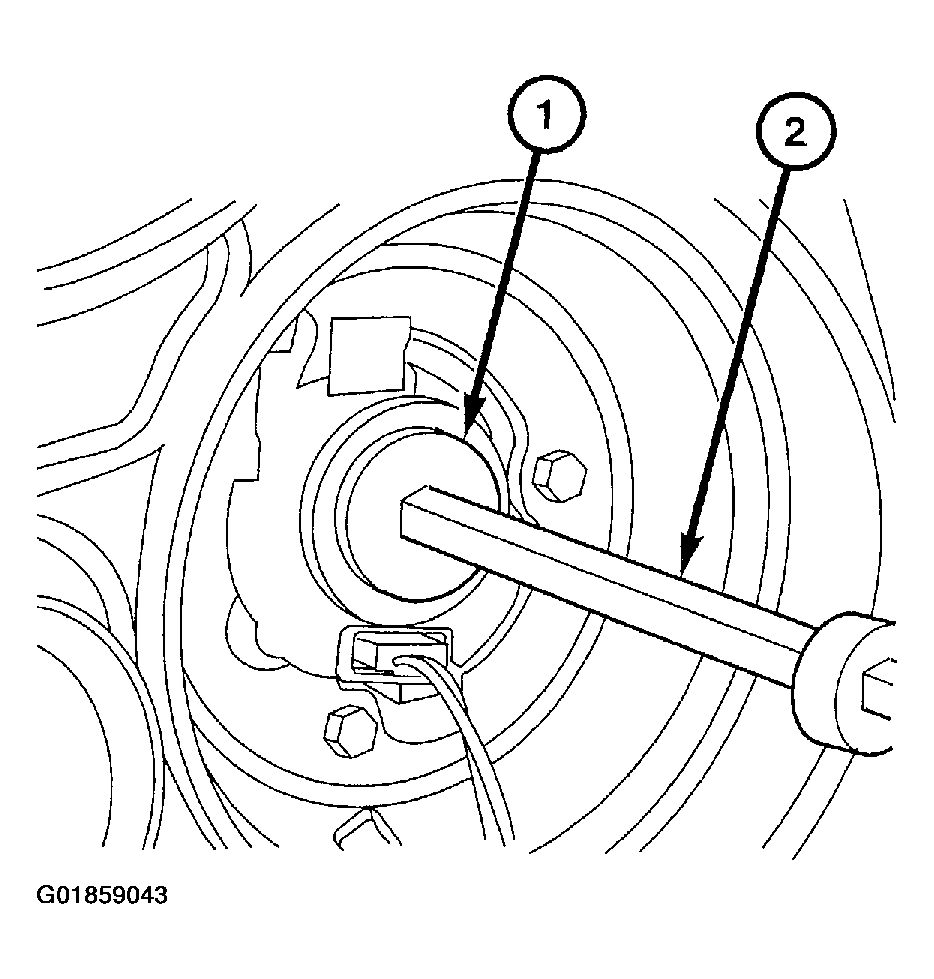

12. Install the steering wheel bolt (1). See STEERING WHEEL  .
    Fig 8: Installing Steering Wheel Bolt

    Courtesy of DAIMLERCHRYSLER CORP.

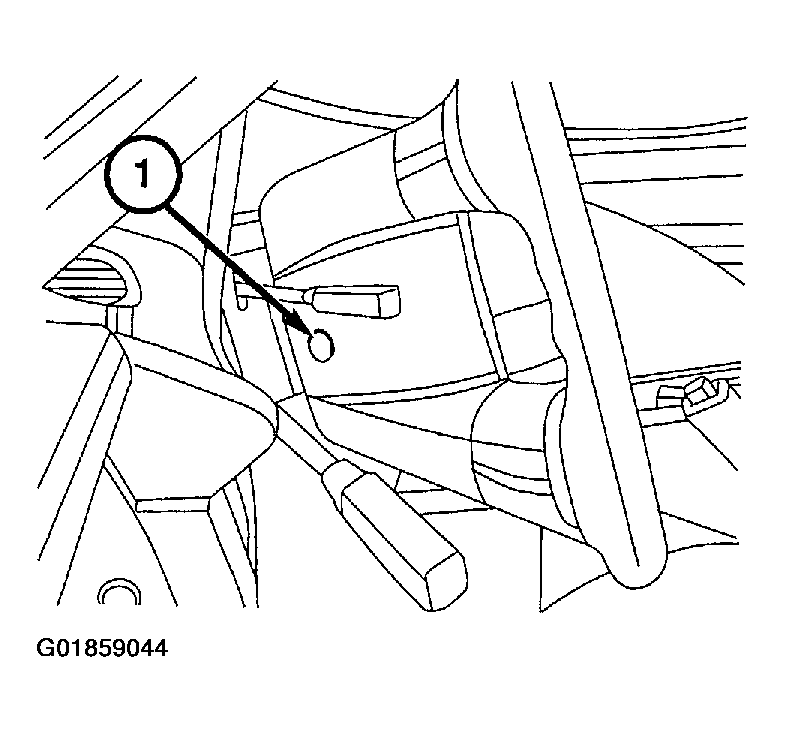

13. Install the driver airbag screws (1). See AIR BAG RESTRAINT SYSTEMS article.
    Fig 9: Installing Driver Airbag Screws

    Courtesy of DAIMLERCHRYSLER CORP.

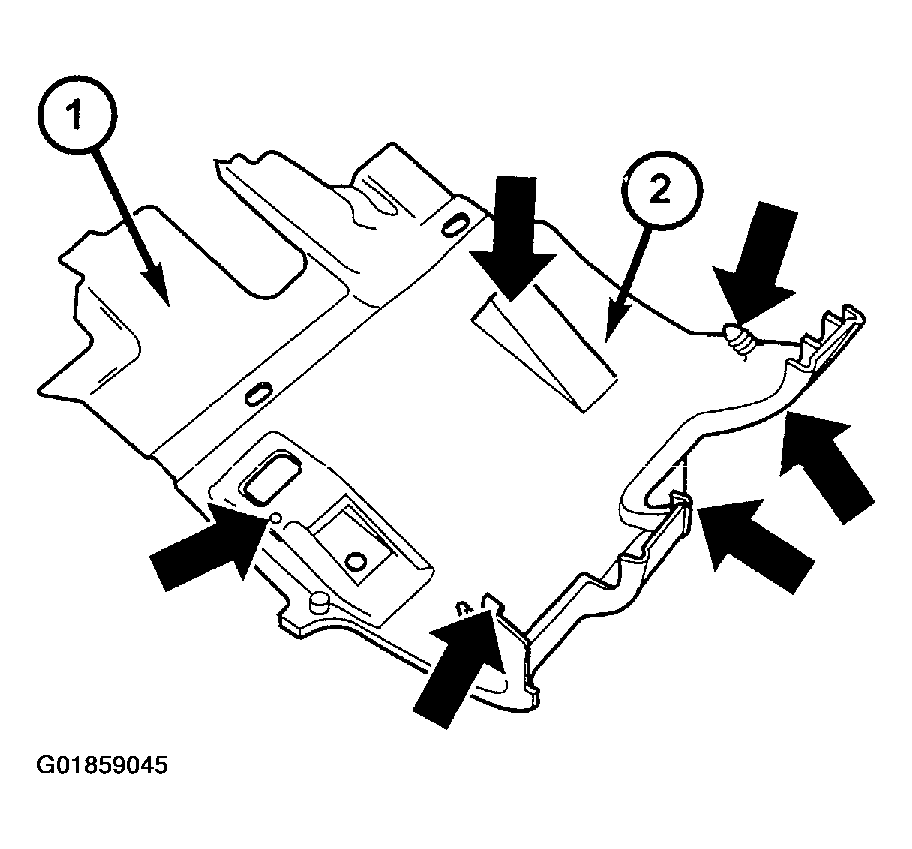

14. Install the left lower instrument panel (2) under the steering column. See BODY article.
    Fig 10: Installing Left Lower Instrument Panel Under Steering Column

    Courtesy of DAIMLERCHRYSLER CORP.
15. Connect the negative battery cable.
