Ignition Lock Cable: Installation

Install the ignition lock cable (1) to the ignition/starter switch by sliding it into the retaining slot until the tabs click.

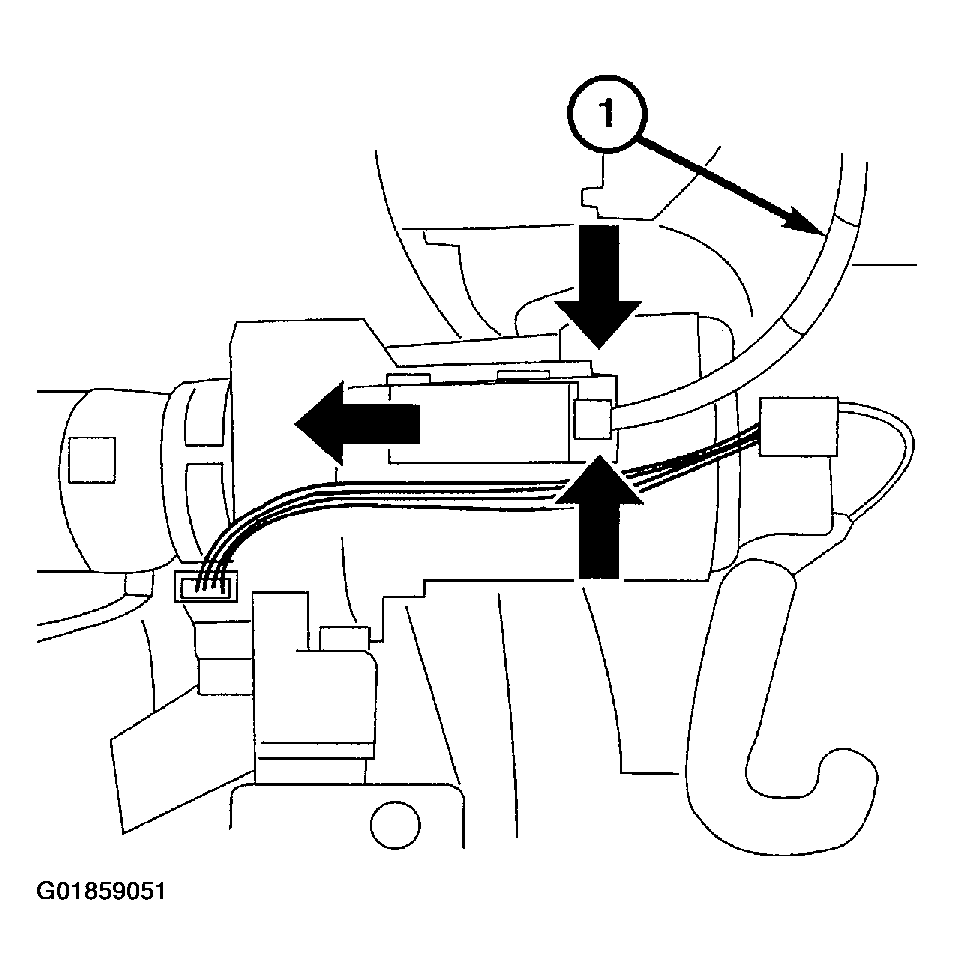

Fig 1: Installing Ignition Lock Cable To Ignition/Starter Switch
Courtesy of DAIMLERCHRYSLER CORP.
Install the ignition lock cable (1) to the shift lever assembly by inserting it into the mounting hole and then turning it 90° to the right.

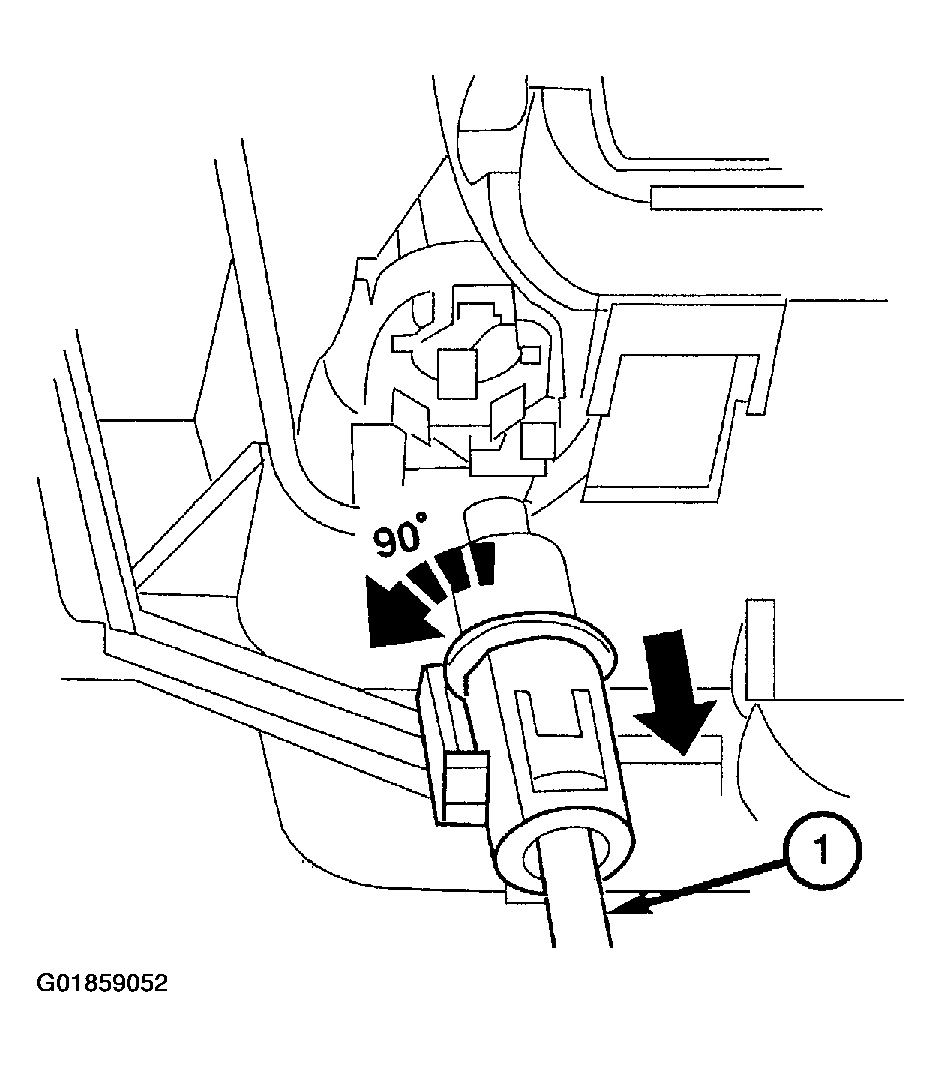

Fig 2: Installing Ignition Lock Cable To Shift Lever Assembly
Courtesy of DAIMLERCHRYSLER CORP.
Turn the ignition switch to the off/lock position. It should only be possible to move the shift lever out of the Park position when the ignition switch is in the on/run position and the brake pedal is depressed. It should only be possible to remove the ignition key when the shift lever is in the Park position and the ignition switch is in the off/lock position.
Install the lower instrument panel (2). See BODY article.

Fig 3: Installing Lower Instrument Panel
Courtesy of DAIMLERCHRYSLER CORP.
Install the ash tray (2) in the front center console.

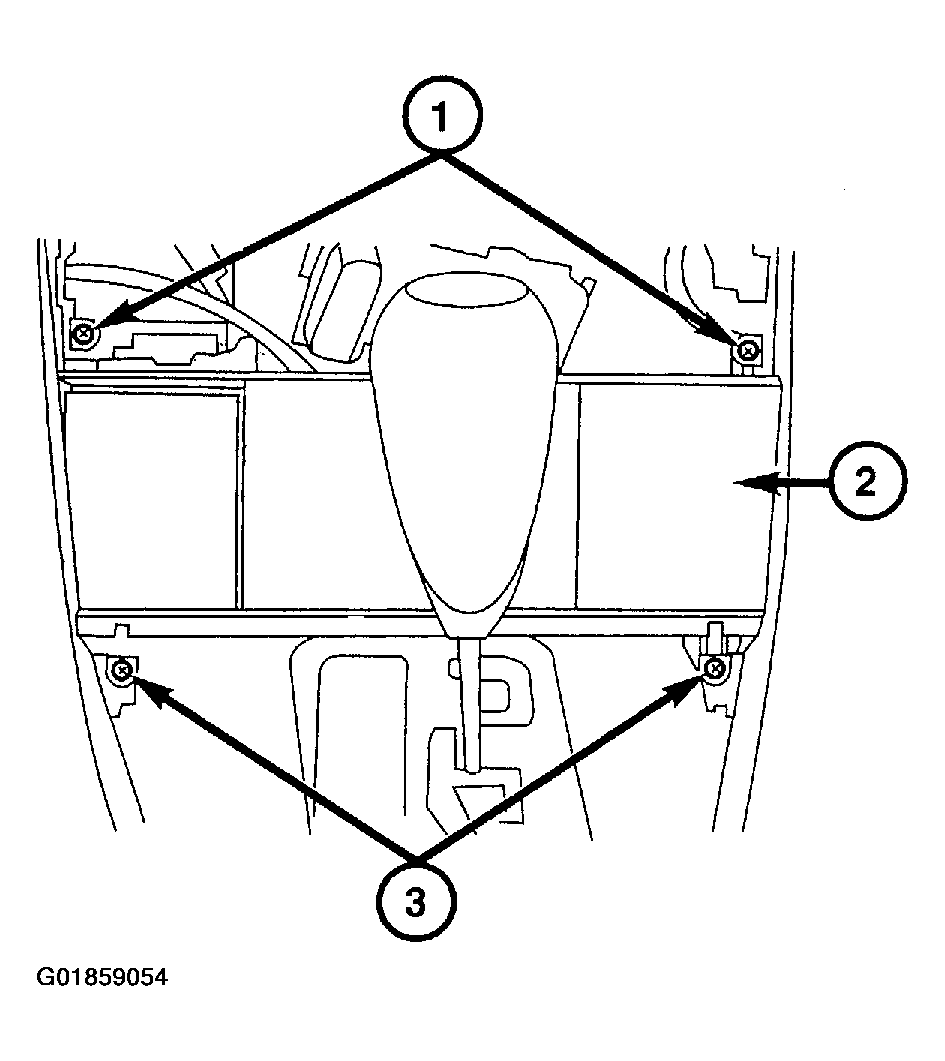

Fig 4: Installing Ashtray
Courtesy of DAIMLERCHRYSLER CORP.
Install the shifter cover (1). See BODY article.

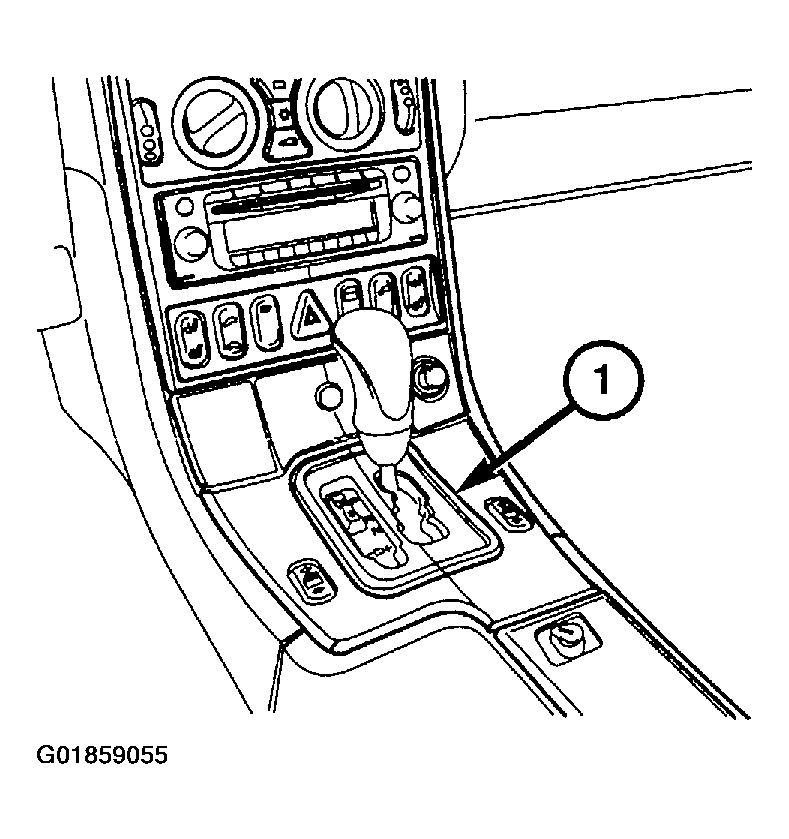

Fig 5: Installing Shifter Cover
Courtesy of DAIMLERCHRYSLER CORP.
