Ignition Switch: Installation

  1. Install the warning buzzer contact switch (8).
    2. CAUTION: The steering lock and lock cylinder can only be fitted in lock cylinder position "1". Never turn the steering lock when the ignition/starter switch is not fitted.
  2. Install the washer (3) and the parking lock valve (4).
    3. NOTE: The ignition switch must not be turned out of position "1" when the ignition/starter switch is not fitted, otherwise the steering lock is locked permanently.
  3. Install the ignition switch (2).
  4. Install the clamp (9), press in locking pin to install the steering lock (6) to the steering column.
  5. Install the parking lock interlock cable (7).
  6. Install the connector from the ignition/starter switch (1).
  7. Install the connector from the warning buzzer contact (10).

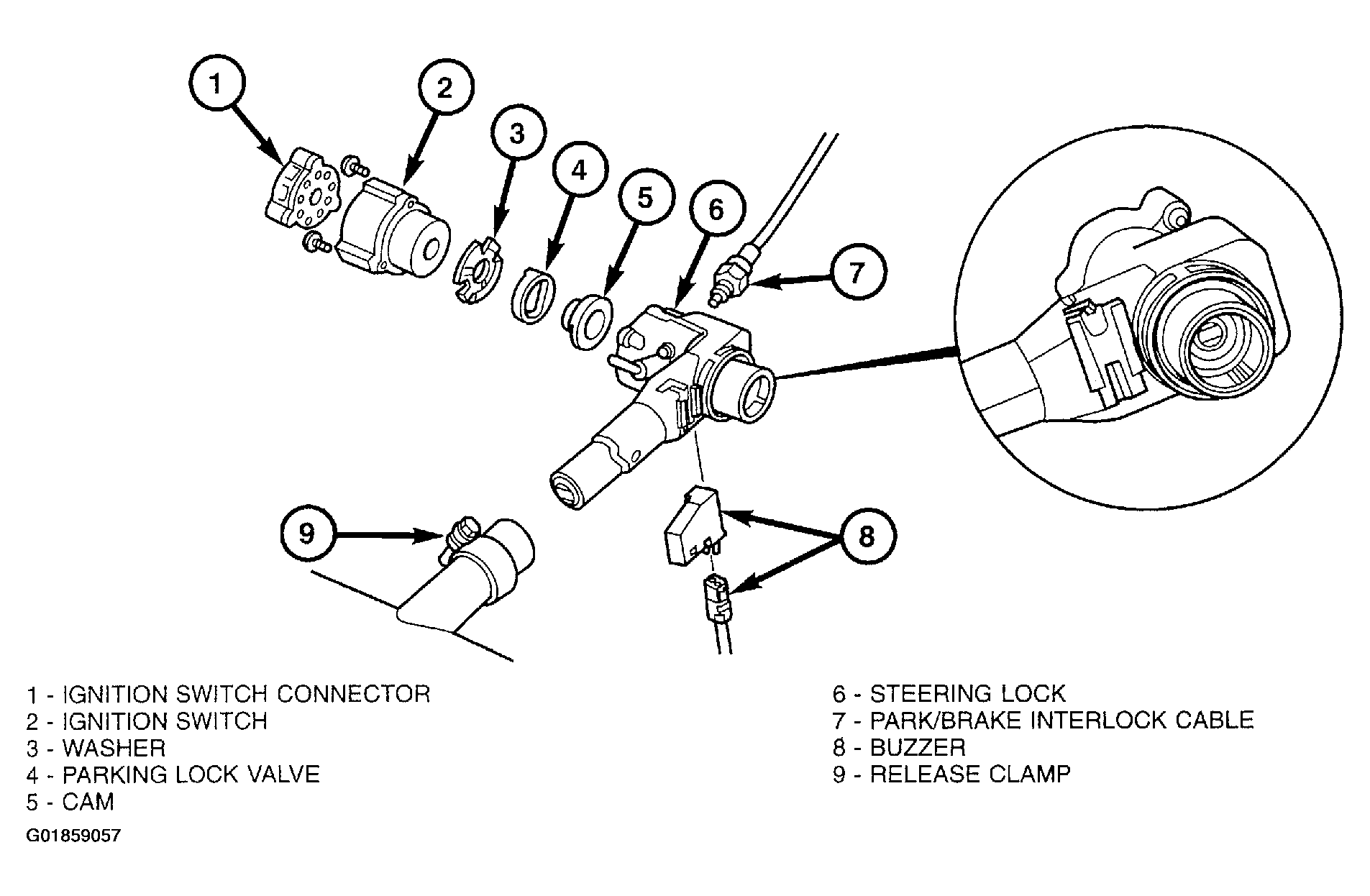

    Fig 1: Installing Ignition Switch
    G01859057Courtesy of DAIMLERCHRYSLER CORP.
  8. Install the key cylinder. See KEY/LOCK CYLINDER  .
  9. Install the transponder coil.
  10. Install the instrument cluster. See INSTRUMENT CLUSTER article.
  11. Install the lower instrument panel cover. See BODY article.
