Body Control Module: Installation

  1. Connect the electrical connectors to the body control module (6) and push the metal body control module connector lock down to lock the connector assembly. Then, connect the windshield wiper electrical connector to the body control module and slide the grey windshield wiper connector lock to the left to lock it.

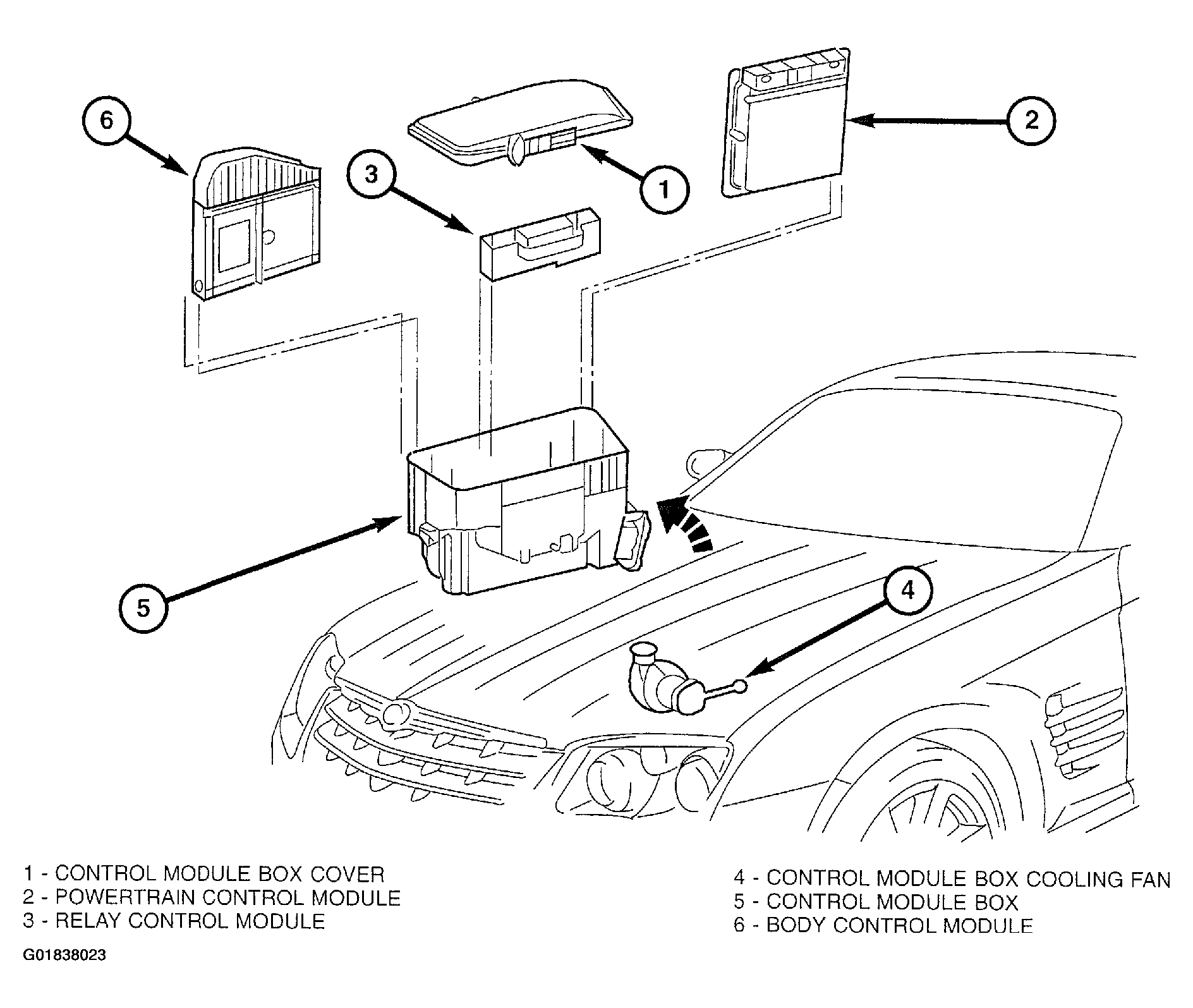

    Fig 1: Installing BCM
    G01838023Courtesy of DAIMLERCHRYSLER CORP.
  2. Install body control module into the control module box (5).
  3. Install the plastic control module box cover (1) and slide the clips rearward to lock the cover.
  4. Connect the negative battery cable.
