Powertrain Control Module: Installation

  1. Connect the electrical connectors to the powertrain control module (2).
  2. Install the powertrain control module into the control module box (5).
  3. Install the plastic control module box cover (1) and slide the clips rearward to lock the cover.
  4. Connect the negative battery cable.

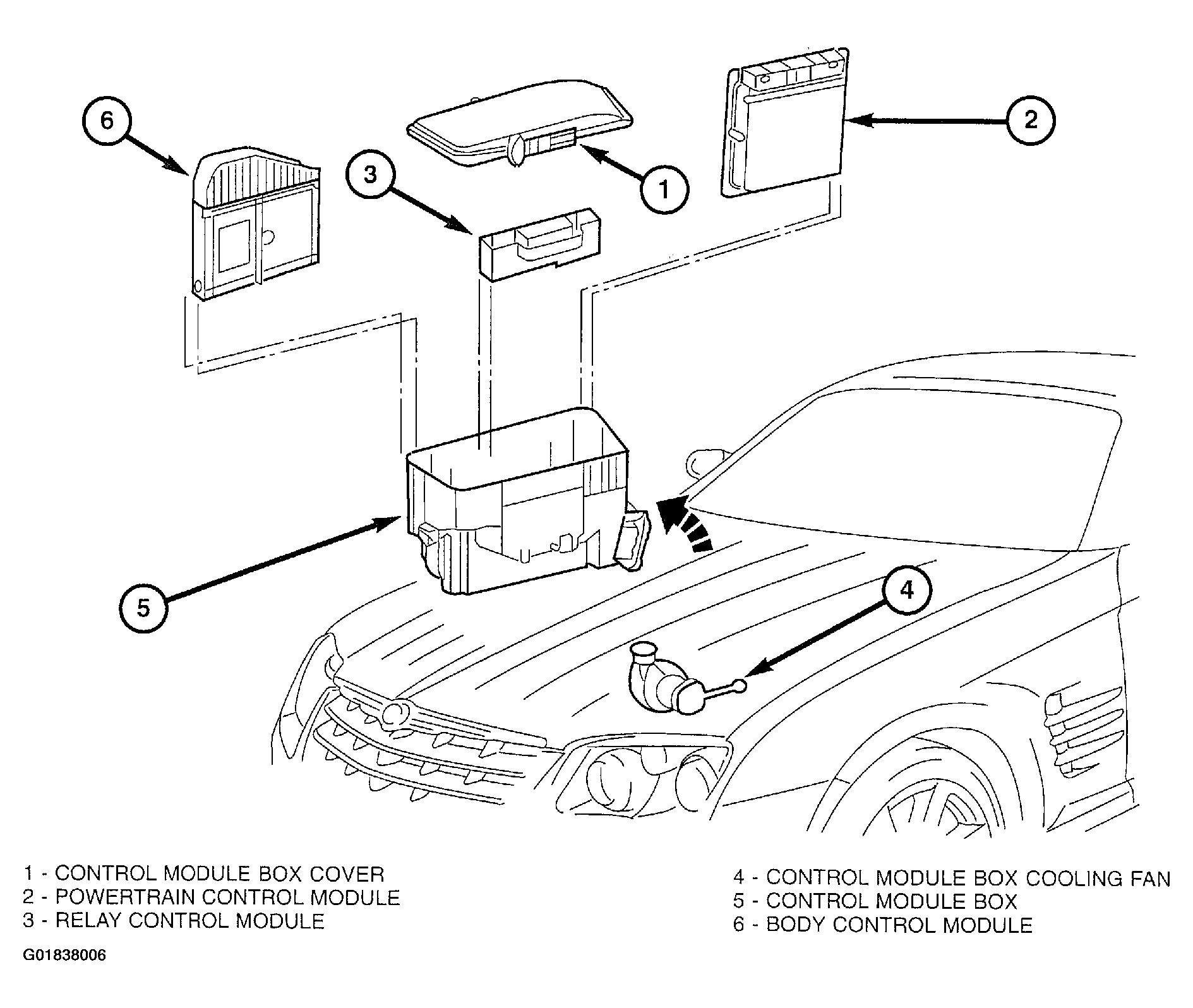

    Fig 1: Installing PCM
    G01838006Courtesy of DAIMLERCHRYSLER CORP.
