Powertrain Control Module: Removal

  1. Disconnect the negative battery cable.
  2. Slide the clips forward to remove the plastic control module box cover (1).
  3. Holding the metal powertrain control module retaining clip back, pull the powertrain control module (2) up and out of the control module box (5).
  4. Disconnect the electrical connectors and remove the powertrain control module (2).

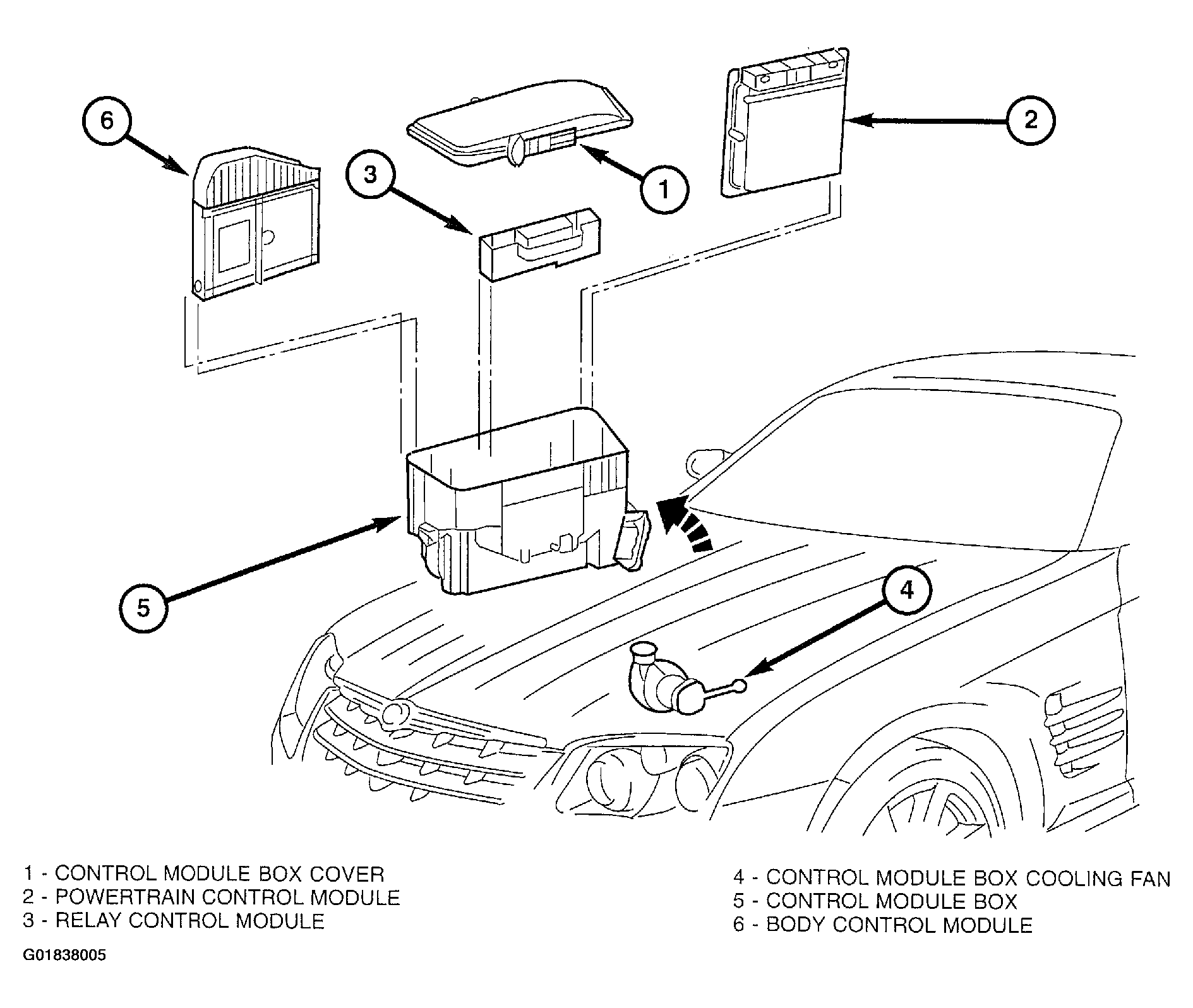

    Fig 1: Removing PCM
    G01838005Courtesy of DAIMLERCHRYSLER CORP.
