Transmission Control Module: Installation

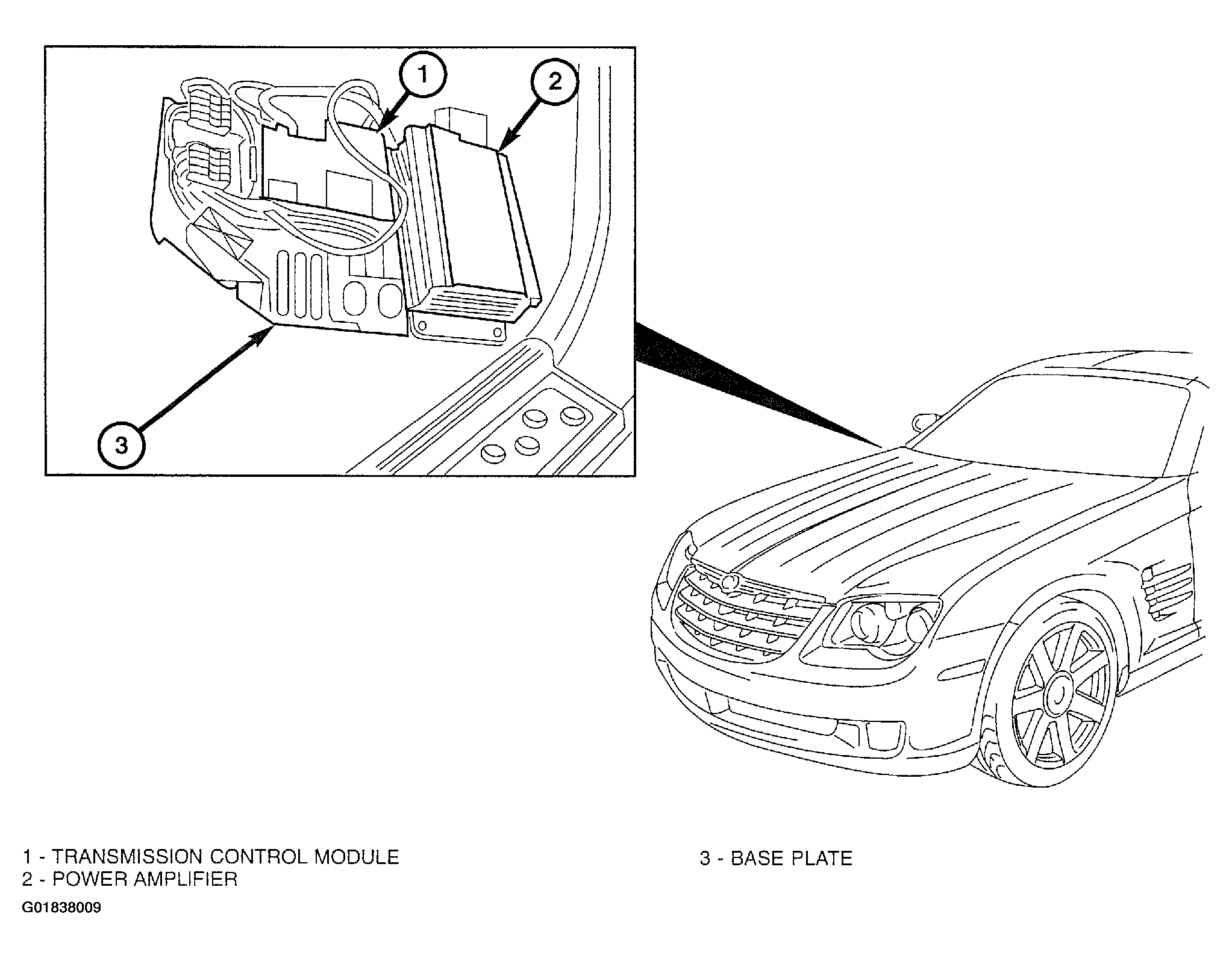

- Connect the electrical connectors to the transmission control module (1).
- Install the screws holding the transmission control module (1) to the base plate (3).
- Turn the base plate (3) and realign it with the mounting studs on the vehicle floor.
- Install the plastic nuts and secure the base plate (3) to the passenger side lower dash panel.
- Push the carpet in the front part of the passenger footwell up into its original position and install the passenger floor mat.
- Connect the negative battery cable.
NOTE:
Be sure not to pinch or cause interference with the wiring harnesses while locating the base plate to the vehicle floor studs.
