Sentry Key Remote Entry Module: Installation: Relay

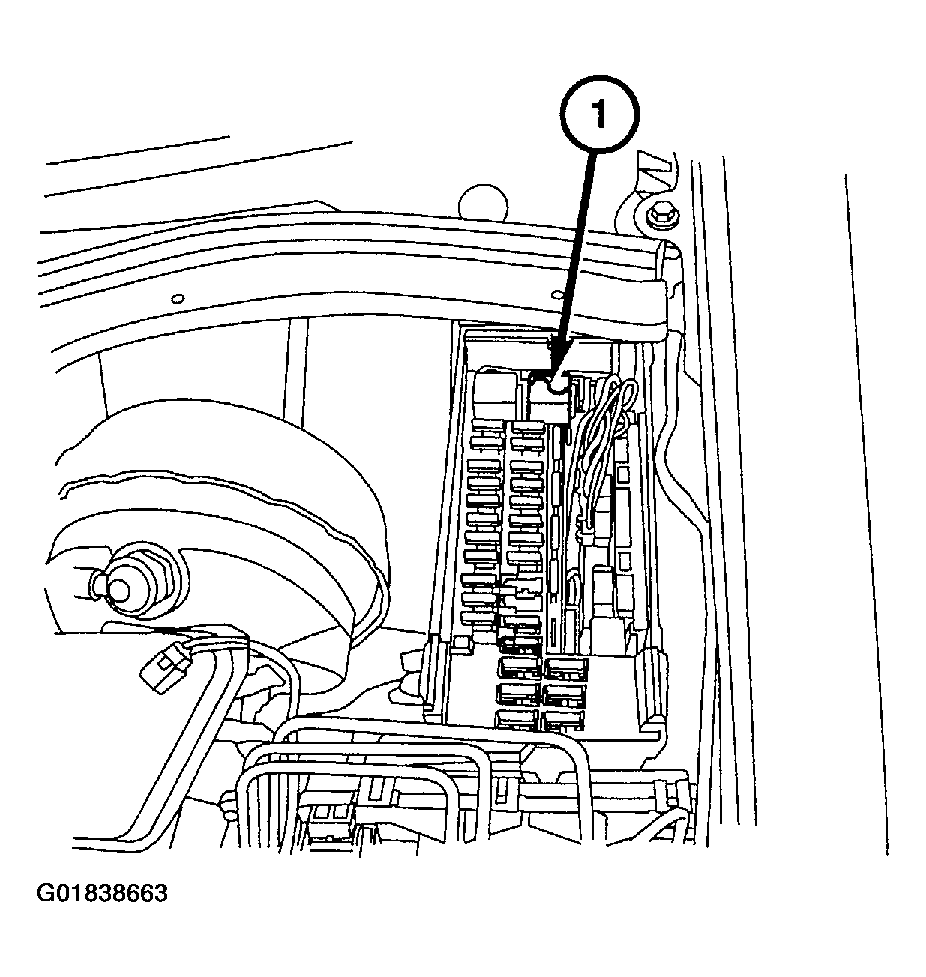

Install the remote keyless entry relay (1).

Fig 1: Installing Remote Keyless Entry Relay
Courtesy of DAIMLERCHRYSLER CORP.

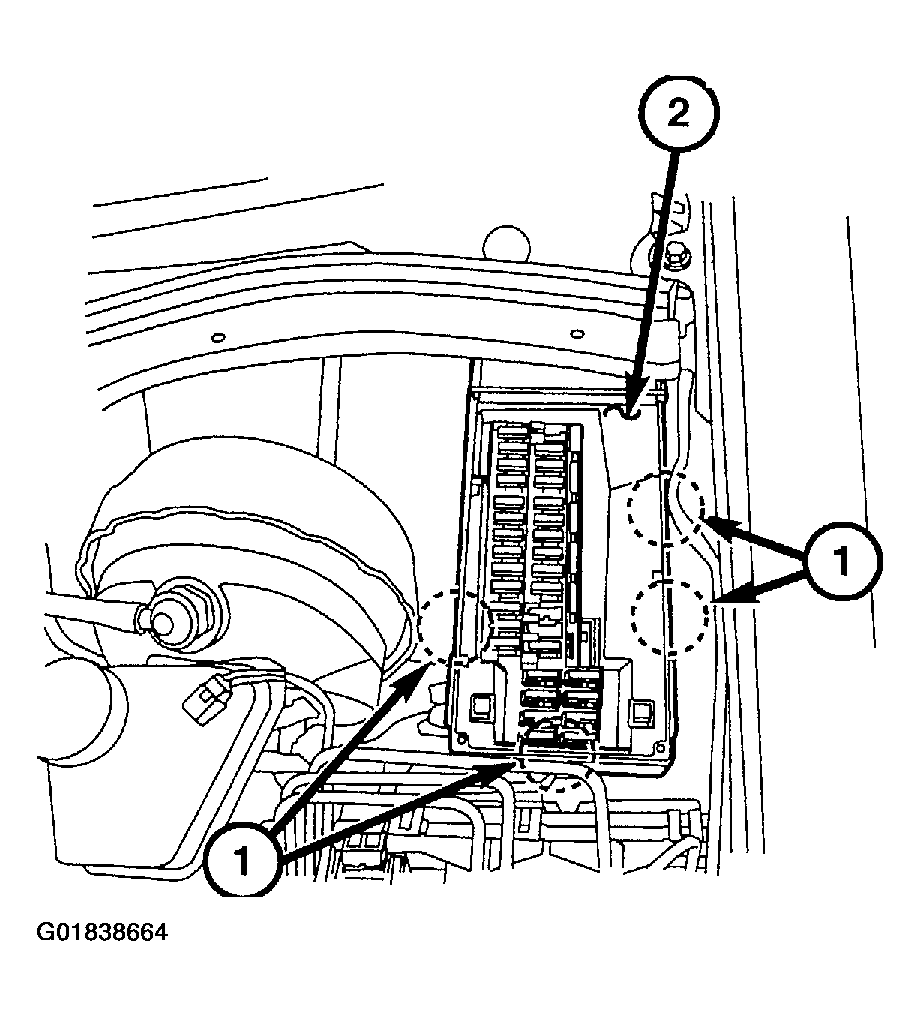

Install the underhood accessory fuse block cover panel (2) and secure it by snapping the retention tabs (1) into place.

Fig 2: Installing Underhood Accessory Fuse Block Cover Panel & Snapping Retention Tabs Into Place
Courtesy of DAIMLERCHRYSLER CORP.

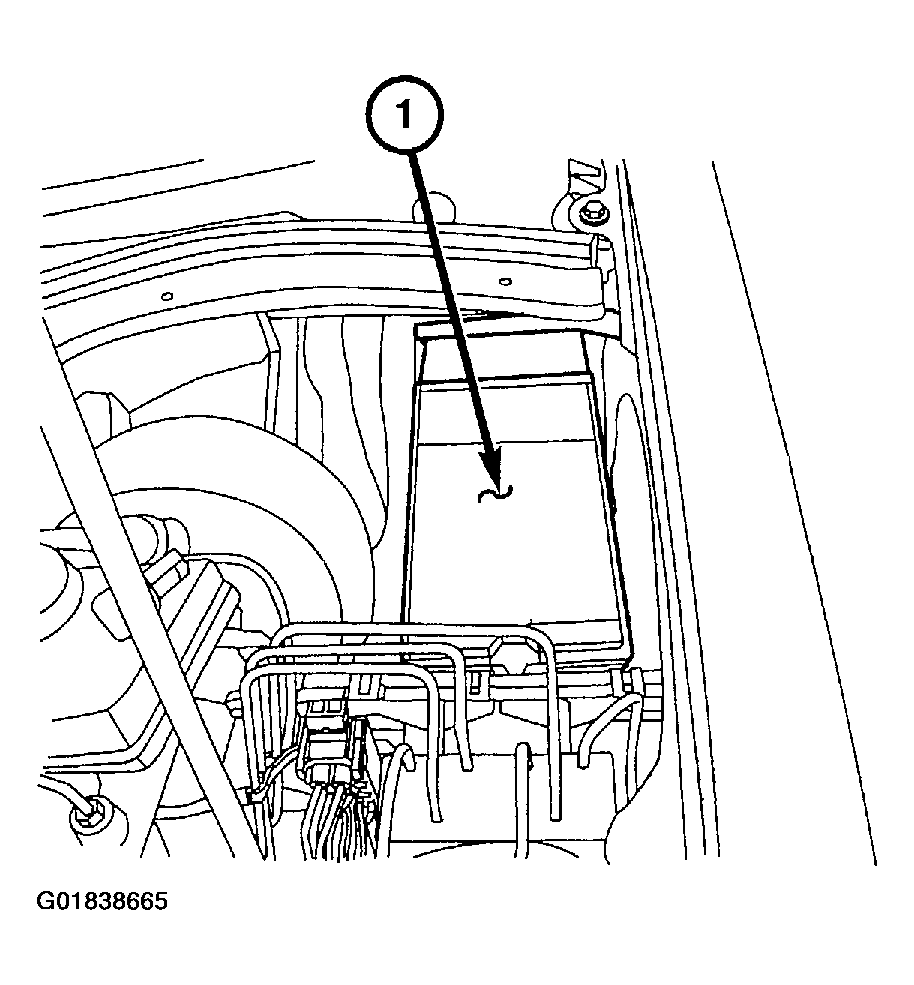

Install the underhood accessory fuse block lid (1).

Fig 3: Installing Underhood Accessory Fuse Block Lid
Courtesy of DAIMLERCHRYSLER CORP.
