Sentry Key Remote Entry Module: Removal: Relay

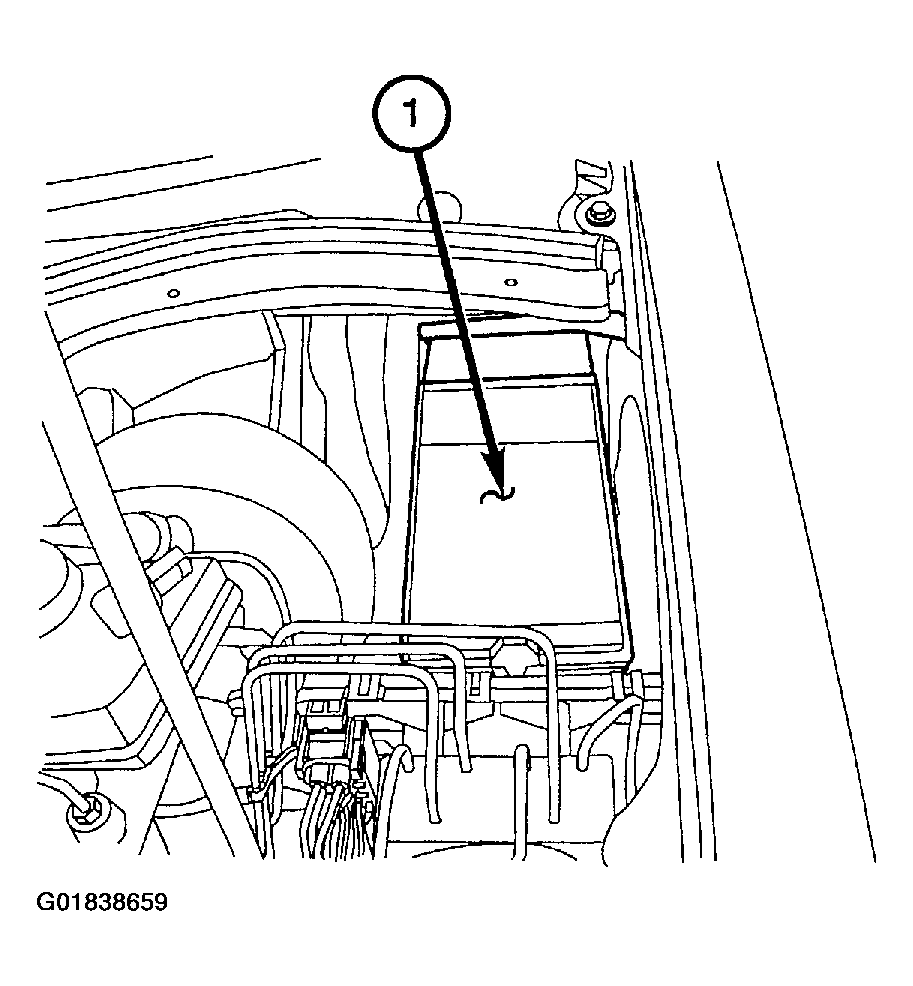

Remove the underhood accessory fuse block lid (1).

Fig 1: Removing Underhood Fuse Block Lid
Courtesy of DAIMLERCHRYSLER CORP.

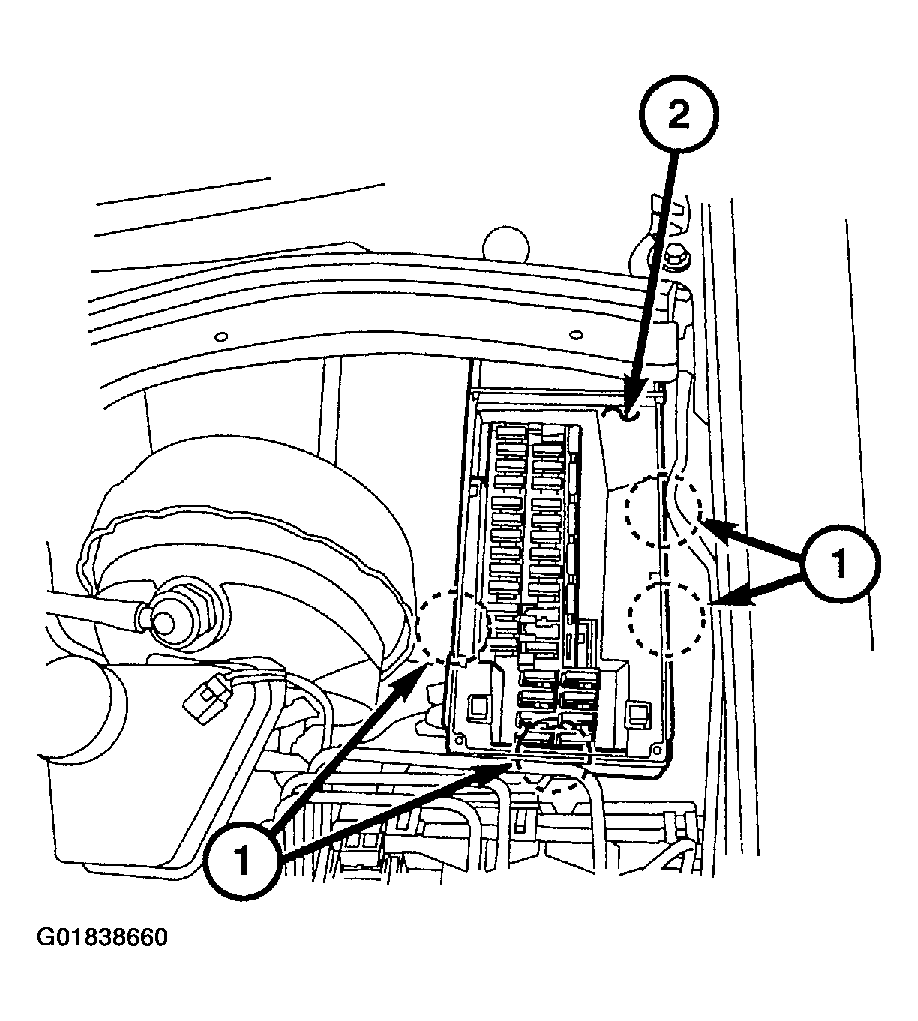

Carefully release the four tabs (1) to remove the underhood accessory fuse block cover panel (2).

Fig 2: Removing Underhood Accessory Fuse Block Cover Panel
Courtesy of DAIMLERCHRYSLER CORP.

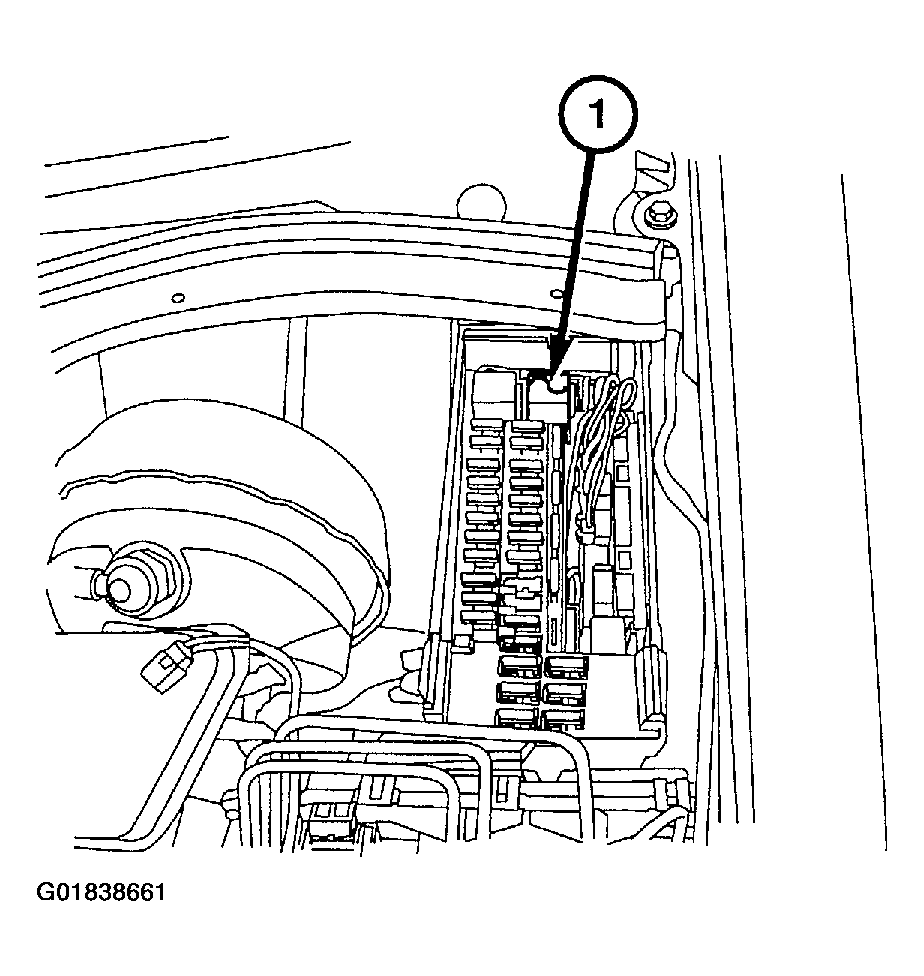

Remove the remote keyless entry relay (1).

Fig 3: Removing Remote Keyless Entry Relay
Courtesy of DAIMLERCHRYSLER CORP.
