Security System Module: Installation

  1. Install the central locking pump/security system module (3) into the trunk and connect the air lines (1) and the electrical connectors (2).

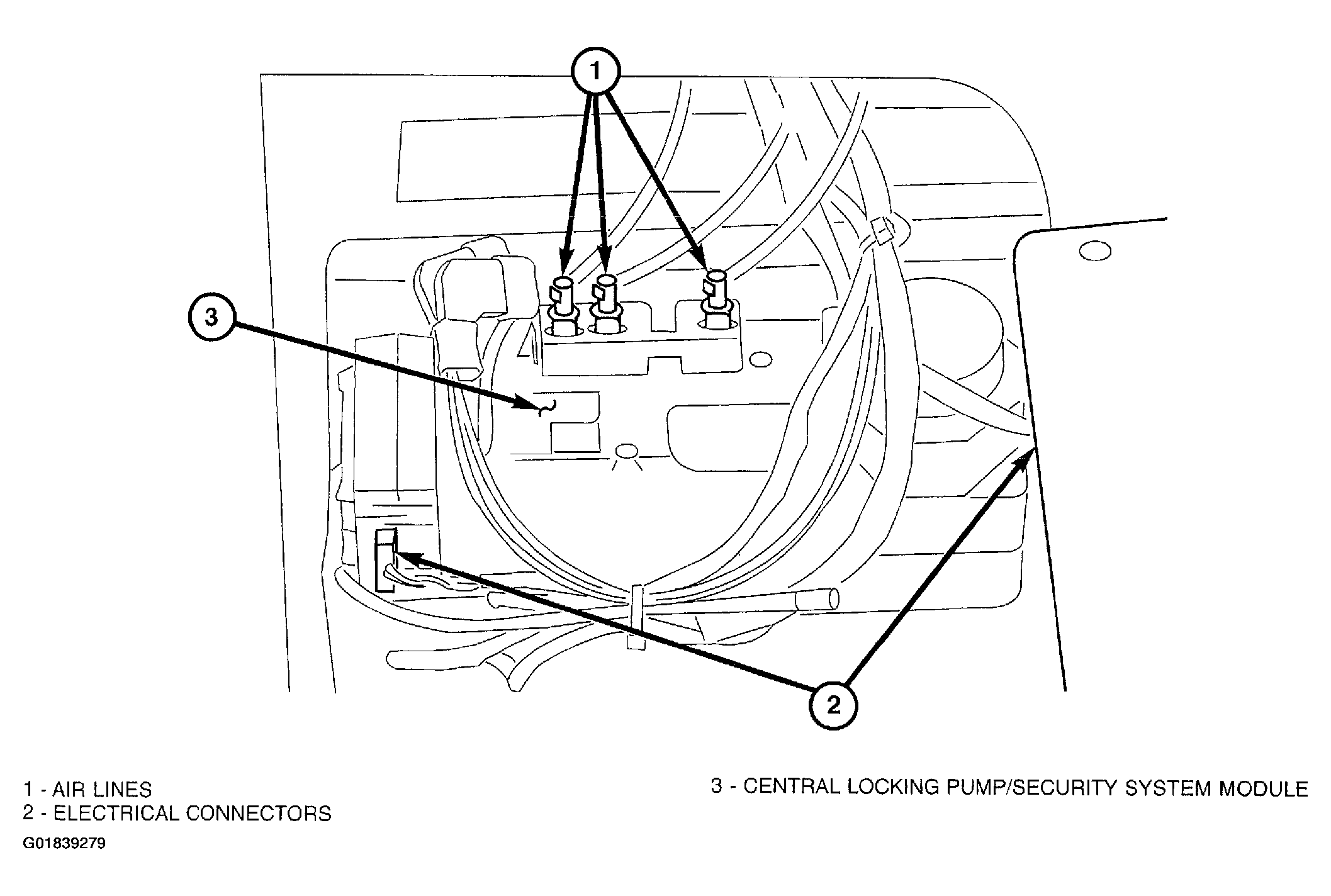

    Fig 1: Installing Security System Module
    G01839279Courtesy of DAIMLERCHRYSLER CORP.
  2. Install the sound deadening foam covering to the central locking pump/security system module.
  3. Install the vehicle jacking assembly into the trunk next to the central locking pump/security system module.
  4. Install the trunk floor covering.
  5. Connect the negative battery cable.
