Sentry Key Remote Entry Module

  1. Install the SKREEM to the base plate.
  2. Connect the 18-pin electrical connector and the 2-pin CAN bus connector (1) to the SKREEM.

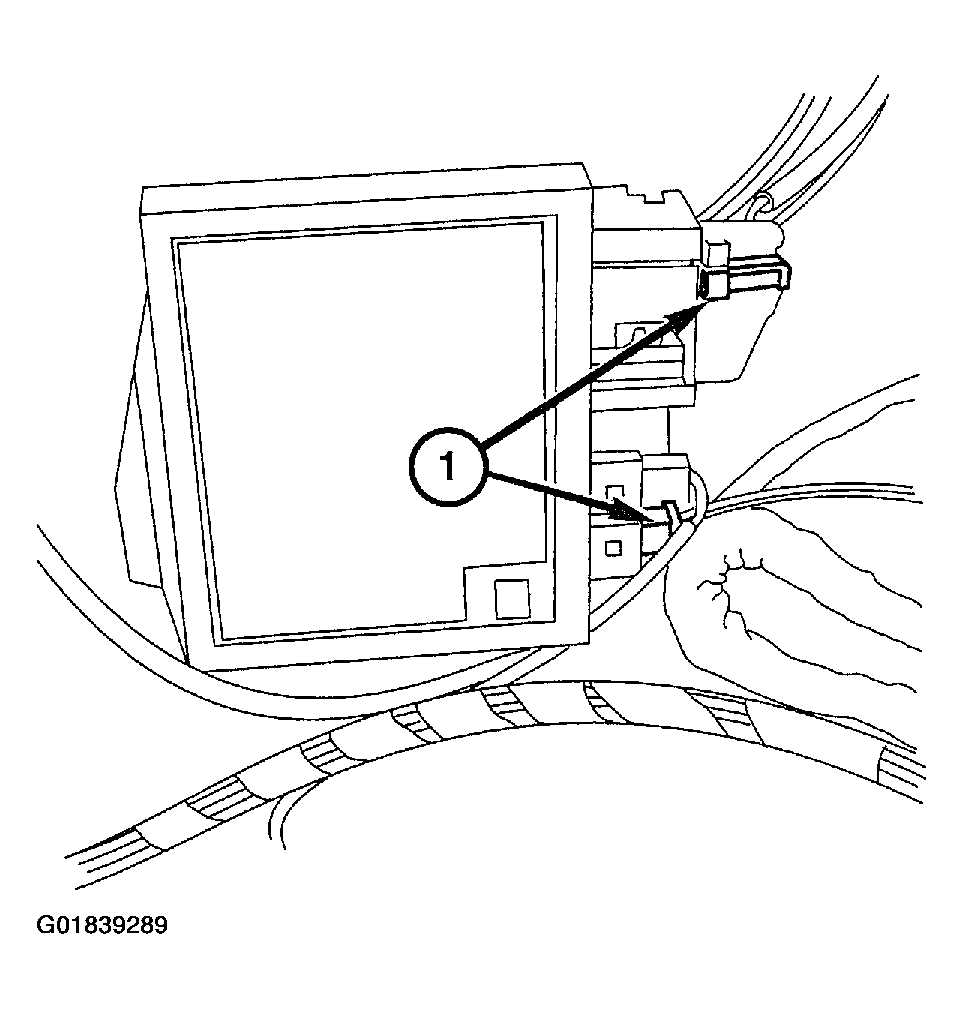

    Fig 1: Connecting 18-Pin Electrical Connector & 2-Pin CAN Bus Connector To SKREEM
    G01839289Courtesy of DAIMLERCHRYSLER CORP.
  3. Connect the 2-pin connector for the sentry key antenna ring.
  4. Install the instrument cluster. See INSTRUMENT CLUSTER article.
  5. Connect the negative battery cable.
