Circuit Diagram & Connector Identification

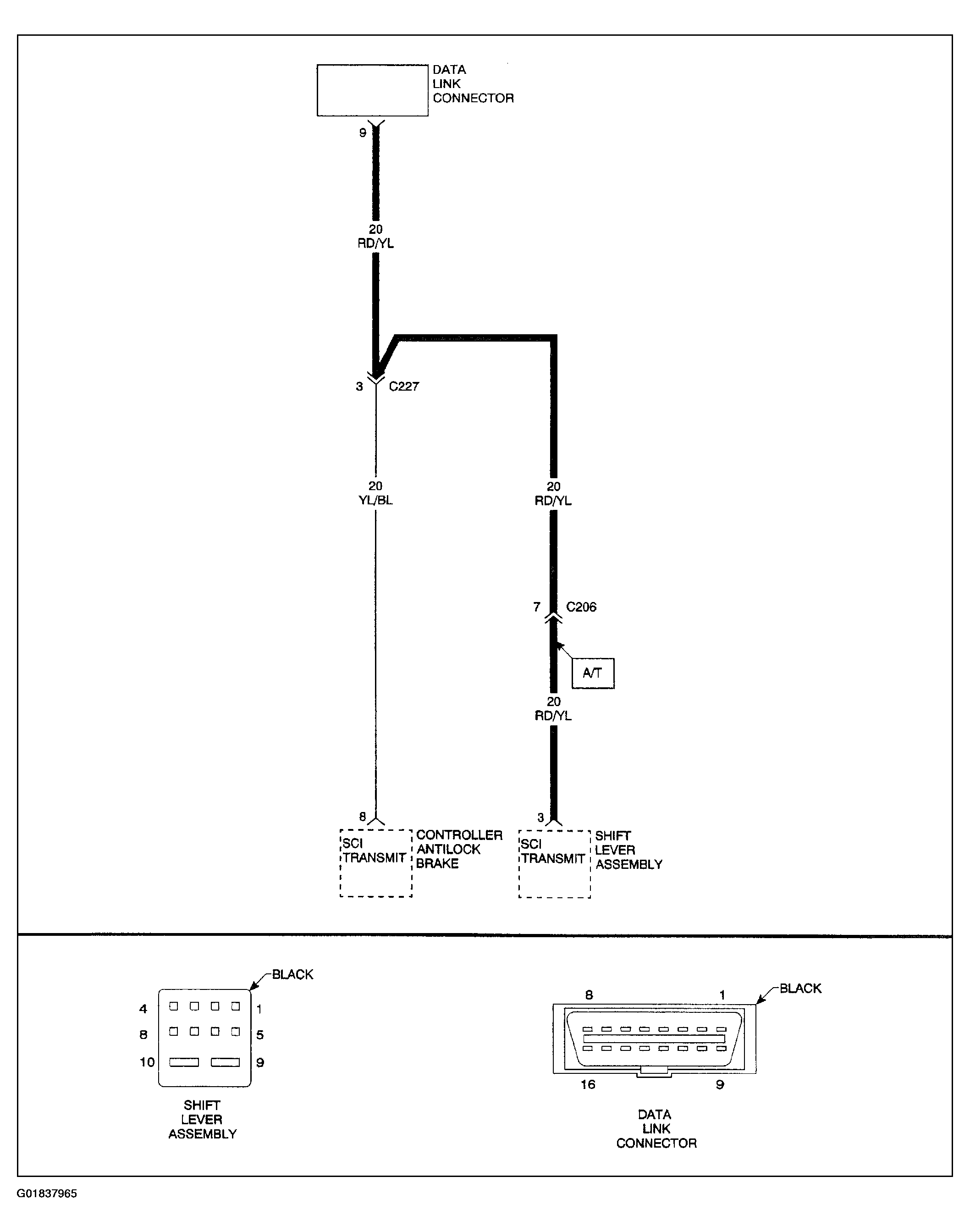

Fig 1: Identifying No Response From Shift Lever Assembly Circuit Diagram & Connector Identification
G01837965Courtesy of DAIMLERCHRYSLER CORP.
