Circuit Diagram & Connector Identification

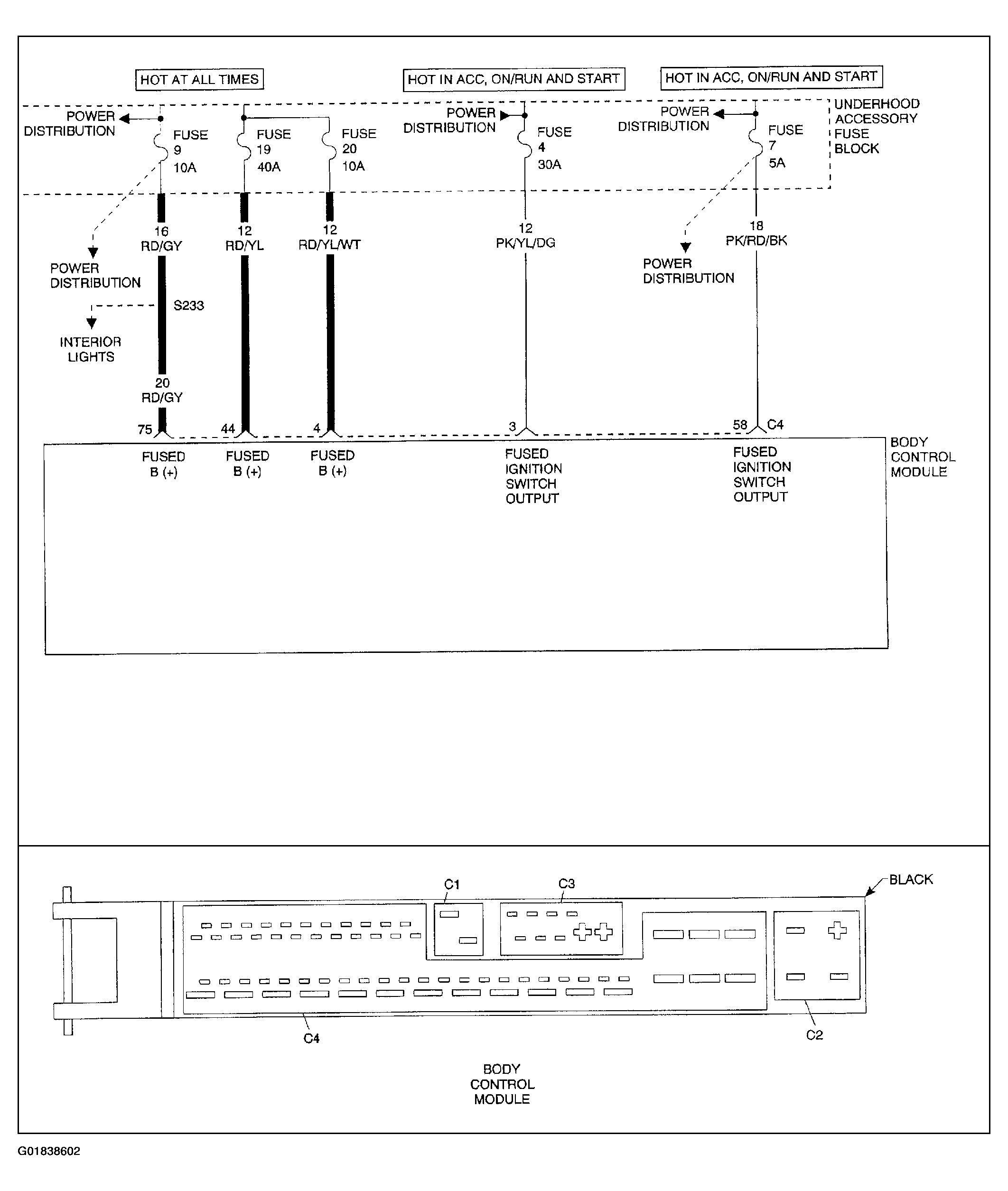

Fig 1: Identifying Body Control Module Internal Failure Circuit Diagram & Connector Identification
G01838602Courtesy of DAIMLERCHRYSLER CORP.
