1. Measure The Resistance Of The Can B Bus (+) Circuit

Turn the ignition off.

Disconnect the CLP/SSM harness connector.

Disconnect the BCM harness connector.

NOTE: Check connectors - Clean/repair as necessary.

Measure the resistance of the CAN B Bus (+) circuit from the CLP/SSM harness connector to the BCM harness connector.

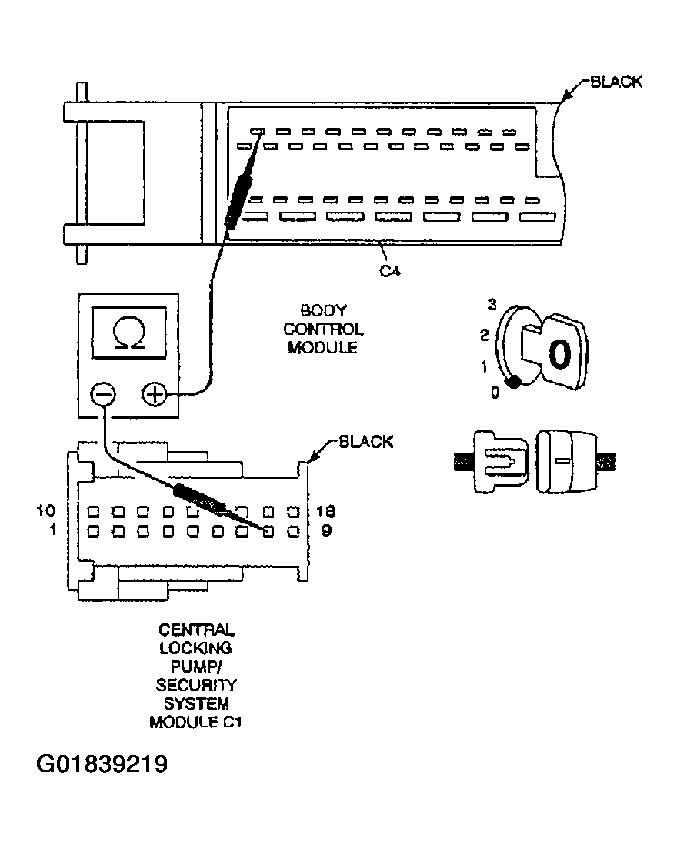

Fig 1: Measuring Resistance Of CAN Bus (+) Circuit
G01839219Courtesy of DAIMLERCHRYSLER CORP.

Is the resistance below 1.0 ohm?

  1. Yes  >> Go to 2
  2. No  >> Repair the CAN B Bus (+) circuit for an open.

    See VTSS VERIFICATION TEST  .
