Circuit Diagram & Connector Identification

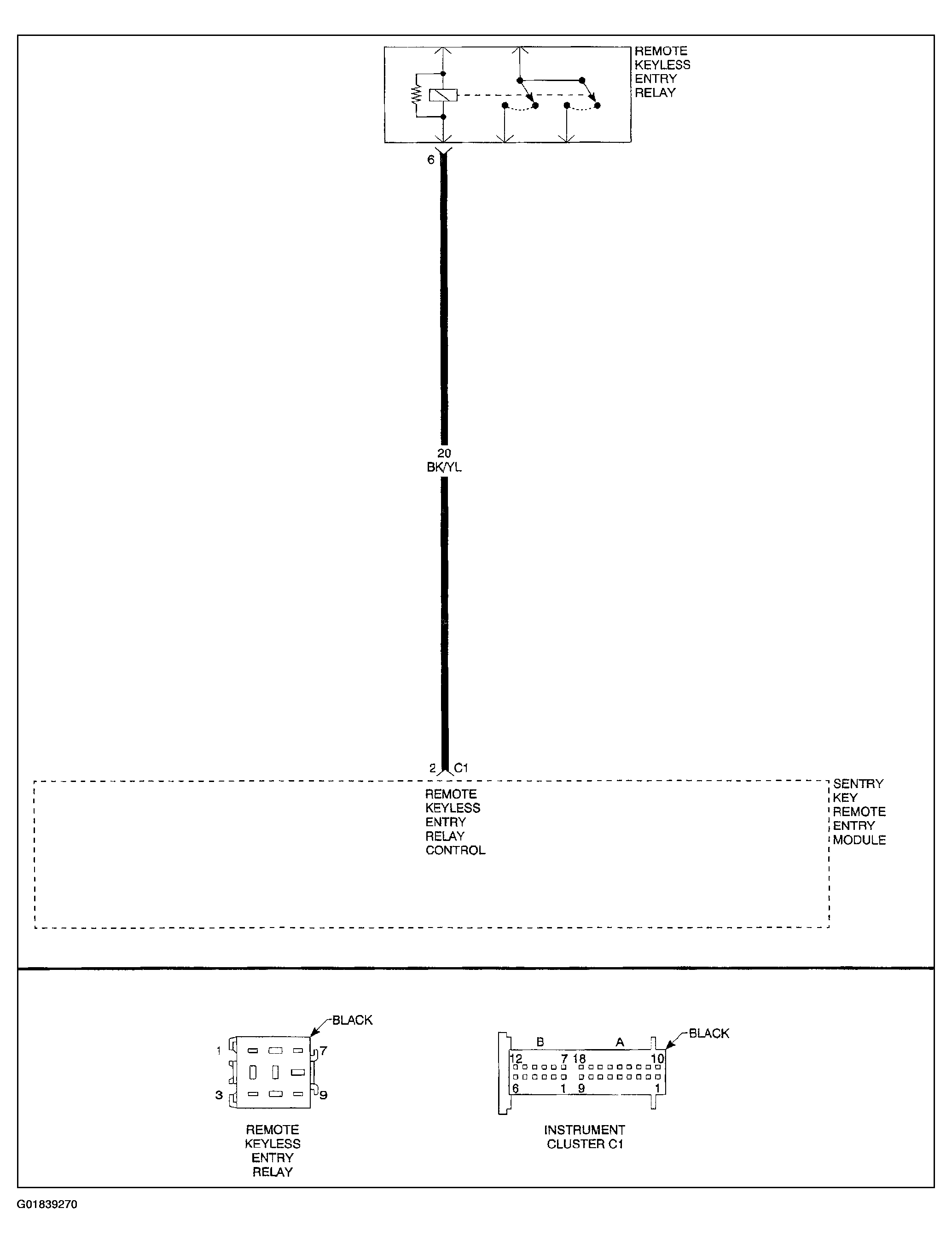

Fig 1: Identifying Remote Keyless Entry Relay Control Circuit Diagram & Connector Identification
G01839270Courtesy of DAIMLERCHRYSLER CORP.
