3. Measure The Resistance Of The Remote Keyless Entry Relay Control Circuit

Turn the ignition off.

Measure the resistance between ground and the Remote Keyless Entry Relay Control circuit at the Remote Keyless Entry Relay harness connector.

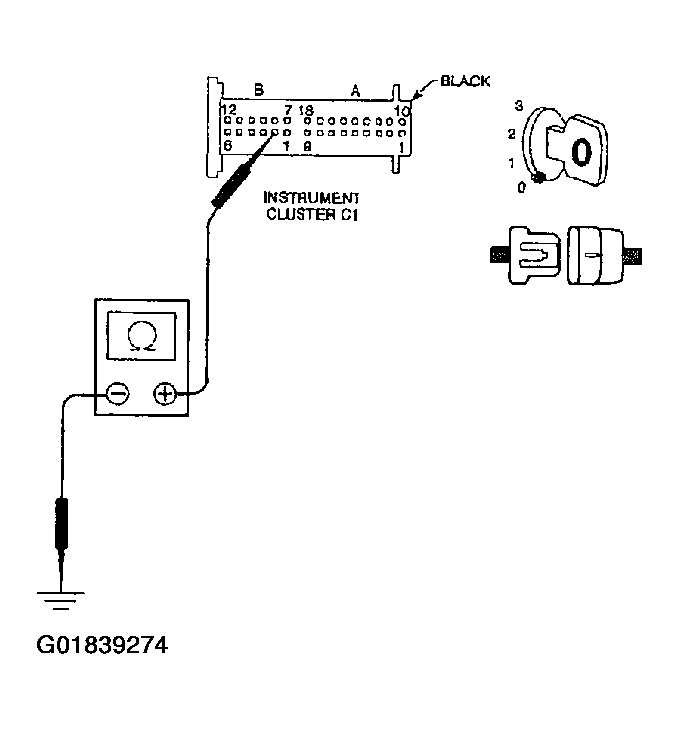

Fig 1: Measuring Resistance Between Ground & Remote Keyless Entry Relay Control Circuit

Courtesy of DAIMLERCHRYSLER CORP.

Is the resistance below 10K ohms?

1. Yes  >> Repair the Remote Keyless Entry Relay Control circuit for a short to ground.

   See SENTRY KEY VERIFICATION TEST  .

2. No  >> Replace the Remote Keyless Entry Relay.

   See SENTRY KEY VERIFICATION TEST  .
