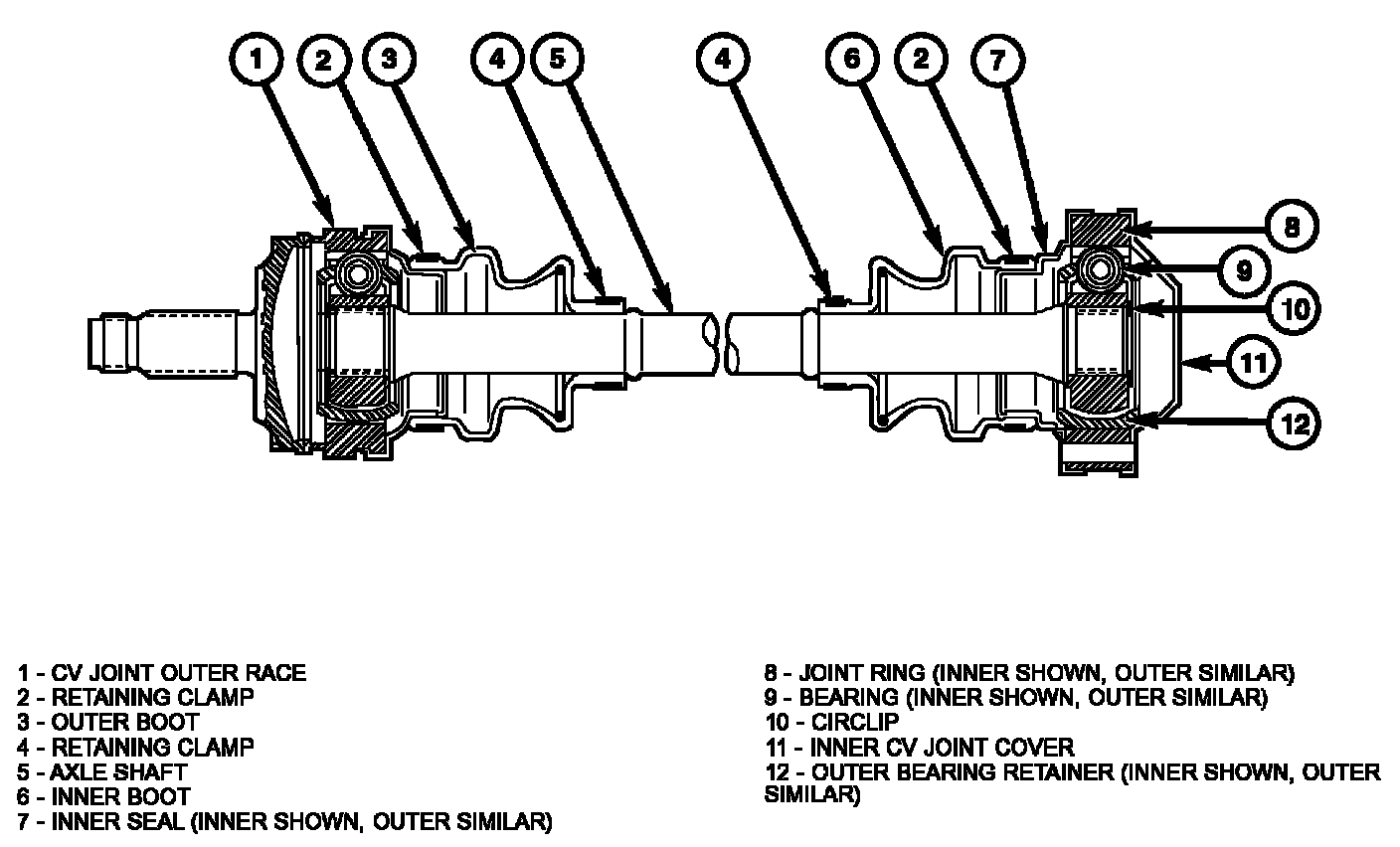

Axle Shaft Assembly

HALFSHAFTS

DESCRIPTION

Articulated halfshafts deliver power from the rear differential to the wheels through constant velocity (CV) joints that minimize vibration.
