Crankshaft Position Sensor: Service and Repair

REMOVAL
1. Disconnect the negative battery cable.




2. Remove the air cleaner housing.
3. Disconnect the crankshaft position sensor harness connector.

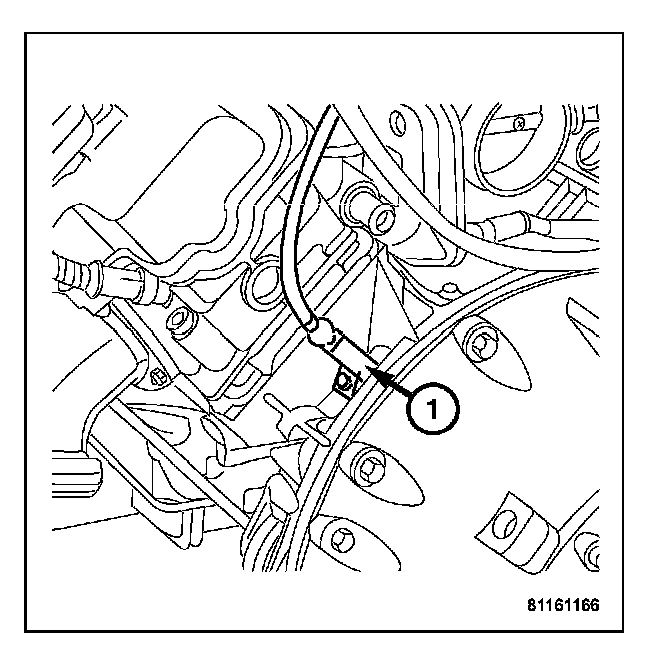

4. Remove the retaining bolt and the crankshaft position sensor (1).

INSTALLATION
1. Install the crankshaft position sensor to the engine tighten to 8 Nm (71 in. lbs.).
2. Connect the crankshaft position sensor harness connector.
3. Install the air cleaner housing.
4. Connect the negative battery cable.
