Radiator Cooling Fan Control Module: Service and Repair

REMOVAL





1. Disconnect the negative battery cable.

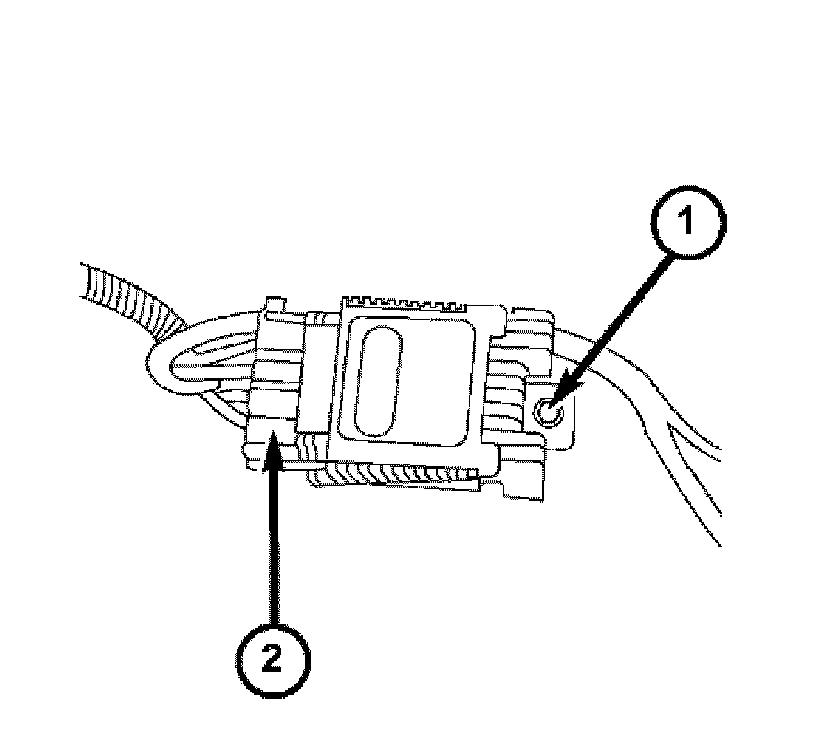

2. Disconnect the radiator fan control module harness connector (2).
3. Remove the retaining nuts at the top and bottom of the cooling fan module (1).
4. Remove the cooling fan module from the engine compartment.


INSTALLATION
1. Position the radiator fan control module on the inner fender well studs.
2. Install the upper and lower retaining nuts and tighten to 10 Nm (89 in. lbs.).
3. Connect the radiator fan control module harness connector.
4. Connect the negative battery cable.
