Home >> Chrysler >> 2004 >> Intrepid (CANADA) V6-3.5L >> Repair and Diagnosis >> Locations >> Splice Locations >> Figure 35

September 30: LEMON manuals is back up on a temporary server! Slowness is possible

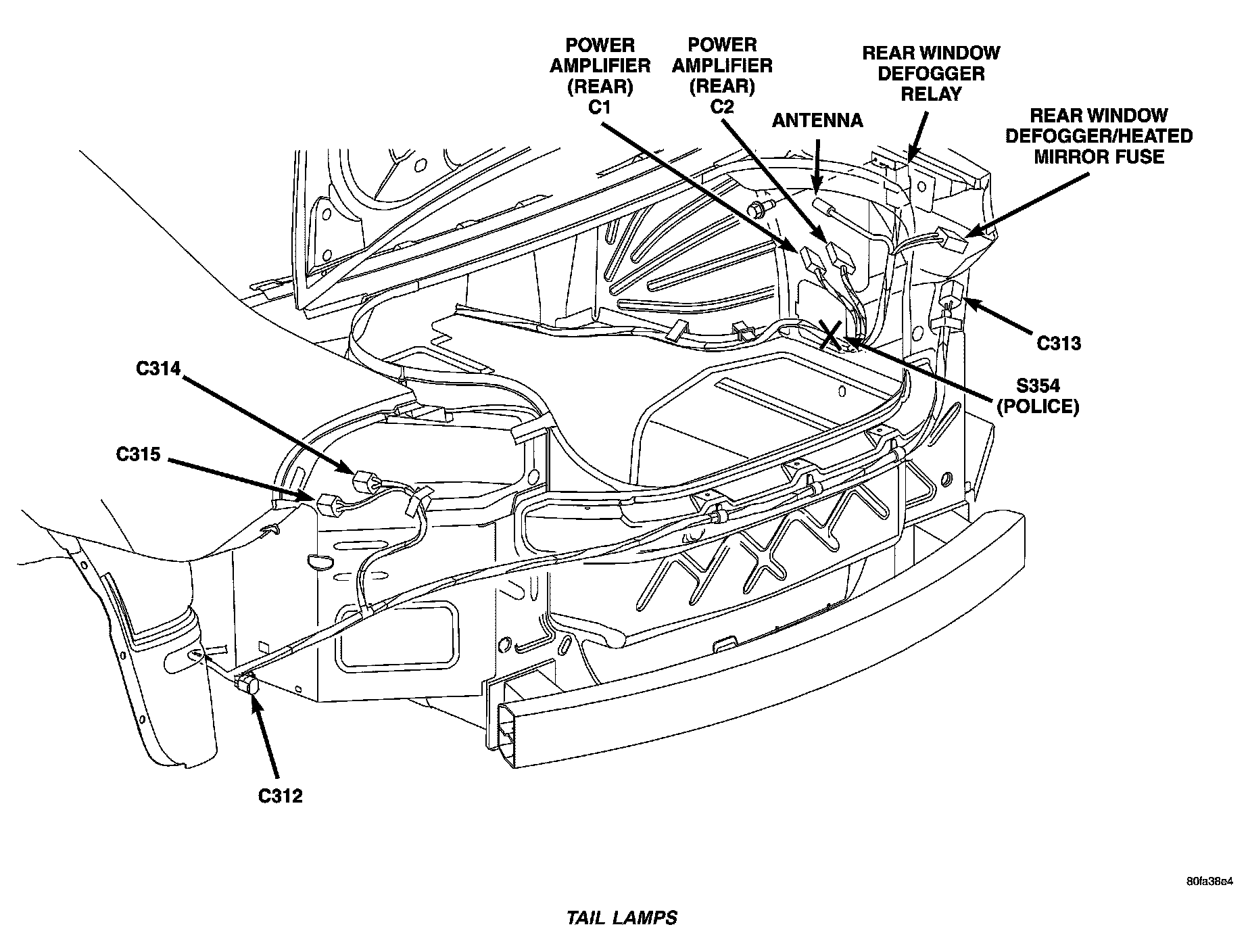

Figure 35

Tail Lamps:
