Standard Procedure - Module Lamp Replacement

  1. Remove the overhead console (Refer to REMOVAL - OVERHEAD CONSOLE  ).
  2. Using a flat blade screwdriver twist out socket/lamp (Fig 1 ).

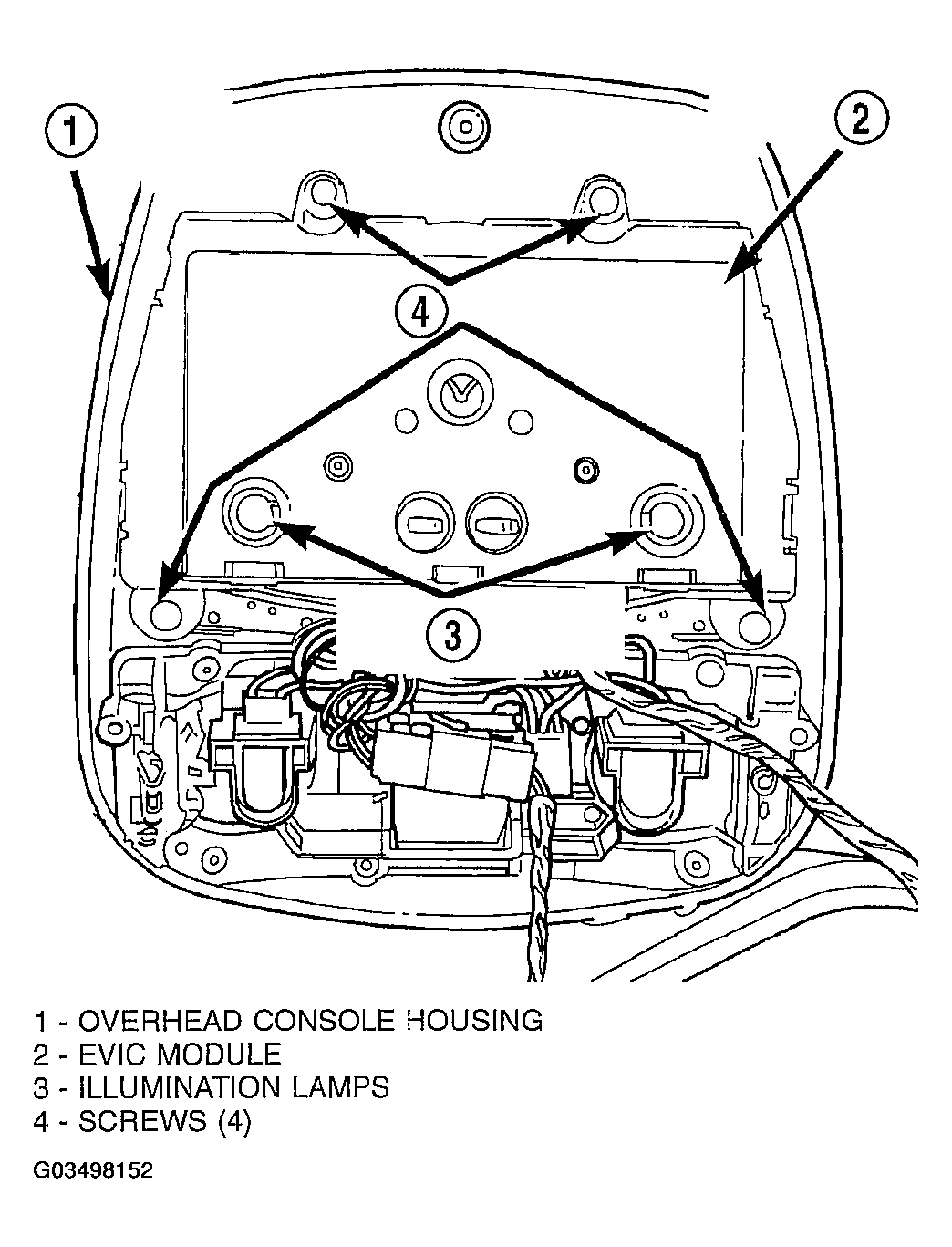

    Fig 1: Top of Overhead Console
    G03498152Courtesy of DAIMLERCHRYSLER CORP.
  3. Replace lamp(s) as necessary.
