Exhaust Manifold: Description

WARNING: This page is about a different variant/trim than selected.

Both manifolds are a log style made of ductile cast iron (Fig 1 ). The outlets are designed for V-Band clamp attachment of close coupled catalytic converters.

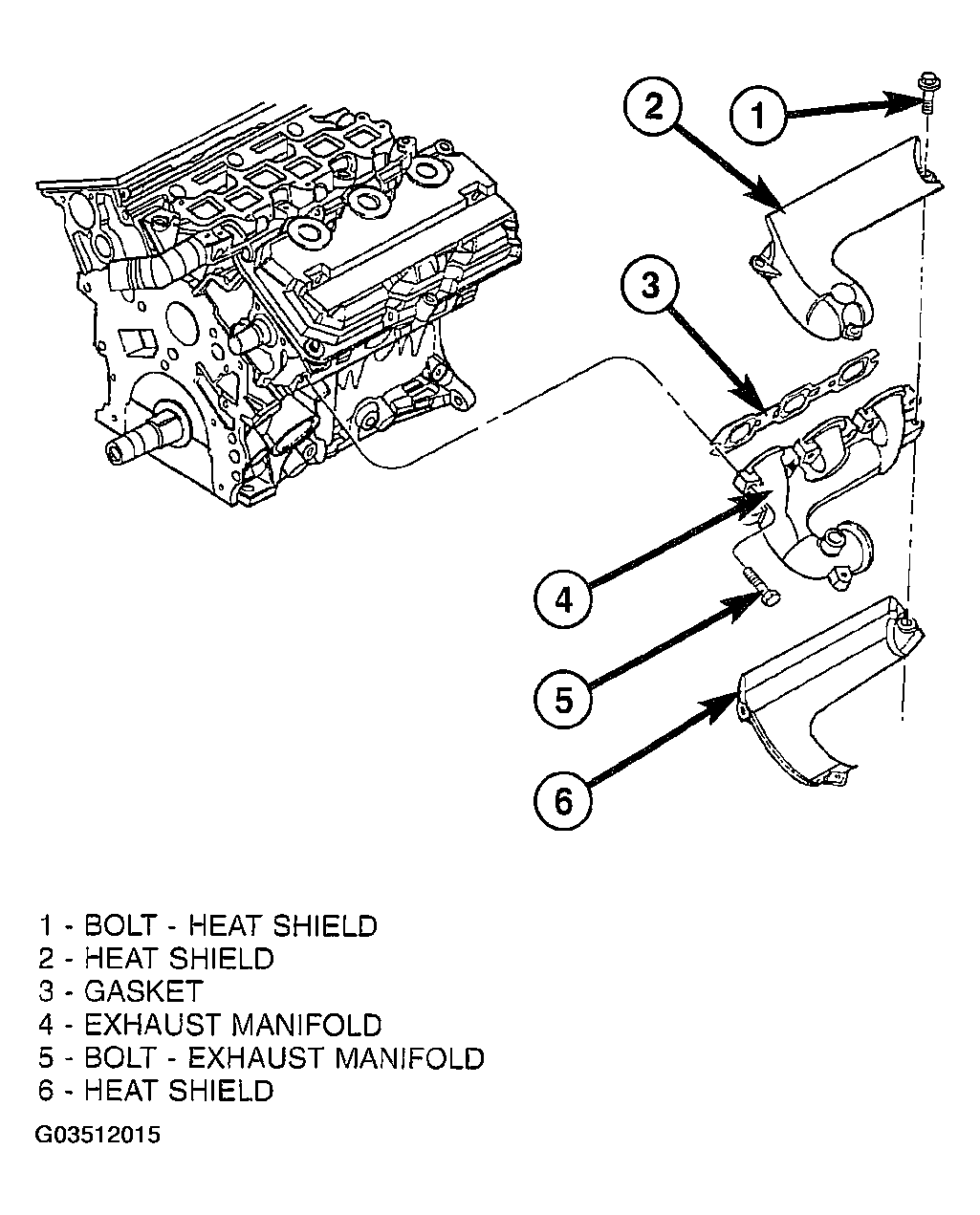

Fig 1: Exhaust Manifold

Courtesy of DAIMLERCHRYSLER CORP.
