Oil Pressure Relief Valve: Installation
WARNING: This page is about a different variant/trim than selected.
- Lubricate relief valve with oil.
CAUTION:

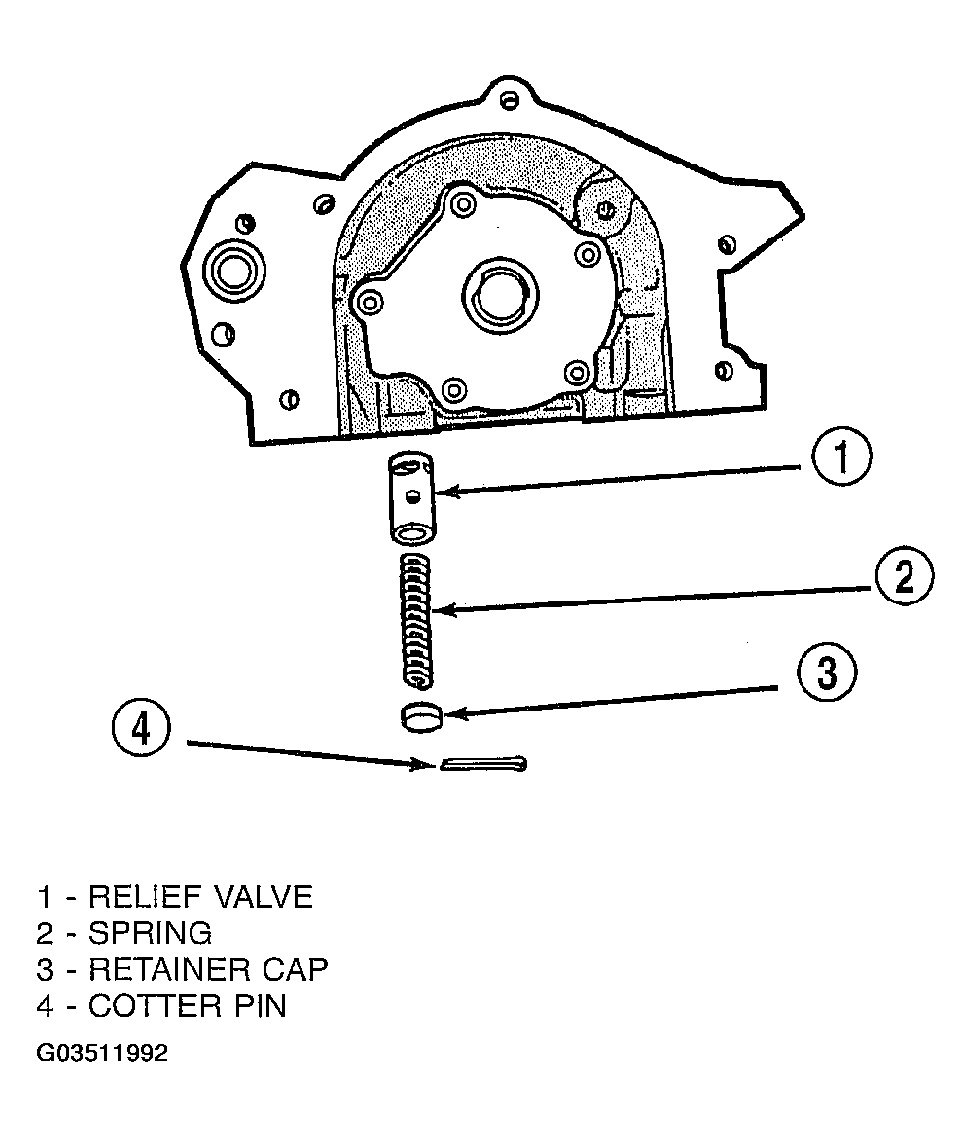

The pressure relief valve must be installed as shown in (Figure
), or engine damage may occur.
- Install valve, spring and retainer cap (Figure
).
- Install new cotter pin.
- Install the oil pan. (Refer to OIL PAN
)
