Valve Stem Seals: Installation

WARNING: This page is about a different variant/trim than selected.
  1. The valve stem seal/valve spring seat should be pushed firmly and squarely over the valve guide using the valve stem as guide. Do Not Force  seal against top of guide. When installing the valve retainer locks, compress the spring only enough  to install the locks.
    CAUTION: Do not remove garter spring around the seal at the top of the valve stem seal (Fig 1 ).

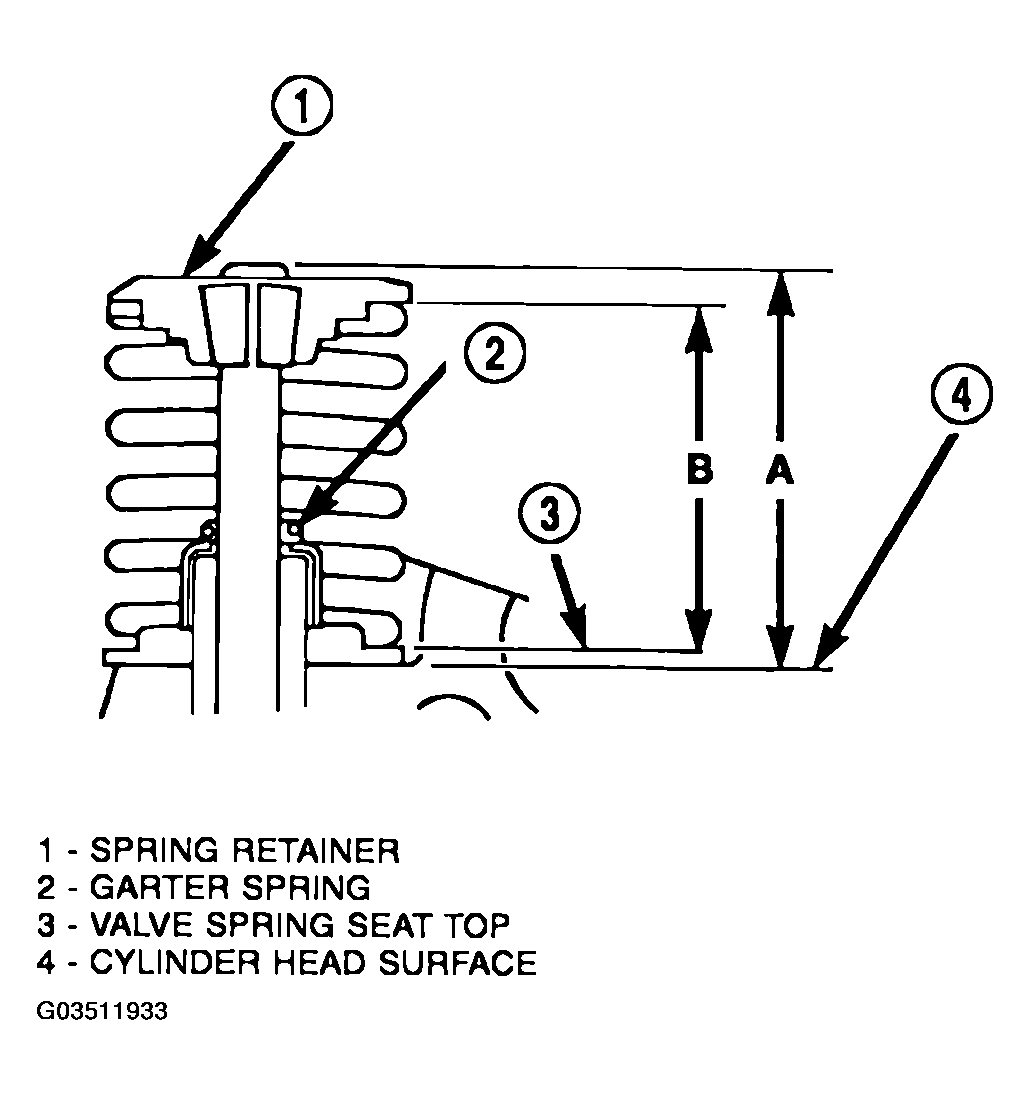

    Fig 1: Checking Valve Tip Height and Valve Spring Installed Height
    G03511933Courtesy of DAIMLERCHRYSLER CORP.
  2. Install valve spring. (Refer to VALVE SPRINGS  )
