Assembly - ICU

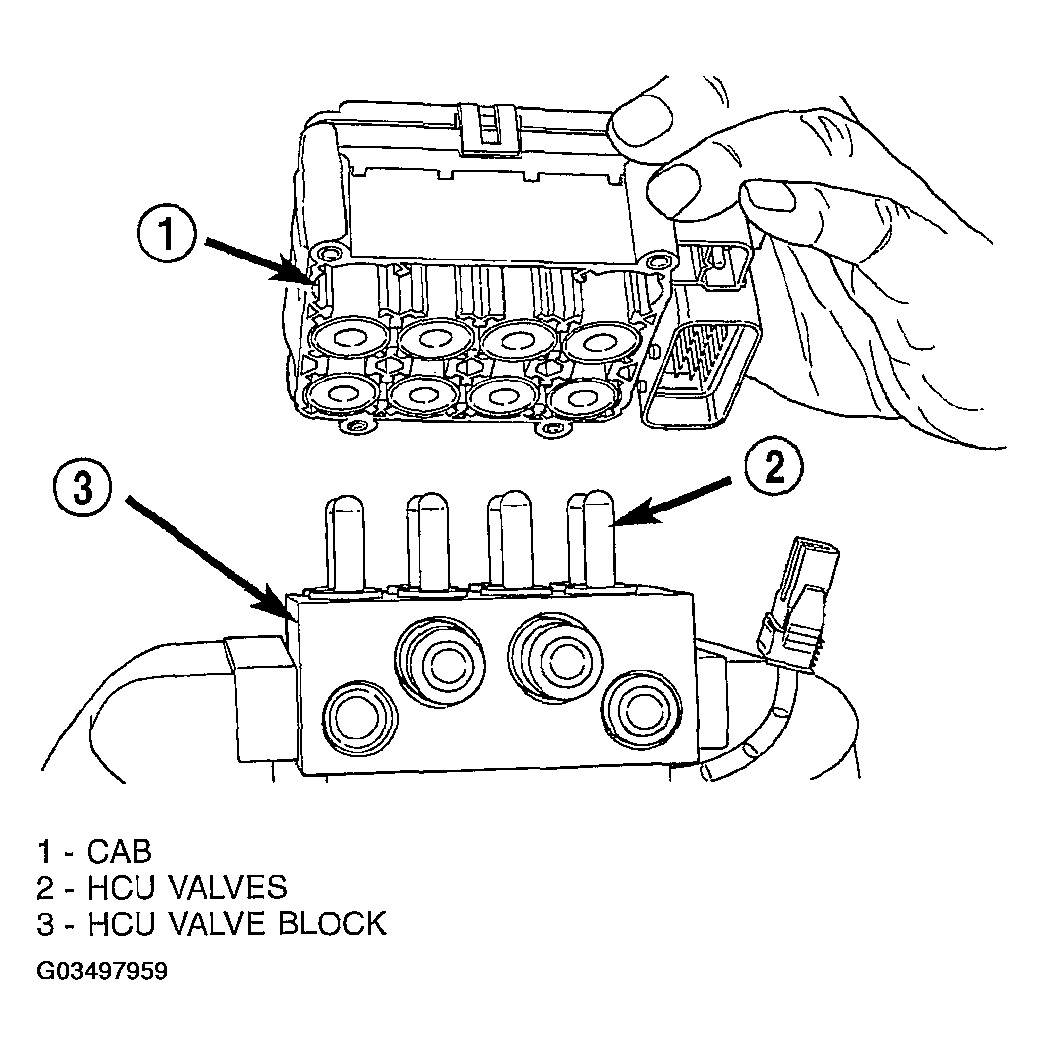

  1. Install the CAB (Figure ) on the HCU.
  2. Install the 4 bolts mounting the CAB (Figure ) to the HCU. Tighten the CAB mounting bolts to a torque of 2 N.m (17 in. lbs.).
  3. Plug the pump/motor wiring harness into the CAB (Figure ).
  4. Install the ICU in the vehicle. (Refer to INSTALLATION - ICU  ).
