Rear Wheel Speed Sensor: Installation

CAUTION: Failure to install speed sensor cables properly may result in contact with moving parts or an over extension of cables causing an open circuit. Be sure that cables are installed, routed, and clipped properly.

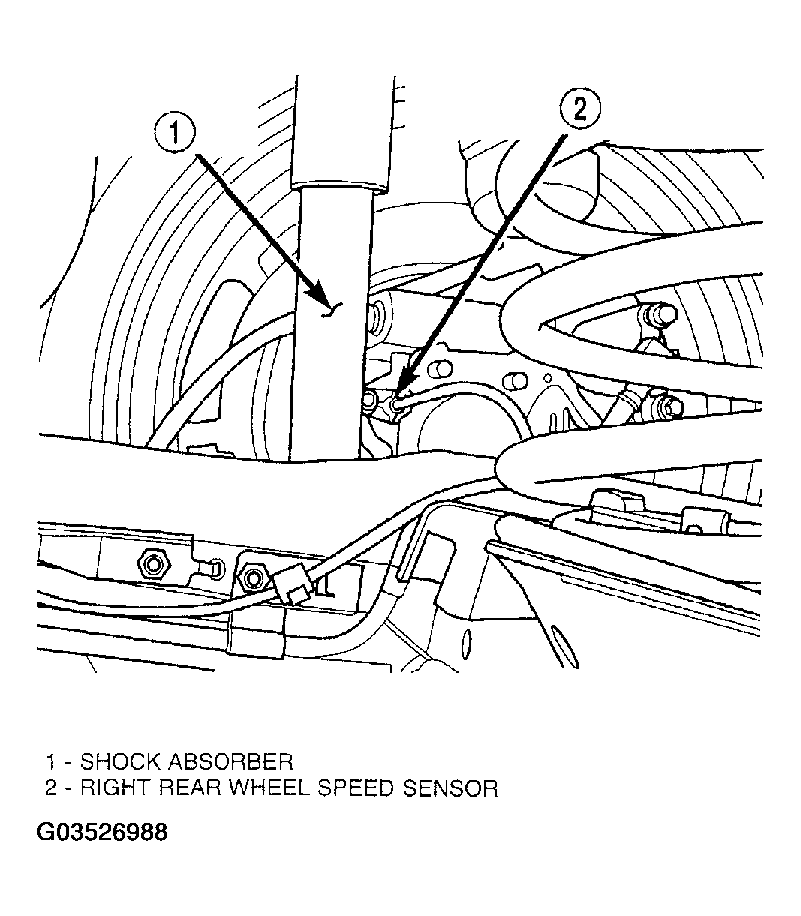

  1. Install the wheel speed sensor head into the disc brake adapter or drum brake support plate (Figure ).
  2. Install the wheel speed sensor mounting bolt. Tighten the mounting bolt to a torque of 12 N.m (105 in. lbs.).
  3. Install wheel speed sensor cable into the routing clips on the brake tube, brake hose and axle trailing arm.

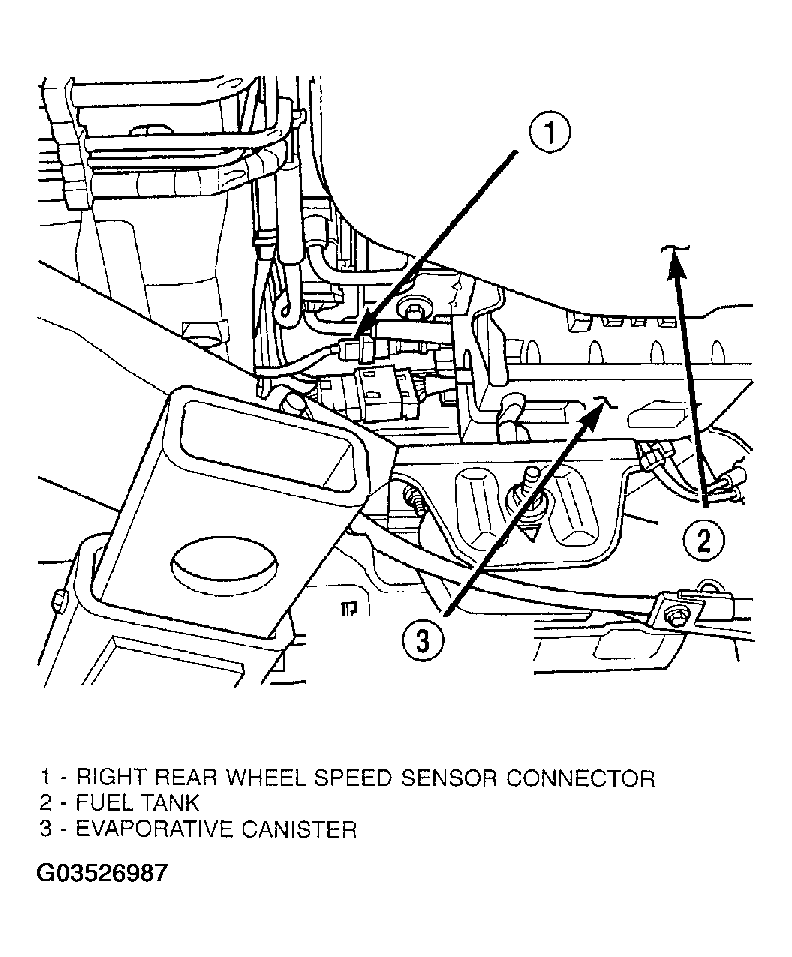

  4. Connect the wheel speed sensor cable connector into vehicle wiring harness (Figure ). Install the clip attaching the wheel speed sensor cable connector to vehicle's body.
  5. Install the tire and wheel assembly on vehicle. Progressively tighten wheel mounting nuts to 135 N.m (100 ft. lbs.).
  6. Lower the vehicle.
  7. Road test the vehicle to ensure proper operation of the base brakes and ABS.
