Data Link Connector Connector End View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Data Link Connector Connector End View

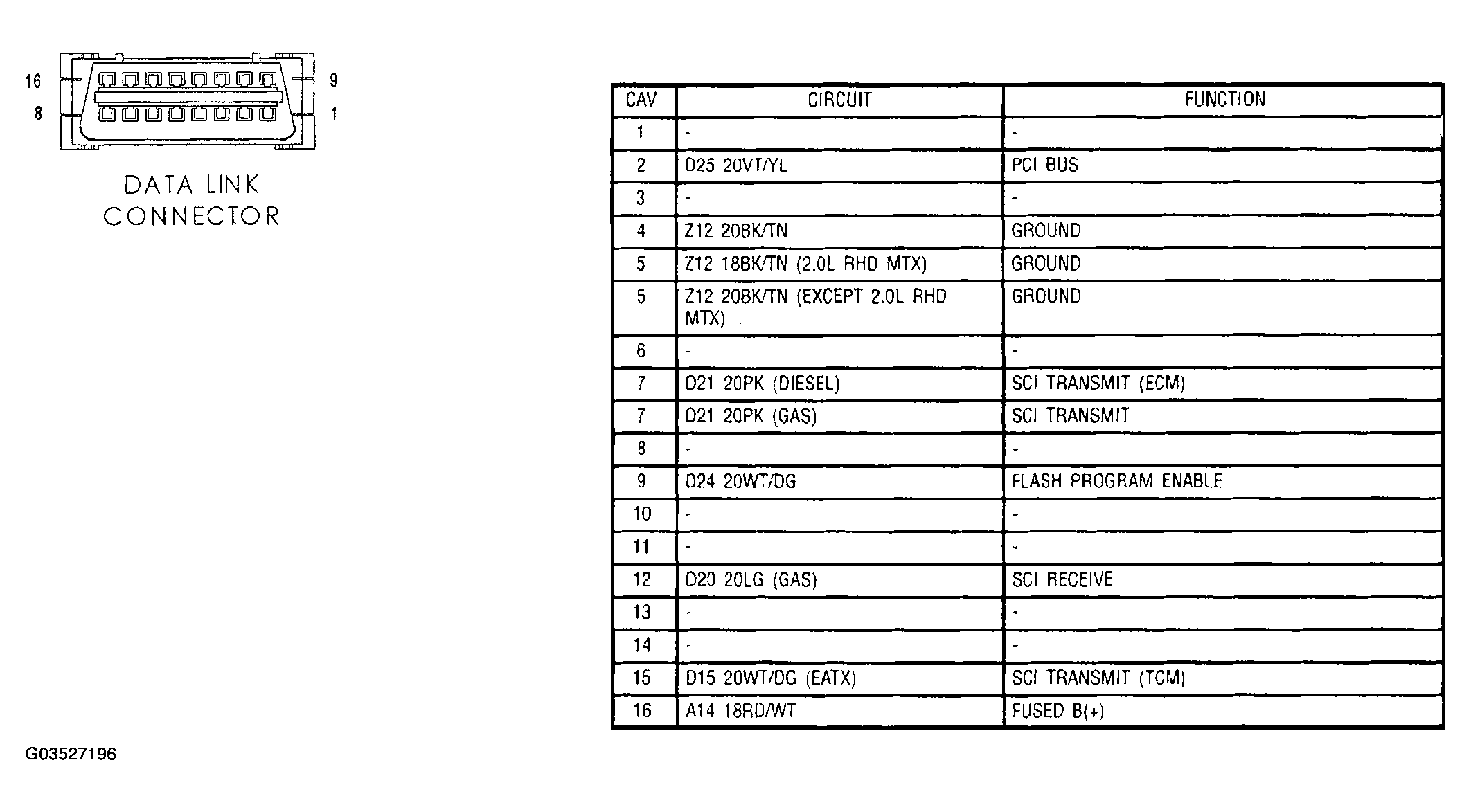

Fig 1: Data Link Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
