Fuel Delivery: Specifications: Torque

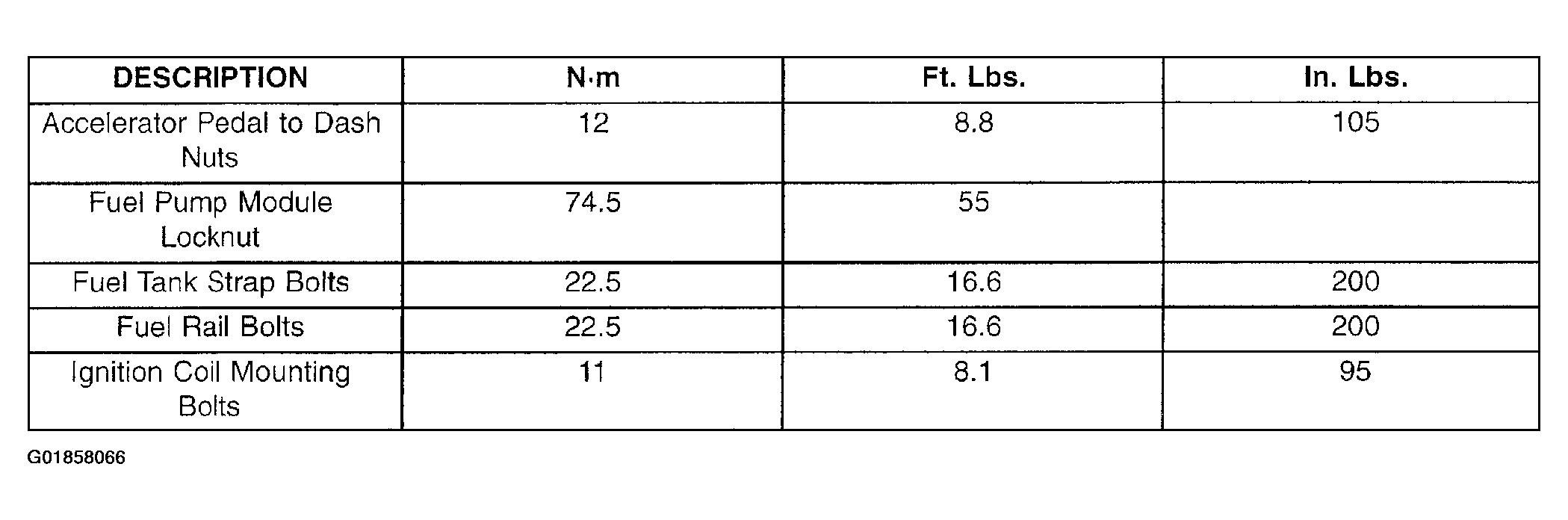

Fig 1: Fastener Tightening Torque Specifications Table
G01858066Courtesy of DAIMLERCHRYSLER CORP.
