DTC P0551: Power Steering Switch Performance: Testing

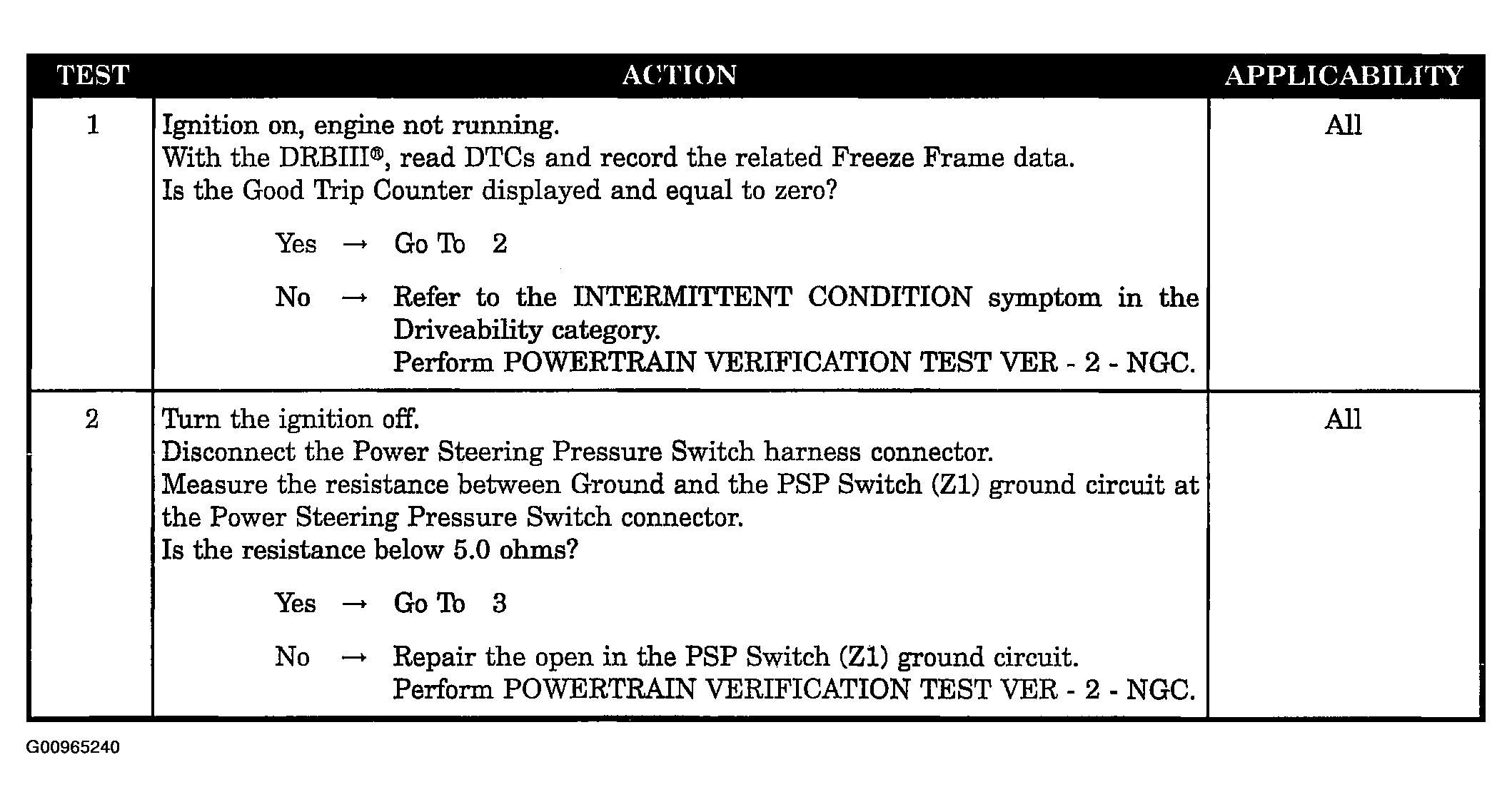

Fig 1: Testing: Power Steering Switch Performance (1 Of 2)
G00965240Courtesy of DAIMLERCHRYSLER CORP.

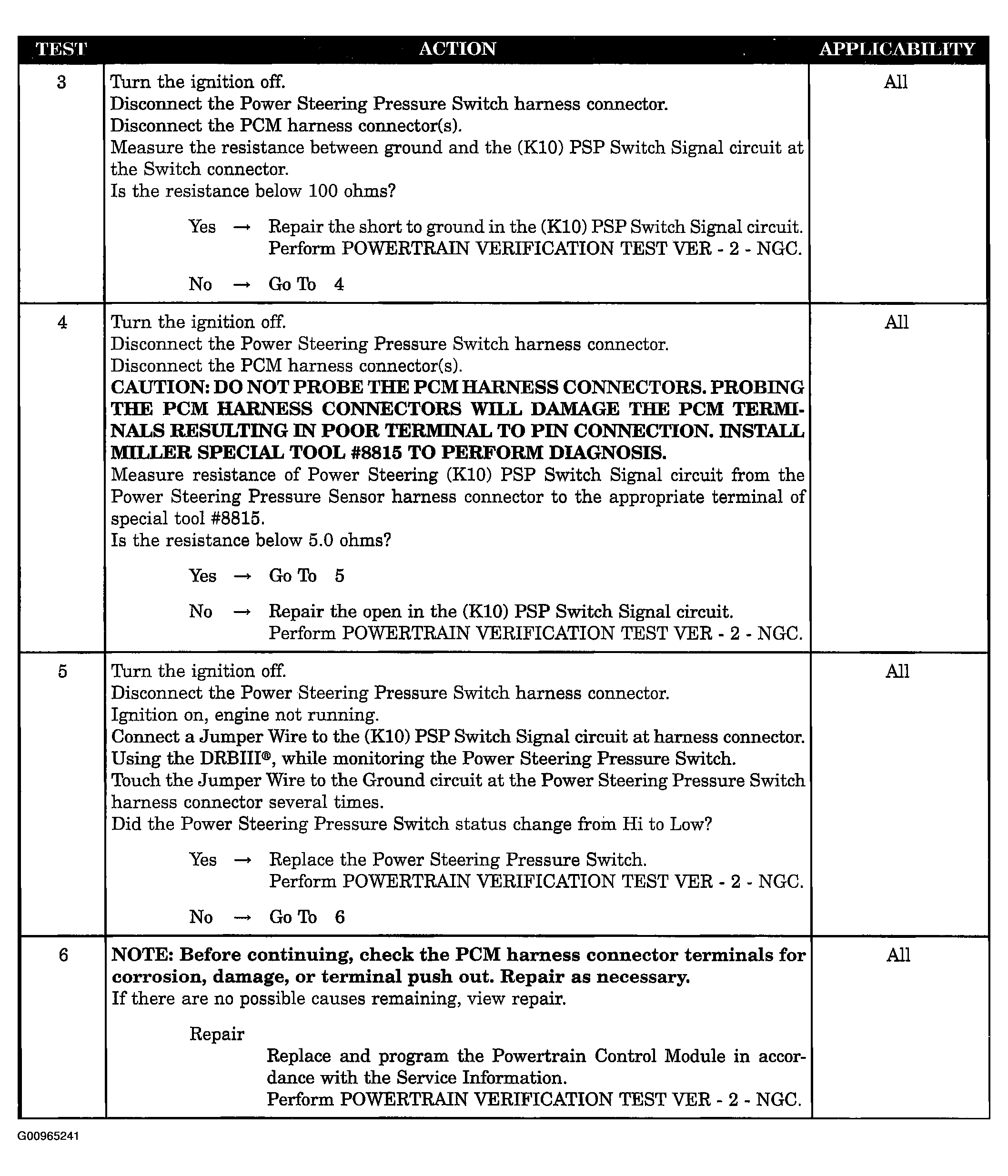

Fig 2: Testing: Power Steering Switch Performance (2 Of 2)
G00965241Courtesy of DAIMLERCHRYSLER CORP.
