Charging System & Starting System: Charging: Specifications: Torque

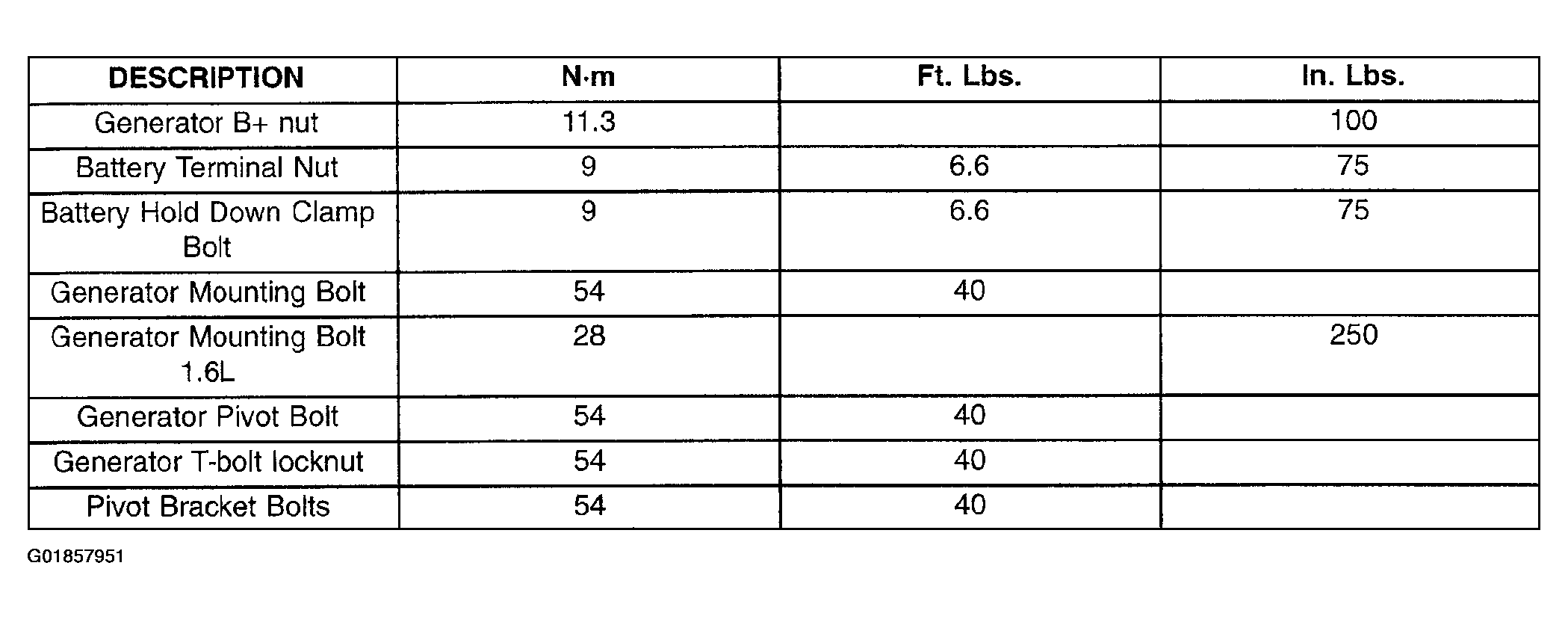

Fig 1: Fastener Tightening Torque Specifications Table
G01857951Courtesy of DAIMLERCHRYSLER CORP.
