Charging System & Starting System: Generator: Removal: 2.0/2.4L

Remove the air cleaner lid, disconnect the inlet air sensor and makeup air hose.
Disconnect the negative battery cable.
Loosen the upper generator T-bolt lock nut.

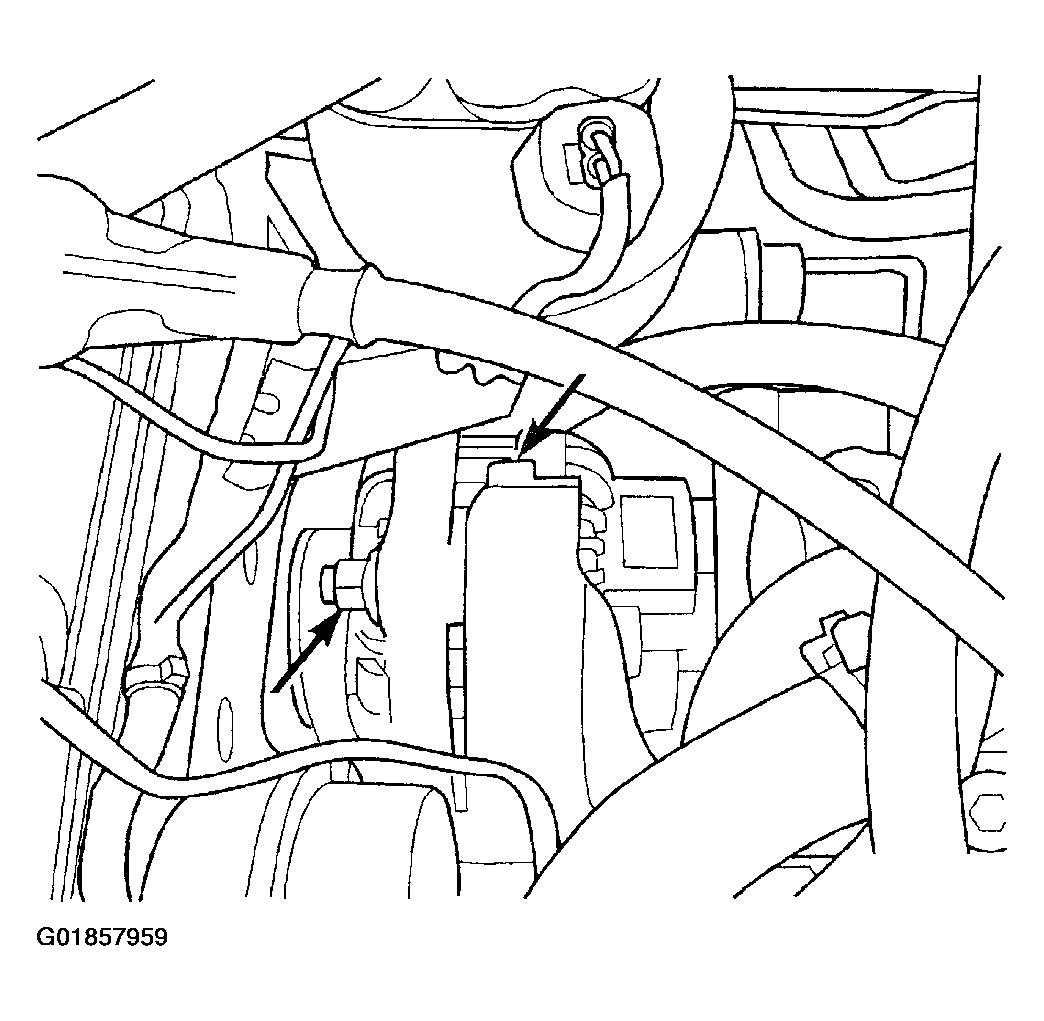

Fig 1: Locating Generator T-Bolt Locknut & Adjustment Bolt
Courtesy of DAIMLERCHRYSLER CORP.
Raise vehicle on hoist.
Remove the right front wheel.
Remove the accessory drive splash shield.

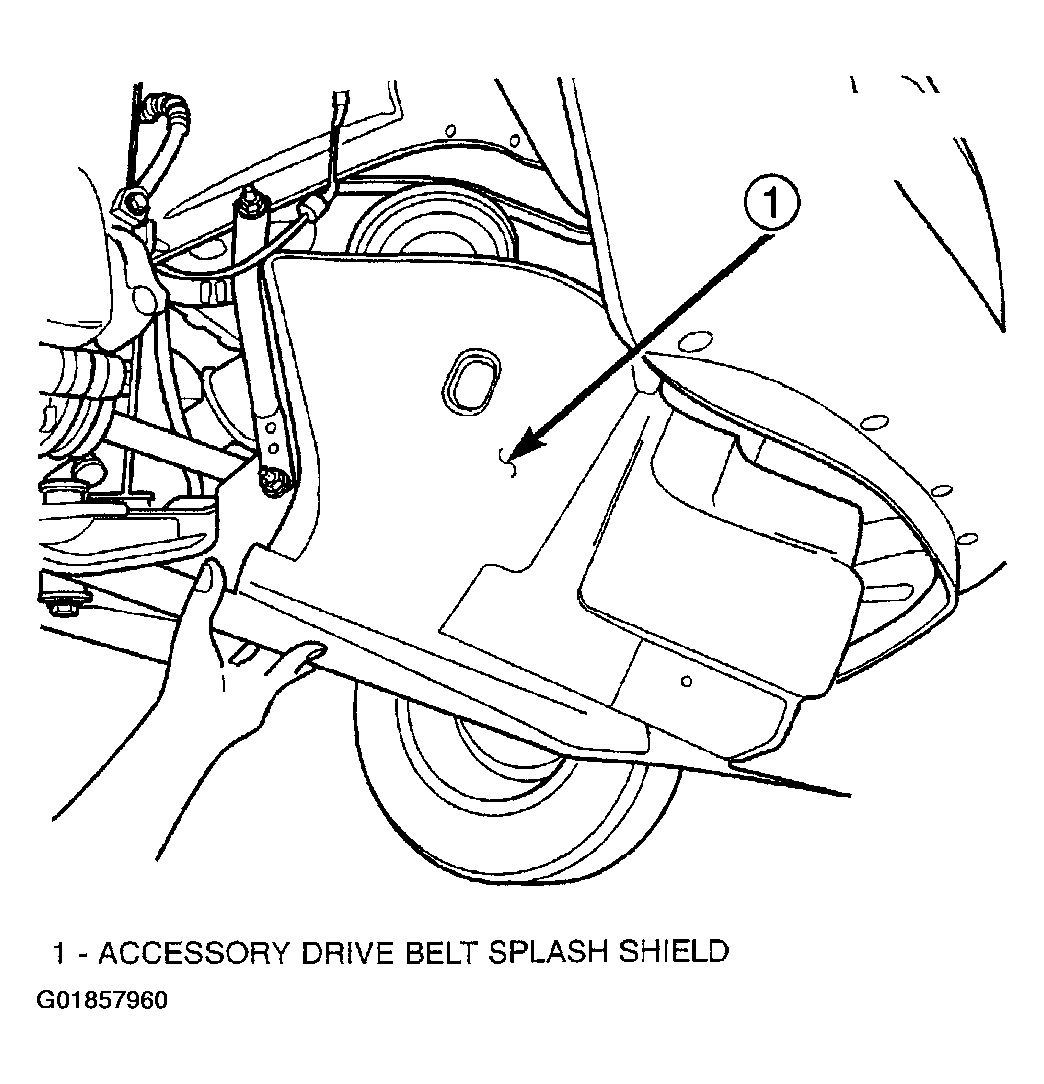

Fig 2: Removing Accessory Drive Splash Shield
Courtesy of DAIMLERCHRYSLER CORP.
Remove the pencil strut.

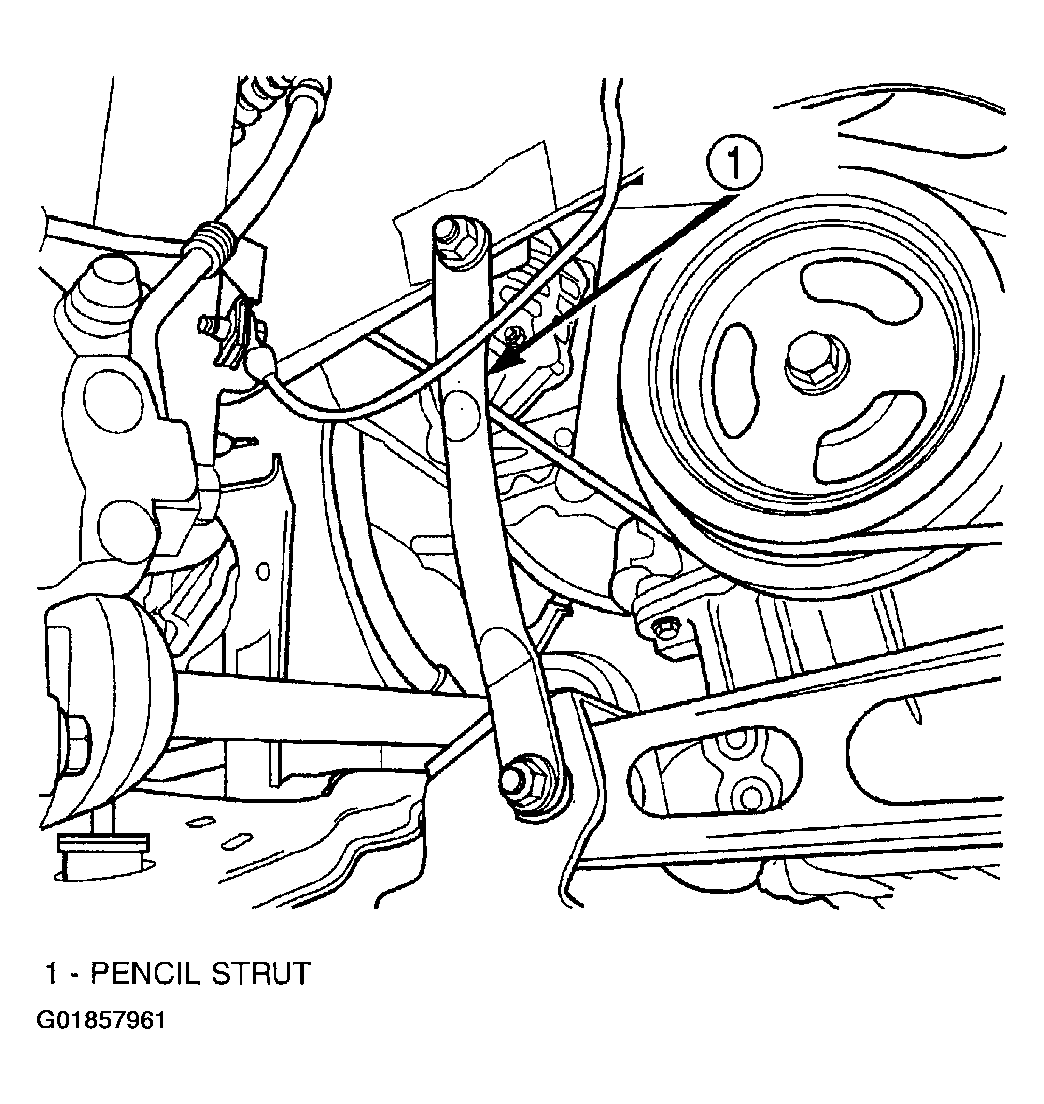

Fig 3: Removing Pencil Strut
Courtesy of DAIMLERCHRYSLER CORP.
Loosen the lower pivot bolt.

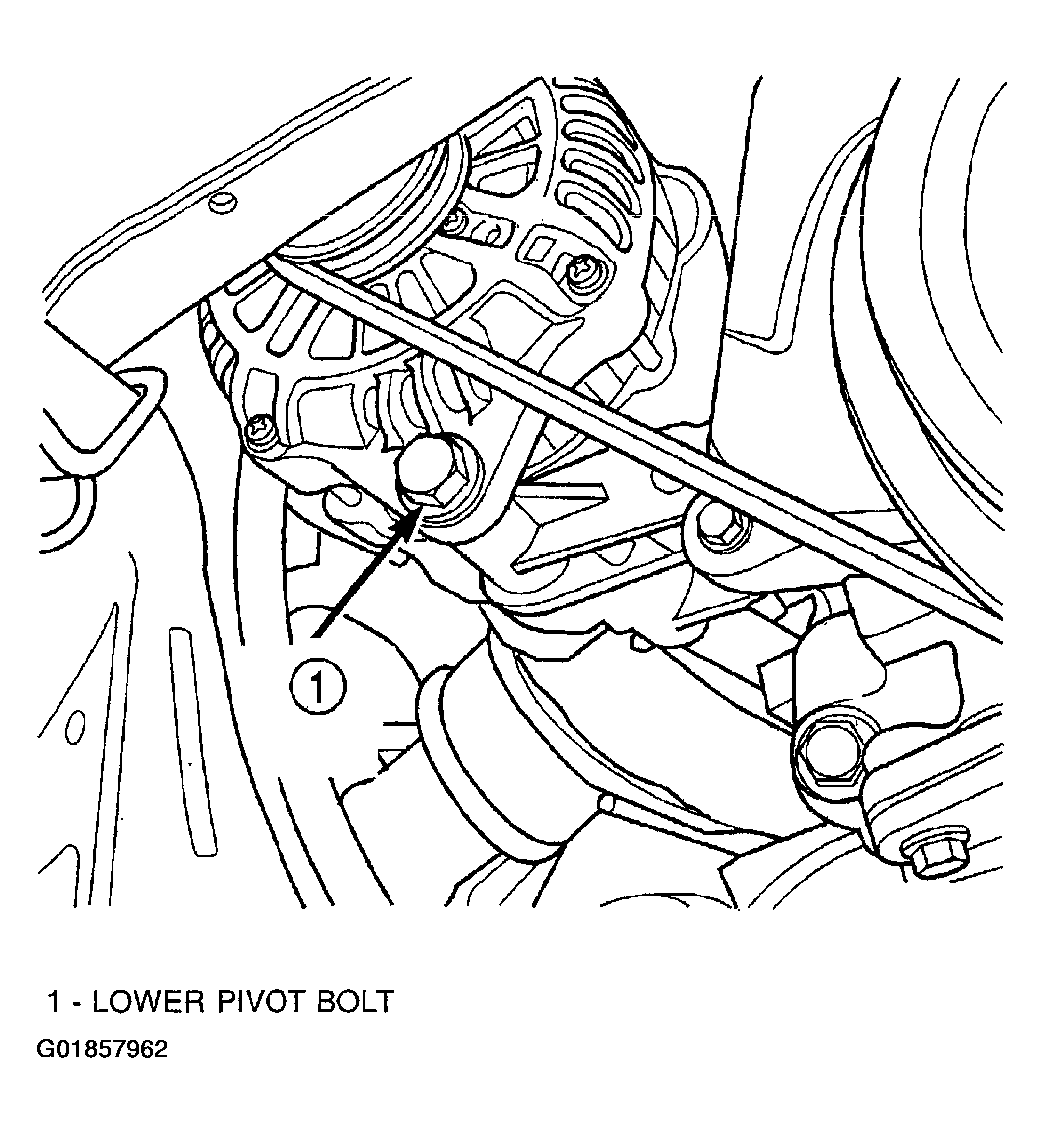

Fig 4: Locating Lower Pivot Bolt
Courtesy of DAIMLERCHRYSLER CORP.
Loosen the accessory drive belt t-bolt.
Unplug field circuit from generator.

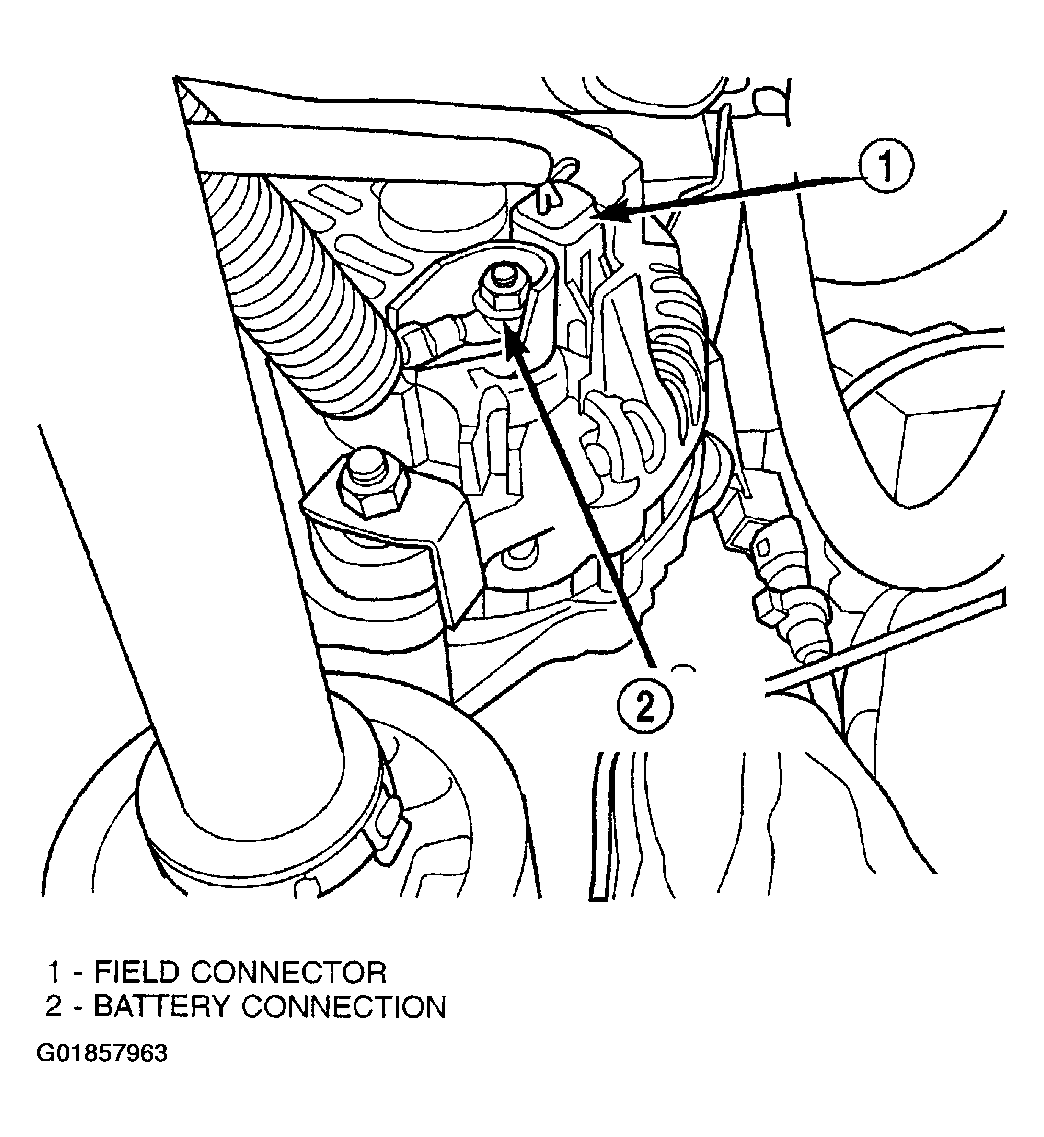

Fig 5: Identifying Battery Connection
Courtesy of DAIMLERCHRYSLER CORP.
Remove the B+ terminal nut and wire.
Remove the generator belt, see COOLING SYSTEM MECHANICAL article.
Remove the axle retaining nut.
Remove the lower control arm from steering knuckle.
Remove axle shaft. Put a container under the transmission to catch the transmission fluid from the transmission.
Remove the generator lower mounting bolt and nut from the upper T-bolt.
Remove generator out the bottom.

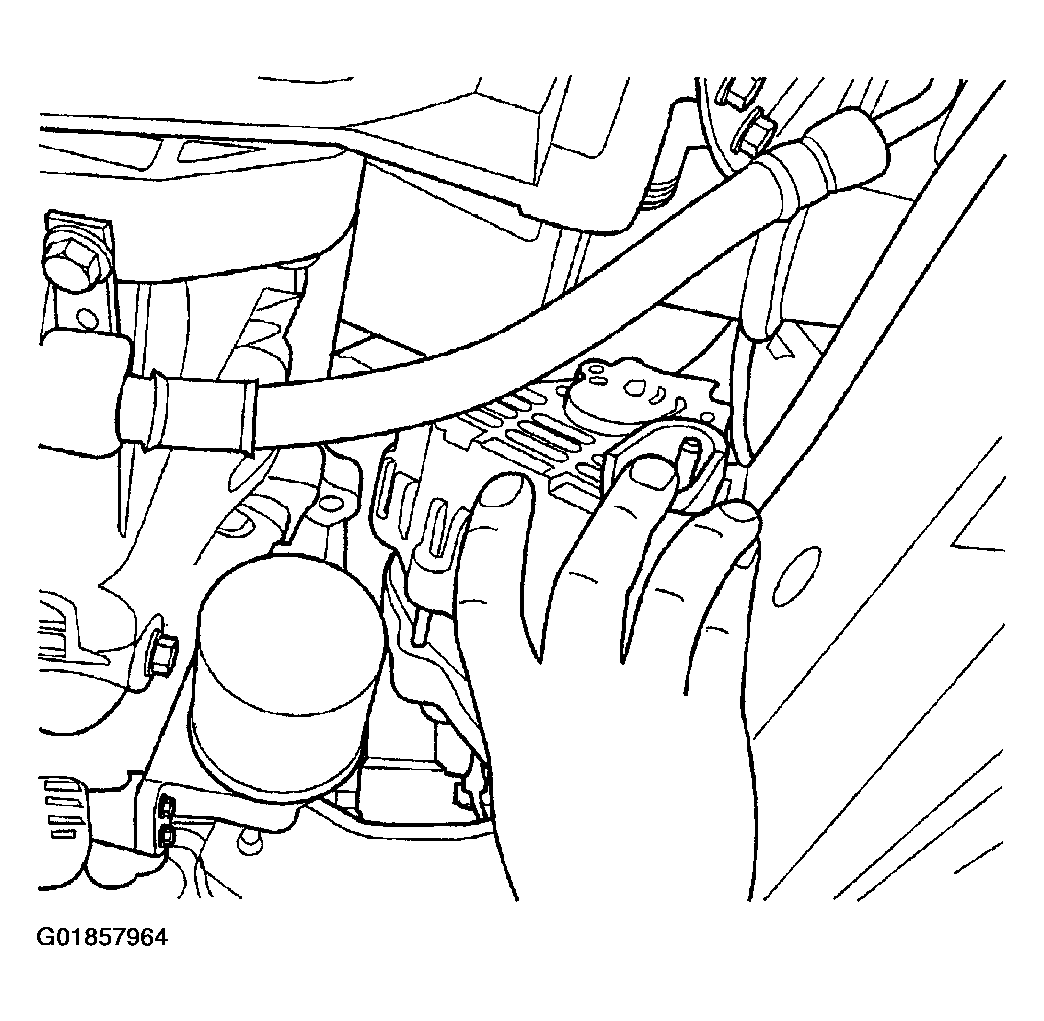

Fig 6: Removing Generator
Courtesy of DAIMLERCHRYSLER CORP.
