Ignition Control: Specifications: Torque

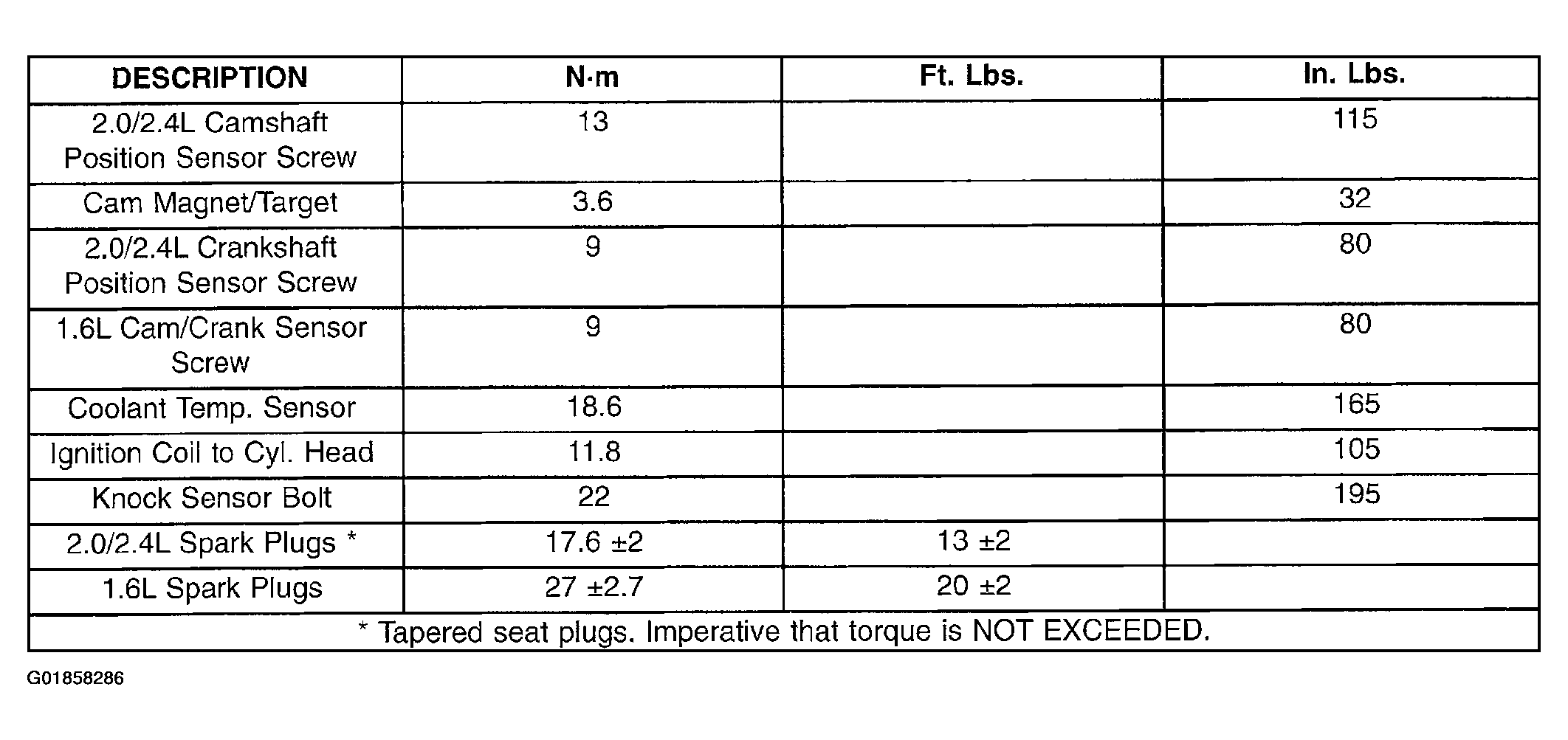

Fig 1: Fastener Tightening Torque Specifications Table

G01858286

Courtesy of DAIMLERCHRYSLER CORP.
