Spark Plug Cable Resistance

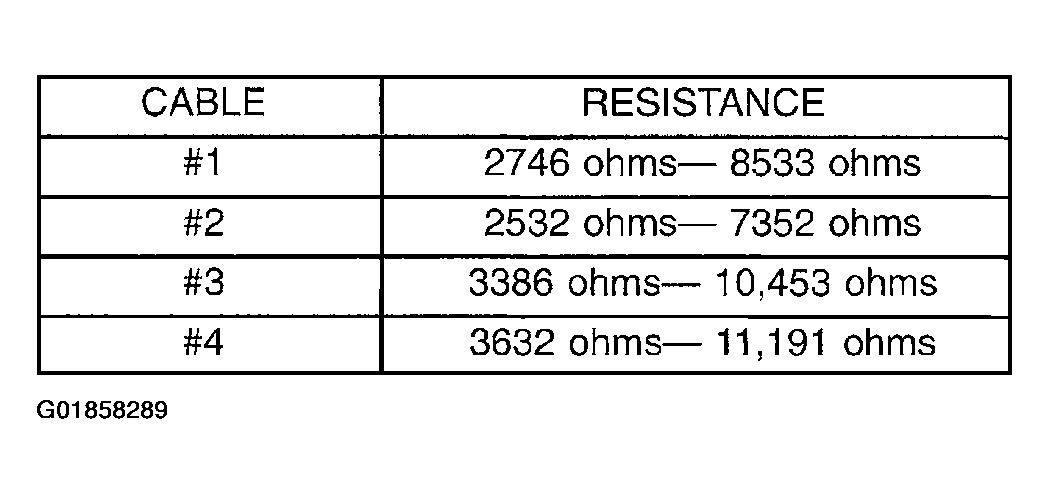

Fig 1: Identifying Spark Plug Cable Resistance Specifications - 1.6L
G01858289Courtesy of DAIMLERCHRYSLER CORP.

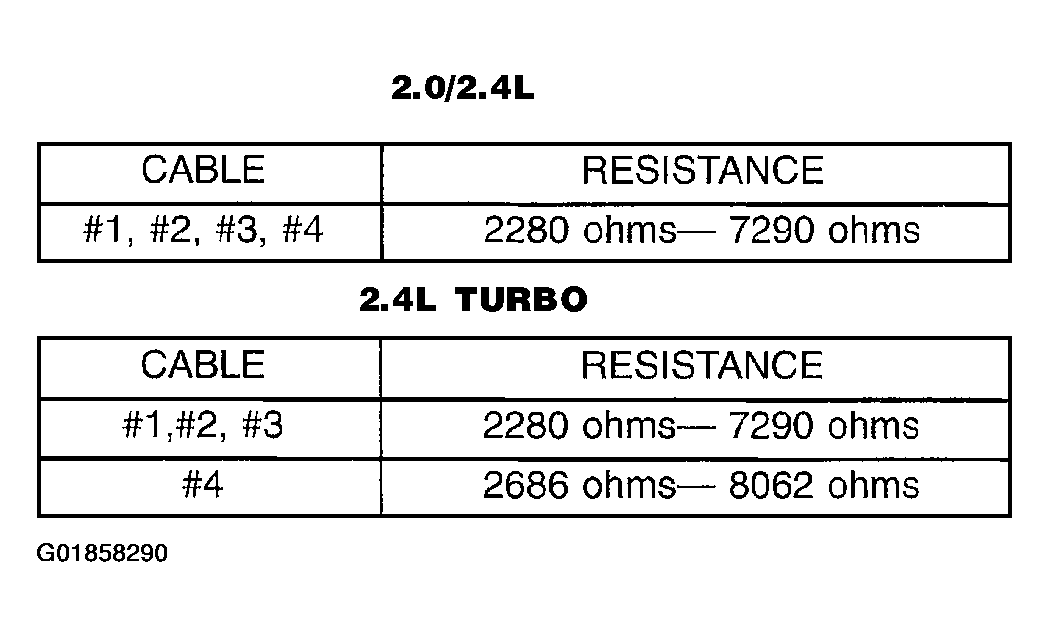

Fig 2: Identifying Spark Plug Cable Resistance Specifications - 2.0/2.4L
G01858290Courtesy of DAIMLERCHRYSLER CORP.
