Intake Manifold
Fig. 152:
LOWER INTAKE MANIFOLD
Tighten fasteners to 12 Nm (105 in. lbs.) in sequence shown in (Fig. 152).
UPPER INTAKE MANIFOLD

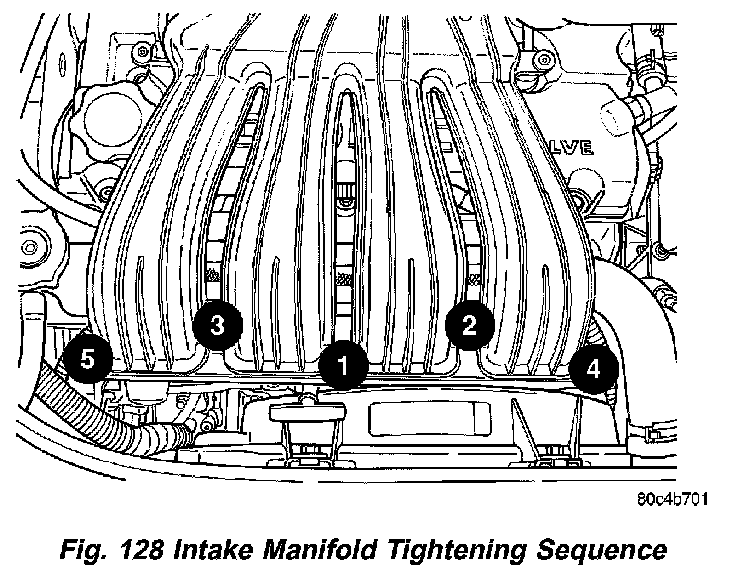

Tighten upper intake manifold fasteners to 12 Nm (105 inch lbs.) in sequence shown in (Fig. 128).
LOWER INTAKE MANIFOLD
Tighten fasteners to 12 Nm (105 in. lbs.) in sequence shown in (Fig. 152).
UPPER INTAKE MANIFOLD
Tighten upper intake manifold fasteners to 12 Nm (105 inch lbs.) in sequence shown in (Fig. 128).
