Sentry Key Remote Entry Module: Description: Notes

The Sentry Key Remote Entry Module (SKREEM) (Fig 1) and (Fig 2) performs the functions of the Sentry Key Immobilizer Module (SKIM) and the Remote Keyless Entry Module (RKE).

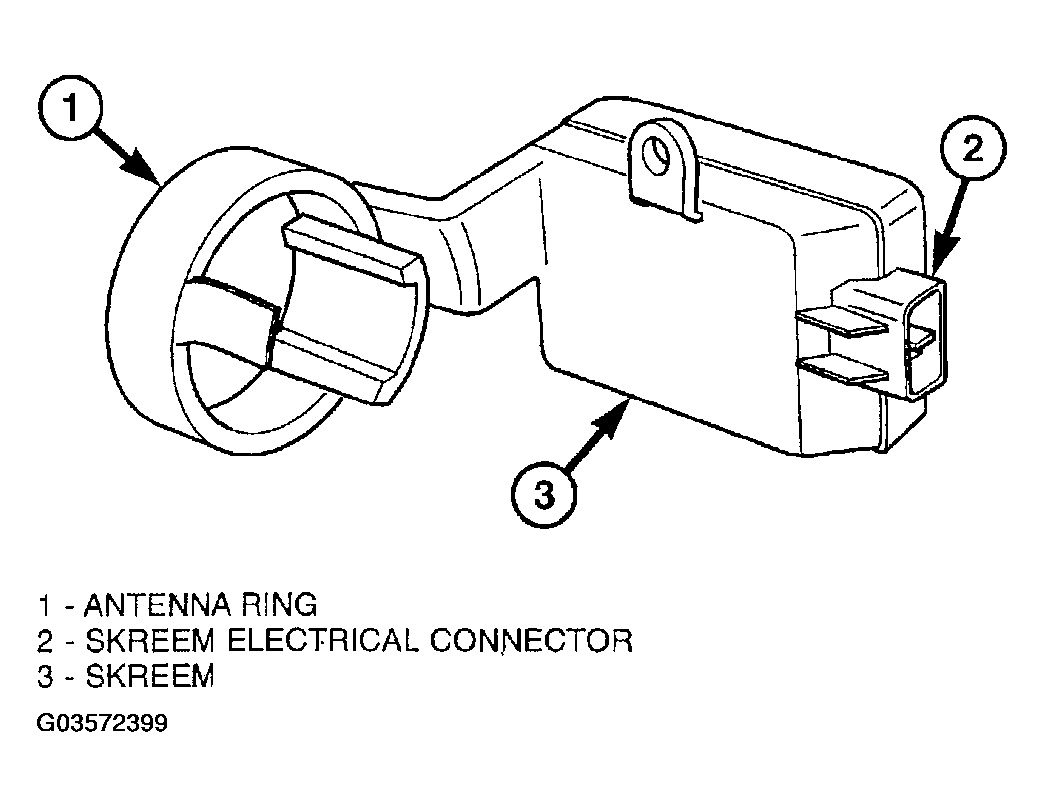

Fig 1: Identifying Sentry Key Remote Entry Module (SKREEM)

Courtesy of DAIMLERCHRYSLER CORP.

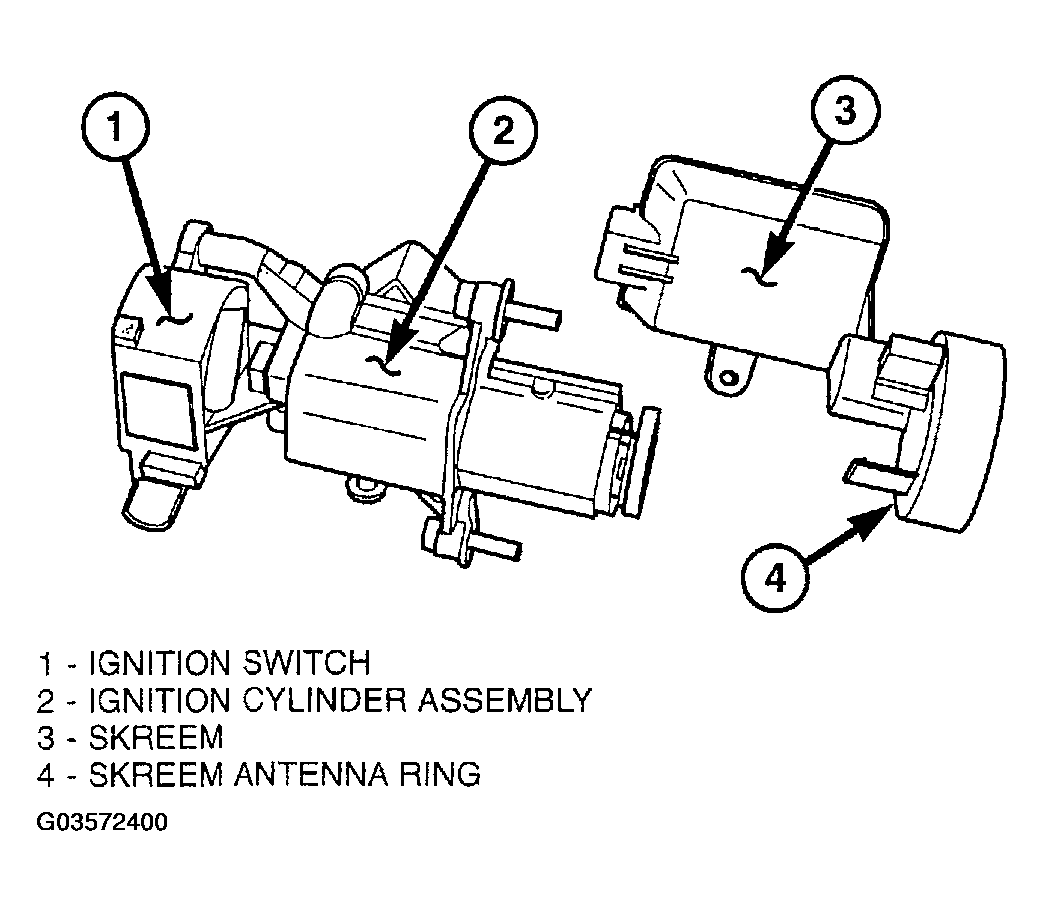

Fig 2: Identifying SKREEM Positioning

Courtesy of DAIMLERCHRYSLER CORP.
