Power Liftgate System: Hinge: Installation

NOTE: Use a suitable body sealer on the hinge to body mating surfaces prior to installation.
  1. If necessary, paint replacement hinge before installation.
  2. Place hinge in position on vehicle.
  3. Align hinge to marks on liftgate.

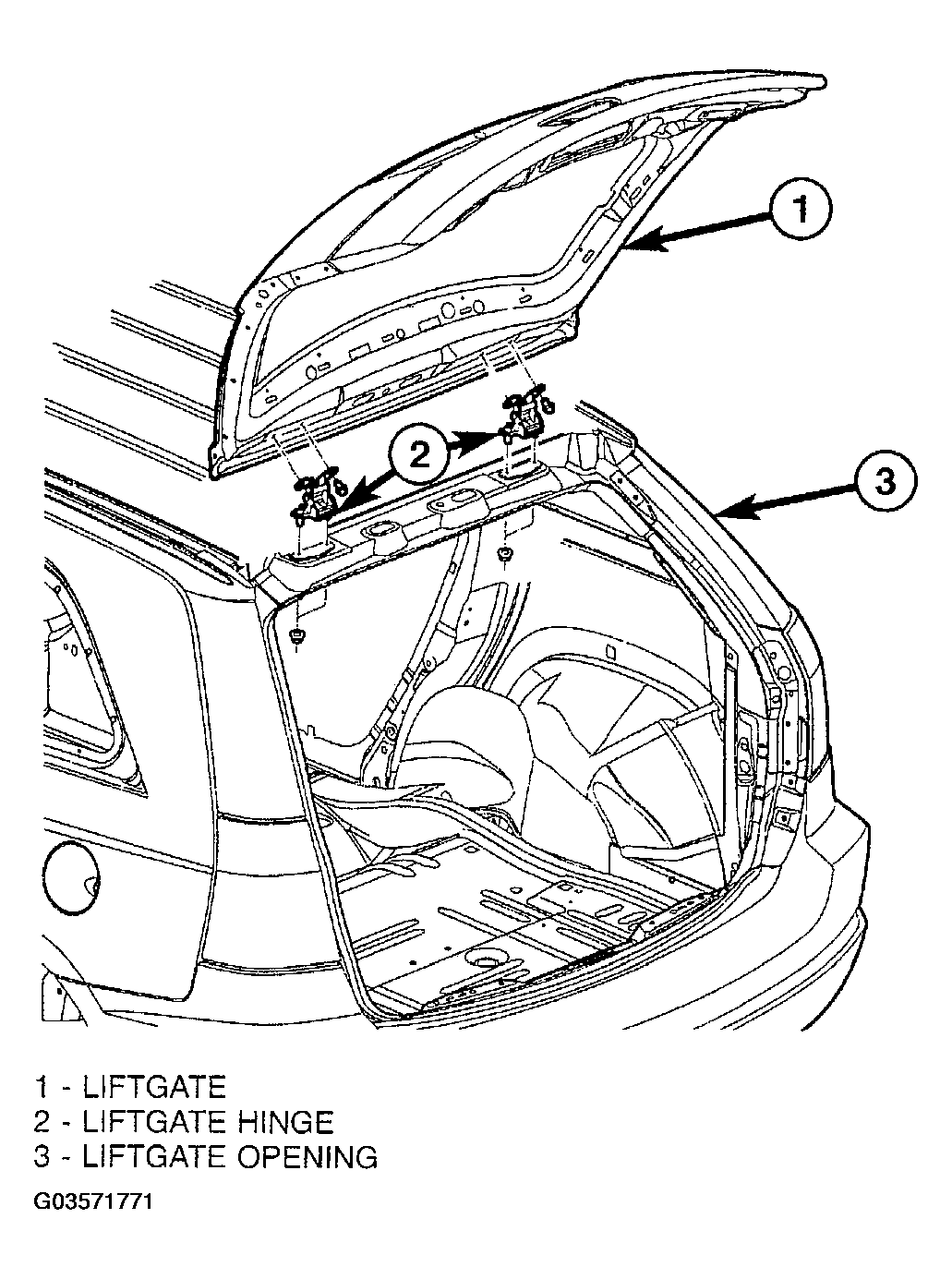

  4. Install bolts attaching hinge to liftgate (Figure ). Tighten bolts to 33 N.m (24 ft. lbs.) torque.
  5. Align hinge to marks on roof header.
  6. Install nuts attaching liftgate hinge to roof header. Tighten bolts to 23 N.m (17 ft. lbs.) torque.
  7. Verify liftgate alignment. (Refer to GAP AND FLUSH ).
