Cross-Over Pipe: Removal
- Disconnect negative cable from battery.

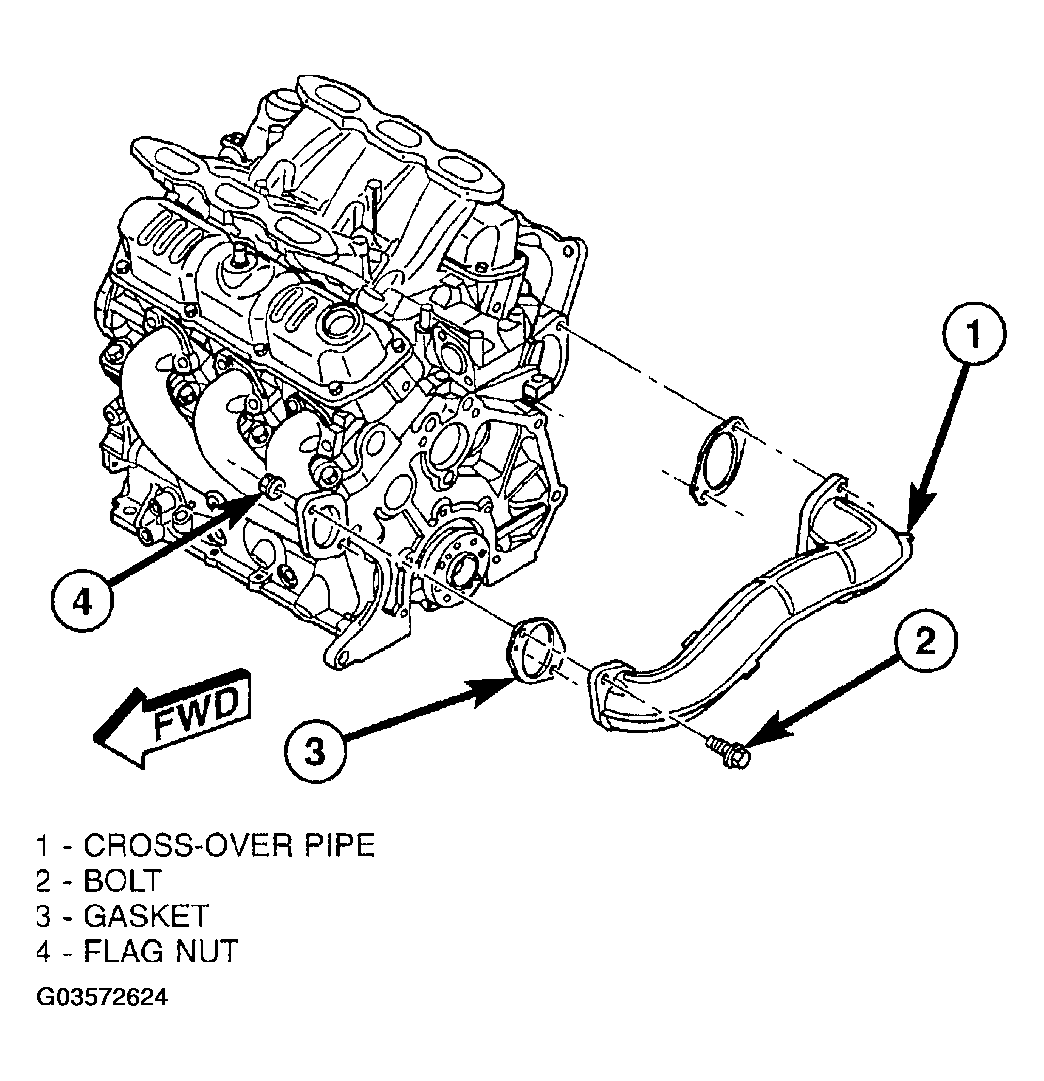

- Remove the fasteners attaching the left bank manifold connection to cross-over pipe (Fig 1
).
- Loosen and remove the lower fastener.
- Remove the cross-over pipe support fastener.
- Remove the cross-over pipe (Fig 1
).
- Remove gaskets and discard (Fig 1
).
Courtesy of DAIMLERCHRYSLER CORP.
