Coil On Plug Connector End View

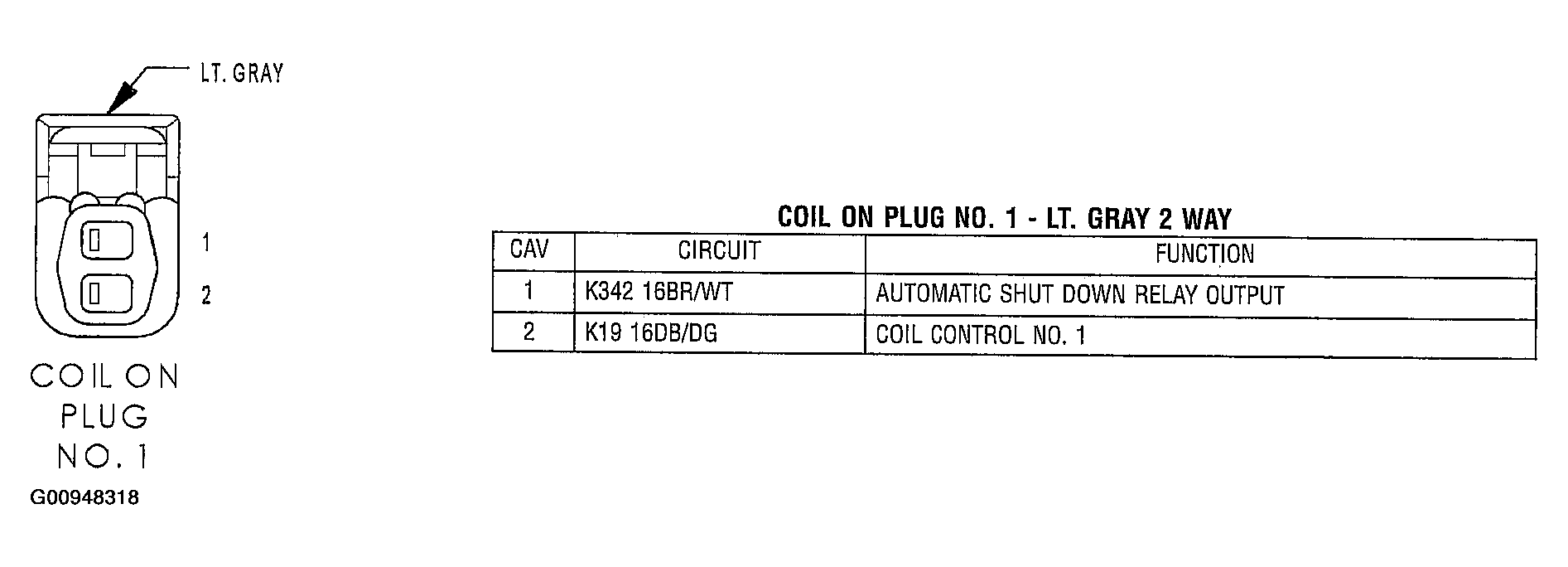

Fig 1: Identifying Coil On Plug No. 1 - LT. Gray 2 Way Connector
G00948318Courtesy of DAIMLERCHRYSLER CORP.

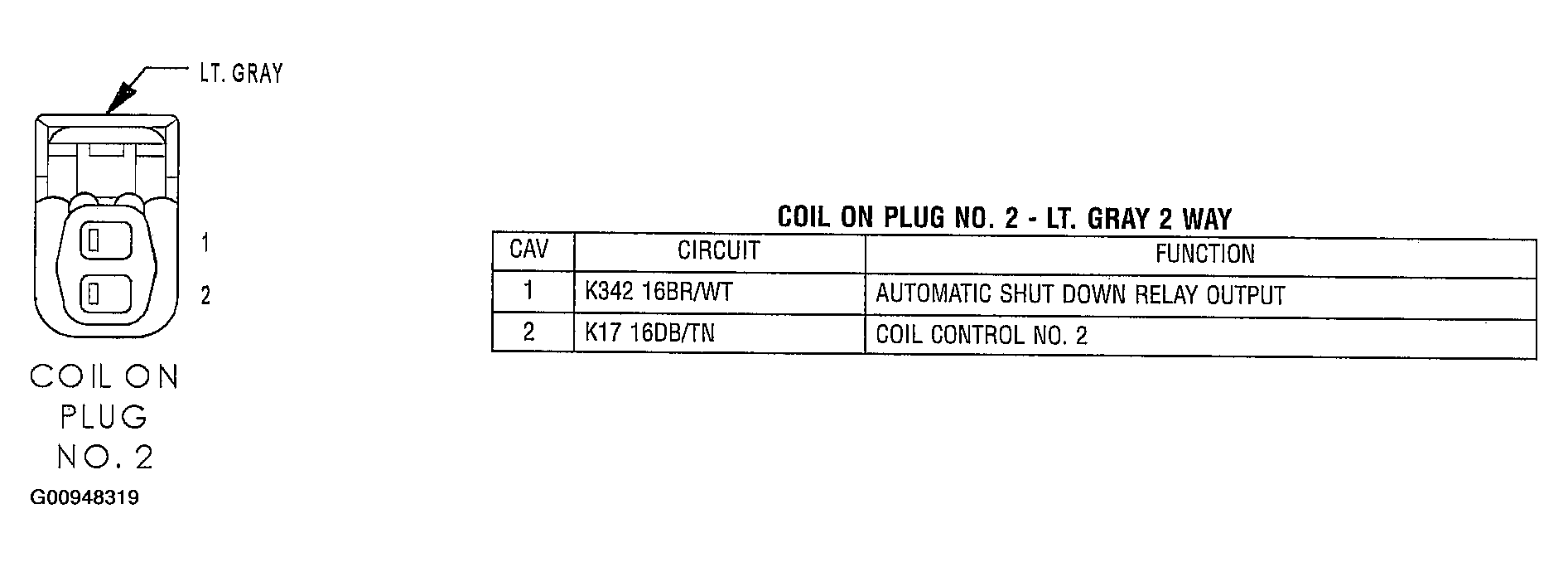

Fig 2: Identifying Coil On Plug No. 2 - LT. Gray 2 Way Connector
G00948319Courtesy of DAIMLERCHRYSLER CORP.

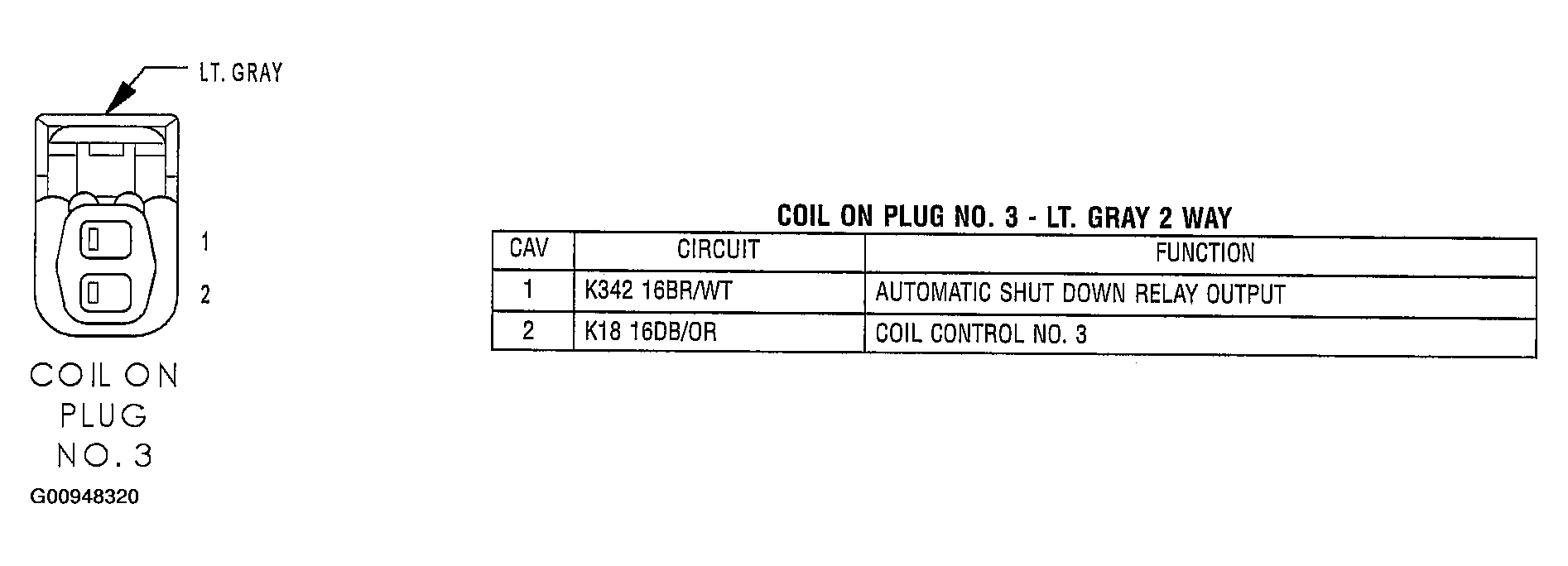

Fig 3: Identifying Coil On Plug No. 3 - LT. Gray 2 Way Connector
G00948320Courtesy of DAIMLERCHRYSLER CORP.

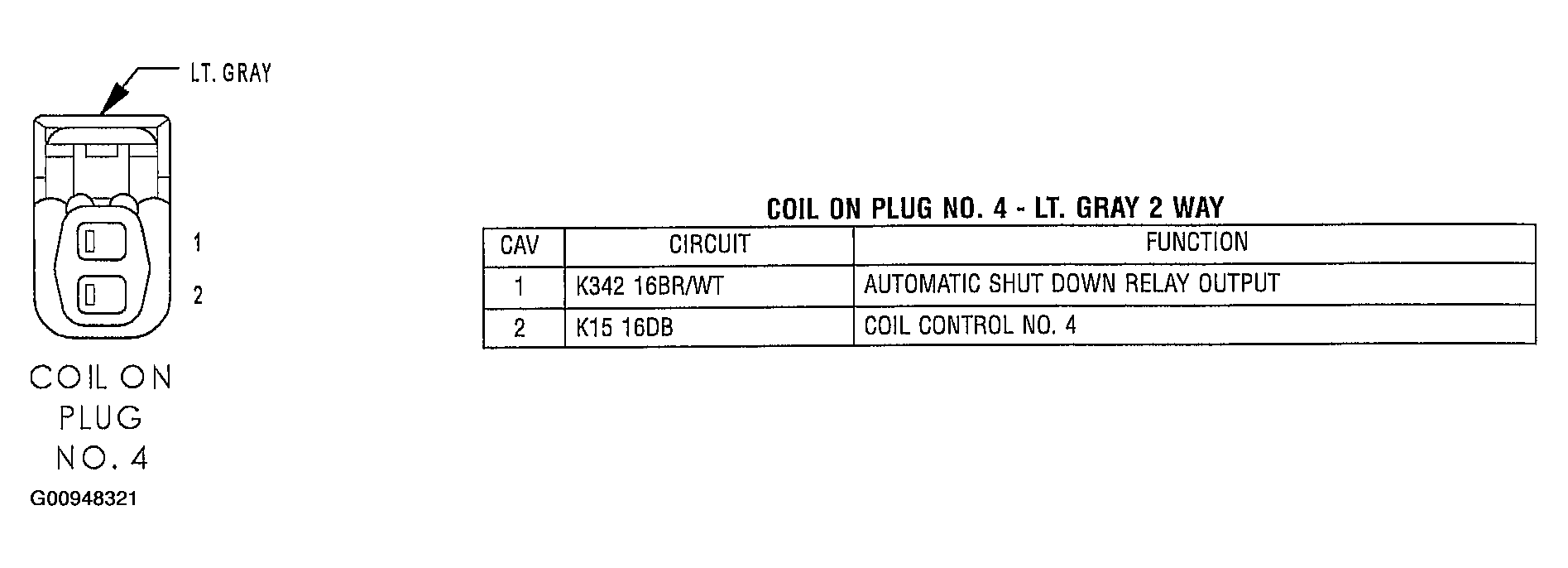

Fig 4: Identifying Coil On Plug No. 4 - LT. Gray 2 Way Connector
G00948321Courtesy of DAIMLERCHRYSLER CORP.

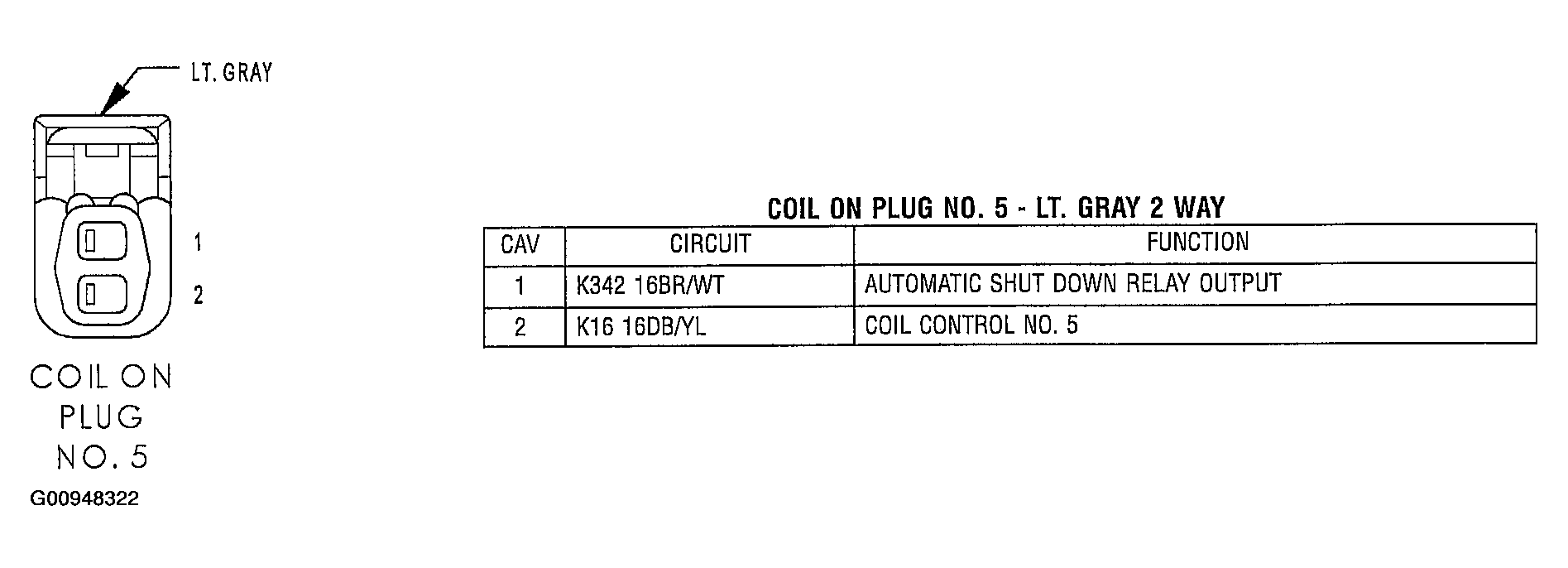

Fig 5: Identifying Coil On Plug No. 5 - LT. Gray 2 Way Connector
G00948322Courtesy of DAIMLERCHRYSLER CORP.

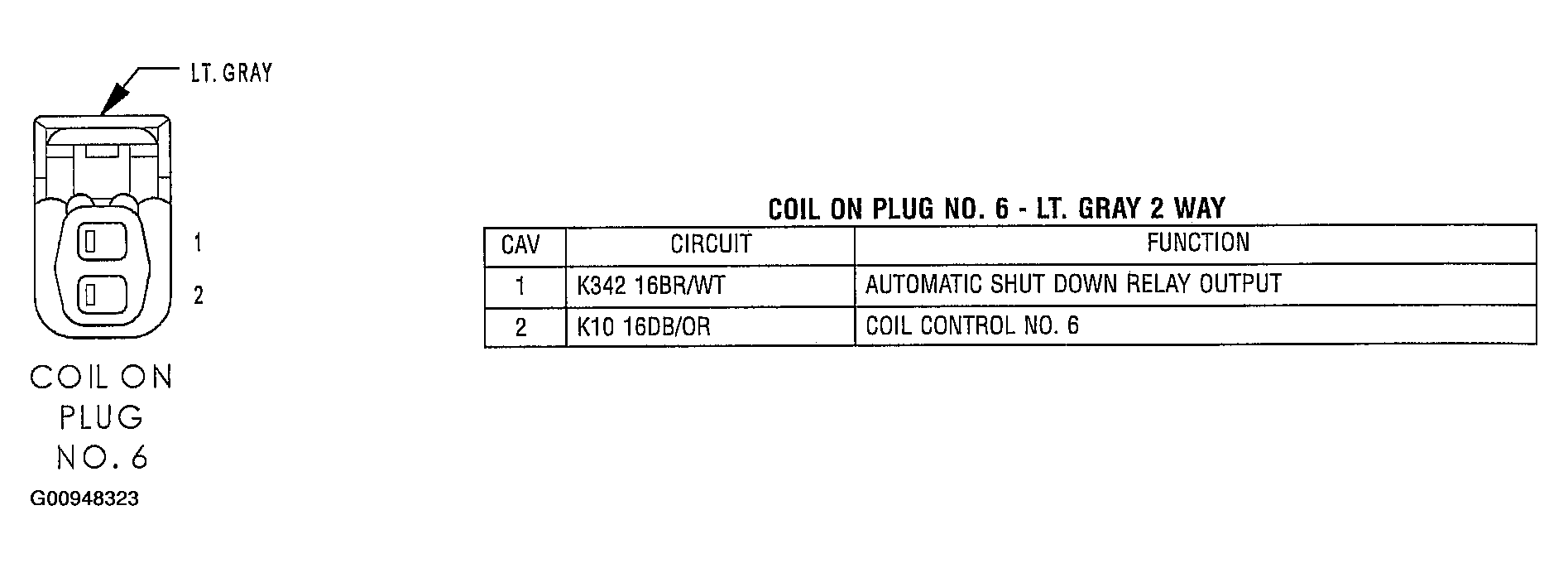

Fig 6: Identifying Coil On Plug No. 6 - LT. Gray 2 Way Connector
G00948323Courtesy of DAIMLERCHRYSLER CORP.
