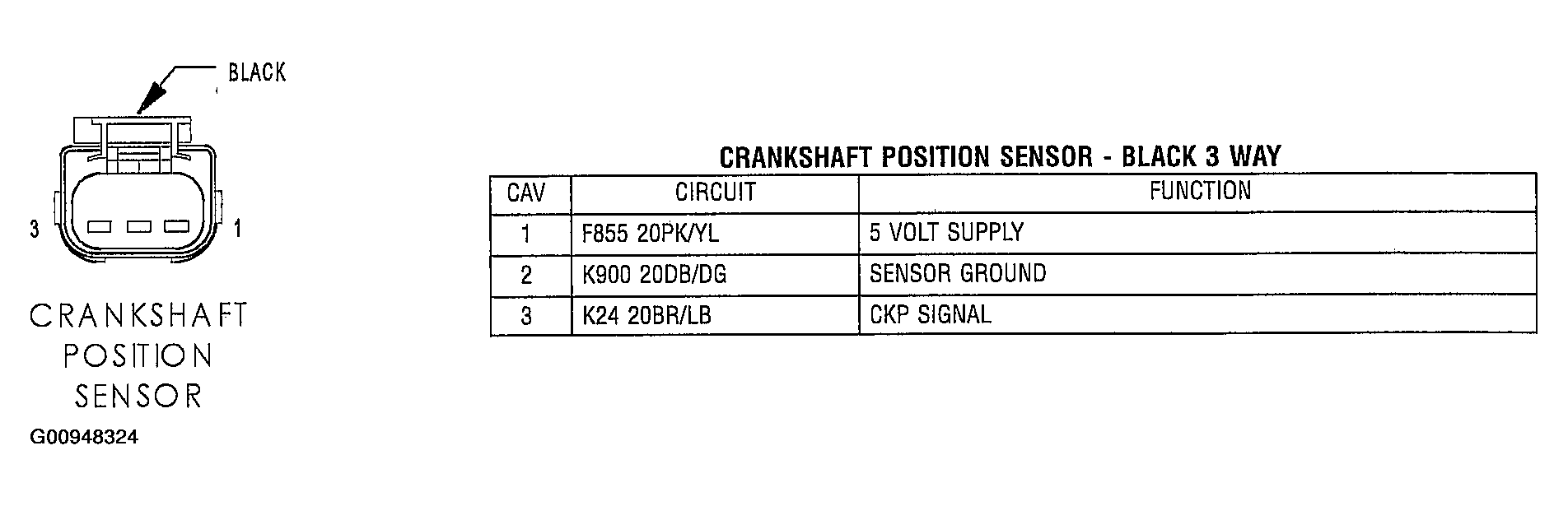

Crankshaft Position Sensor Connector End View
Fig 1: Identifying Crankshaft Position Sensor - Black 3 Way Connector
