Fuel Pump Relay Connector End View

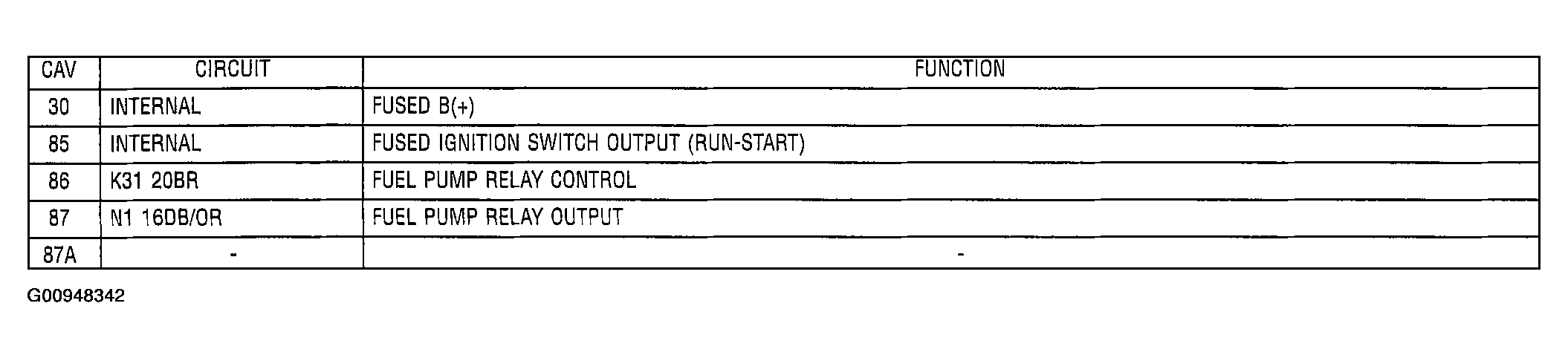

Fig 1: Identifying Fuel Pump Relay Connector
G00948342Courtesy of DAIMLERCHRYSLER CORP.
