Window Regulator: Removal
- Remove door trim panel. (Refer to REMOVAL
).
- Remove watershield. (Refer to REMOVAL
).
- Remove inner belt molding. (Refer to FRONT INNER BELT MOLDING WEATHERSTRIP
).
- Remove door glass. (Refer to REMOVAL
).

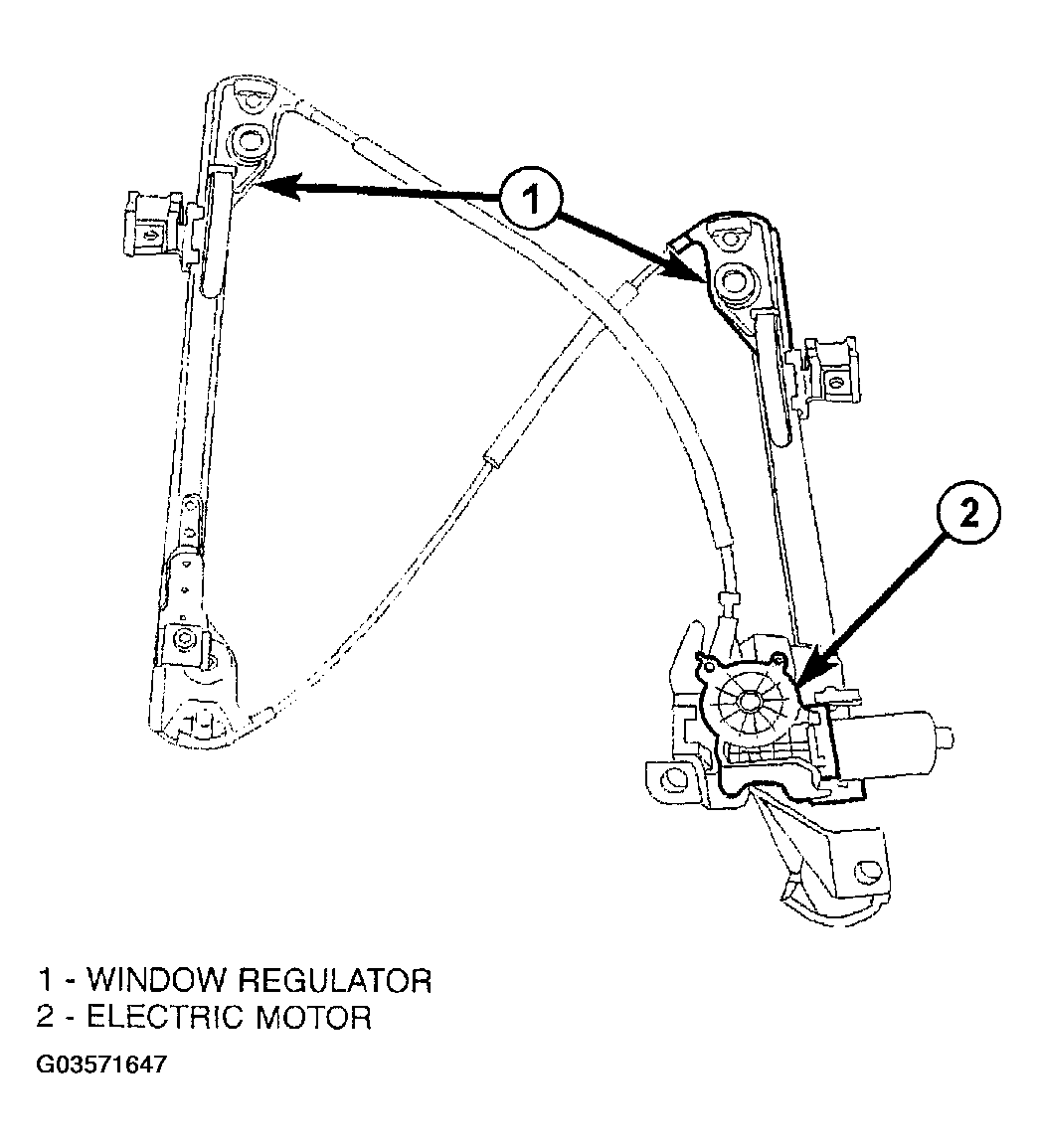

- Disconnect wire connector from power window motor (Figure
).
- Loosen screws attaching front and rear window guide rails to inner door panel (Figure
).
- Remove screw heads on guide rails from key hole slots in inner door panel.
- Loosen screws attaching motor/housing to inner door panel.
- Remove regulator from inner door panel.
- Extract rear guide rail through inner door panel rear access hole.
- Extract front guide rail through front access hole (Figure
).
