Key/Lock Cylinder: Removal
- Disconnect the negative battery cable.
- Remove bezel ignition switch ring.

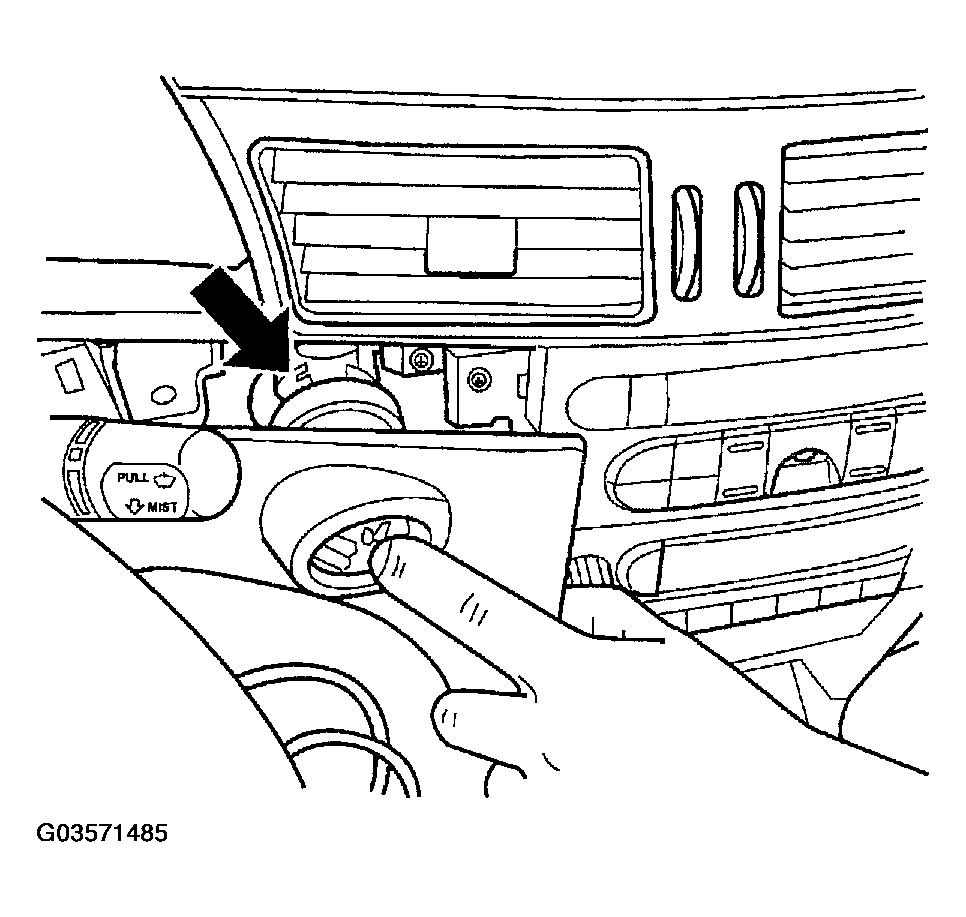

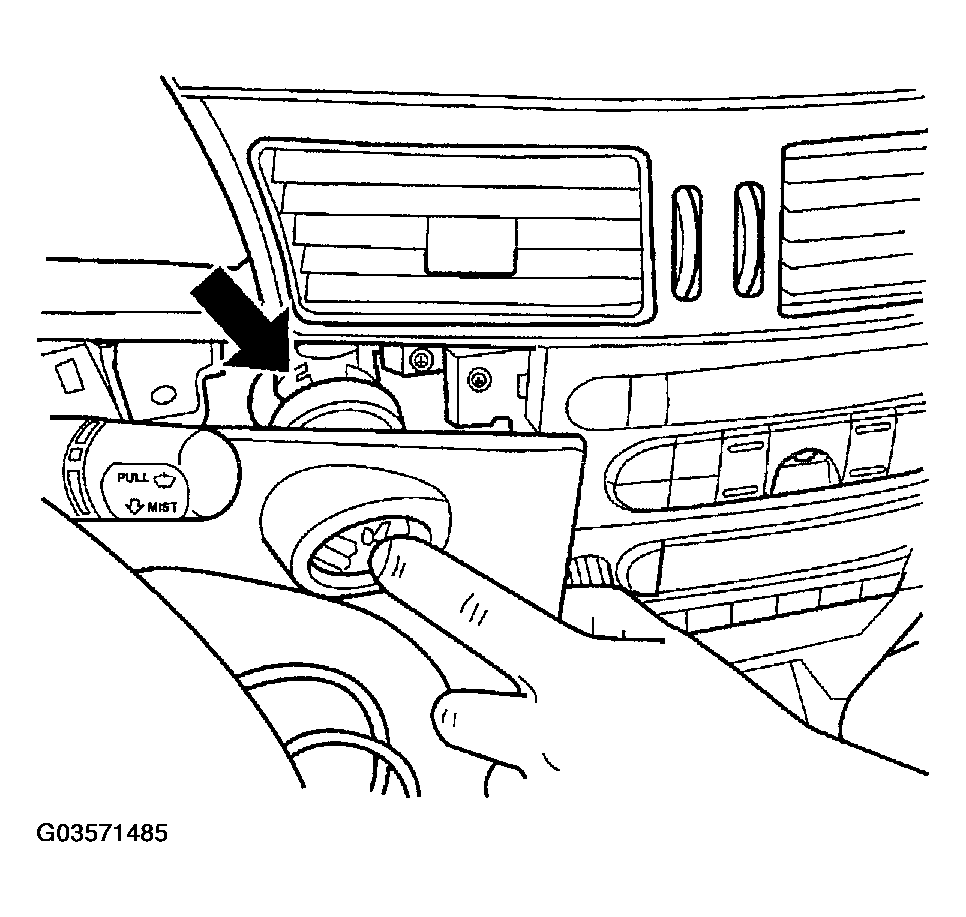

- Pull center console bezel loose from instrument panel (Fig 1).
Courtesy of DAIMLERCHRYSLER CORP.
- Insert ignition key and turn to the "ON" position.

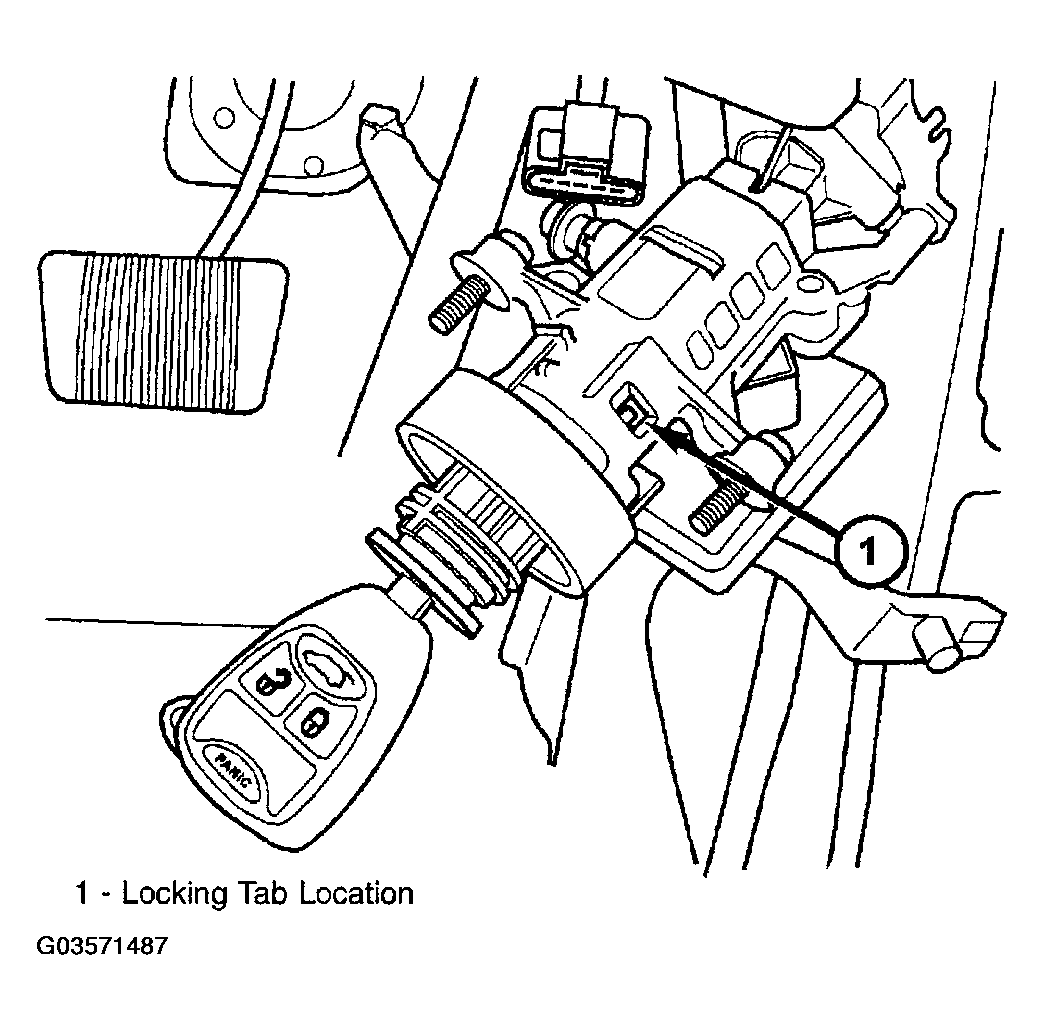

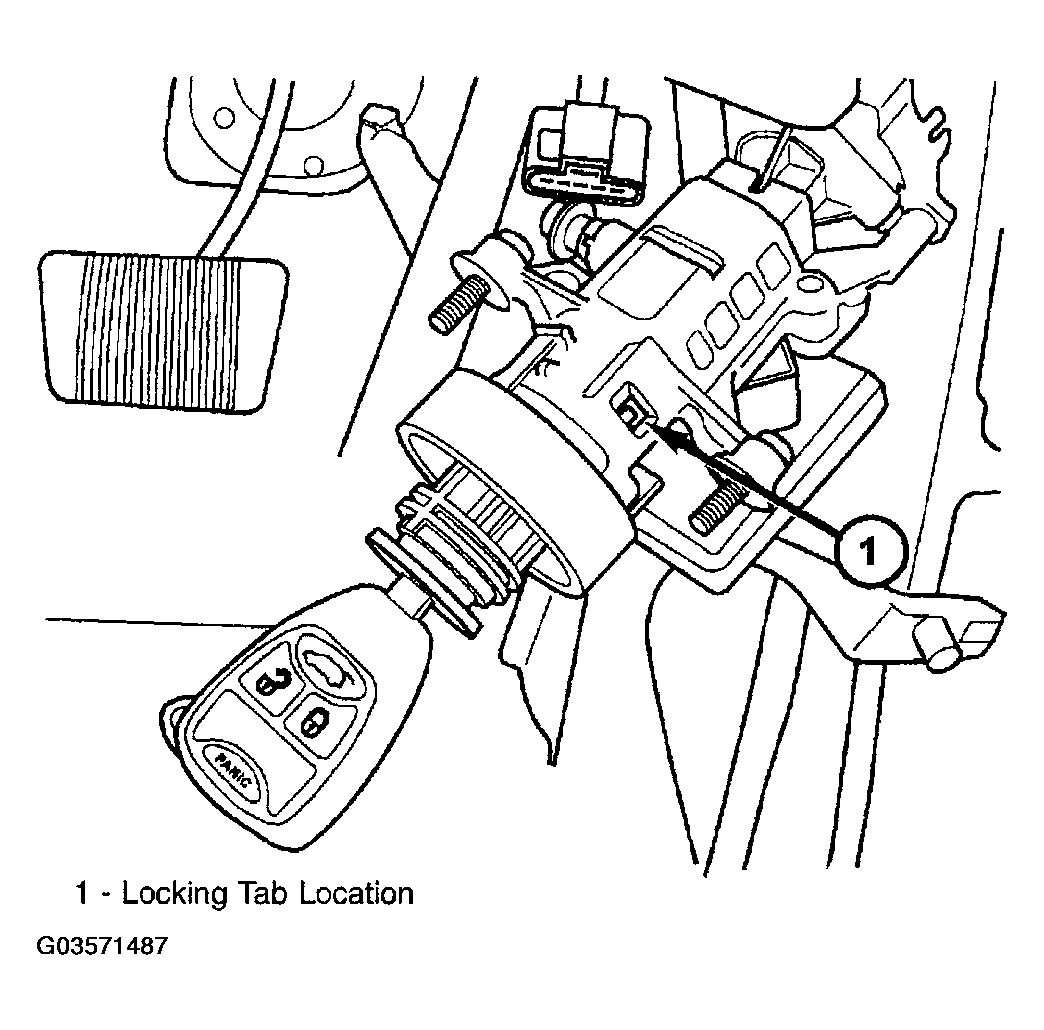

- Depress the locking tab on the ignition switch housing (Fig 2).
Courtesy of DAIMLERCHRYSLER CORP.

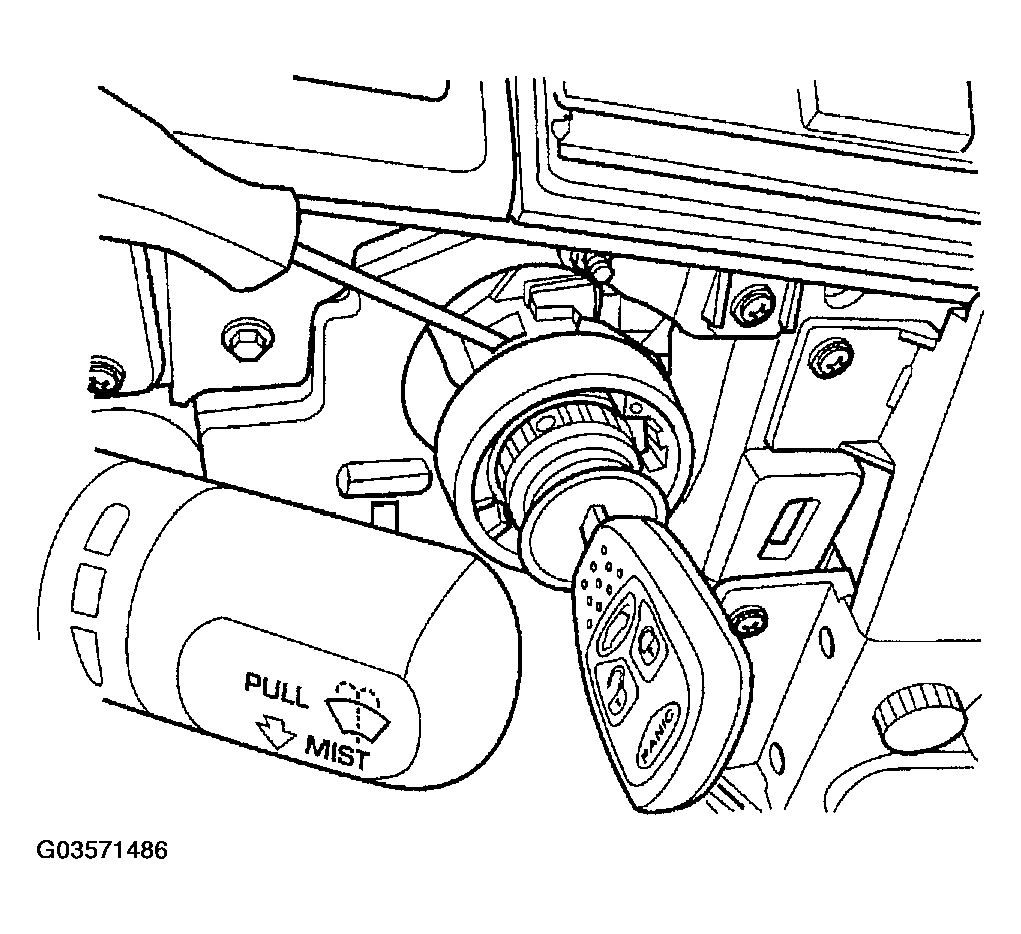

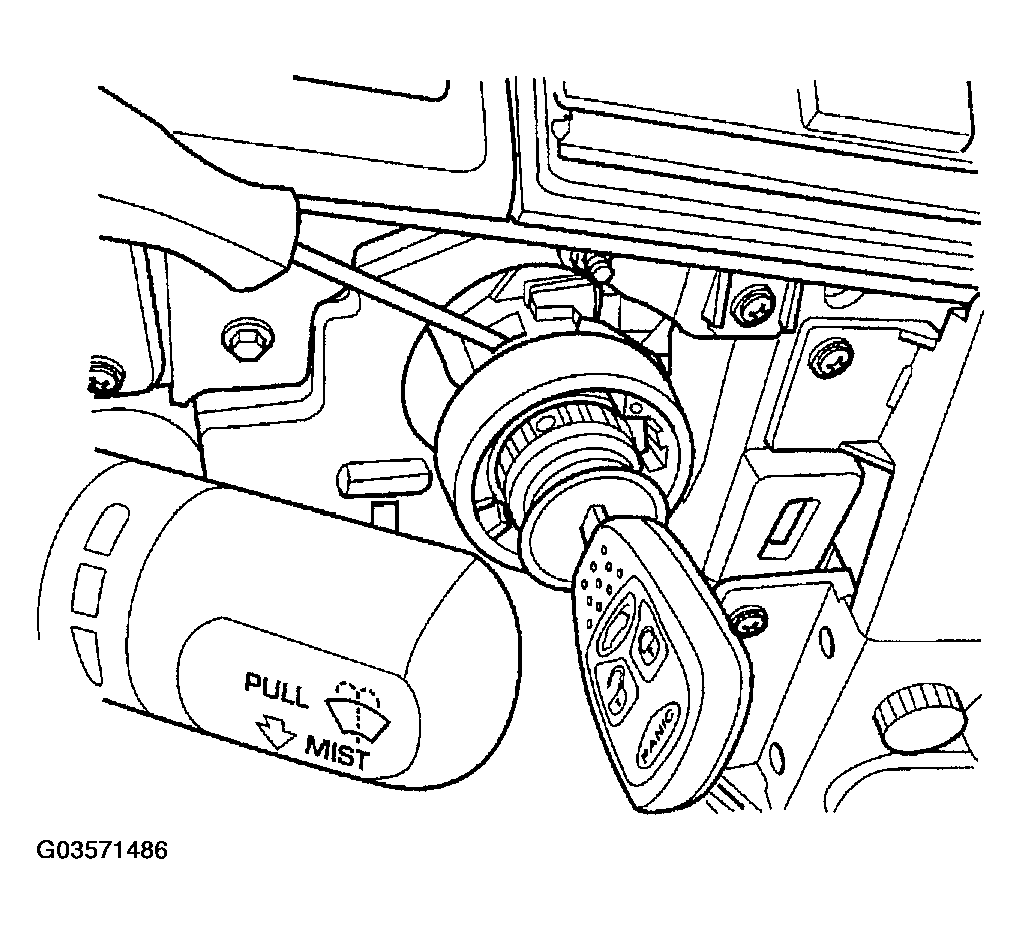

- Pull the key cylinder from the ignition switch housing (Fig 3).
Courtesy of DAIMLERCHRYSLER CORP.
