A/C Compressor Clutch Connector End View

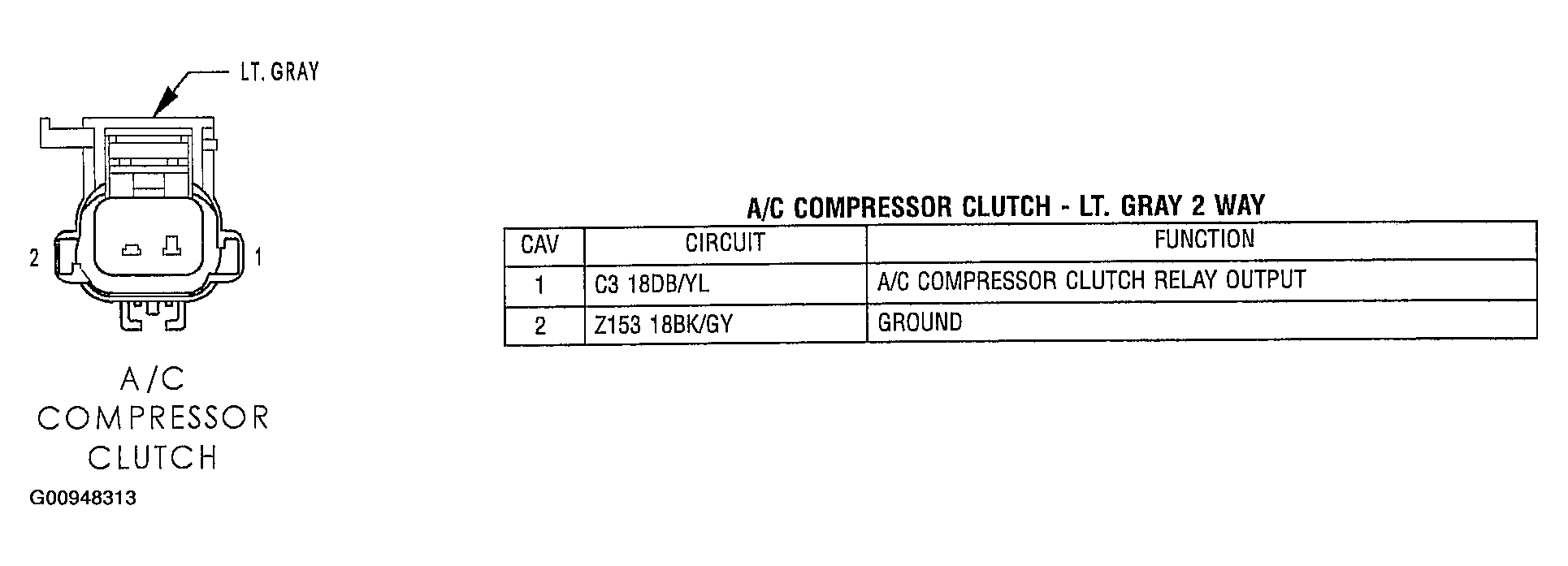

Fig 1: Identifying A/C Compressor Clutch - LT. Gray 2 Way Connector
G00948313Courtesy of DAIMLERCHRYSLER CORP.
