Integrated Power Module Connector End Views

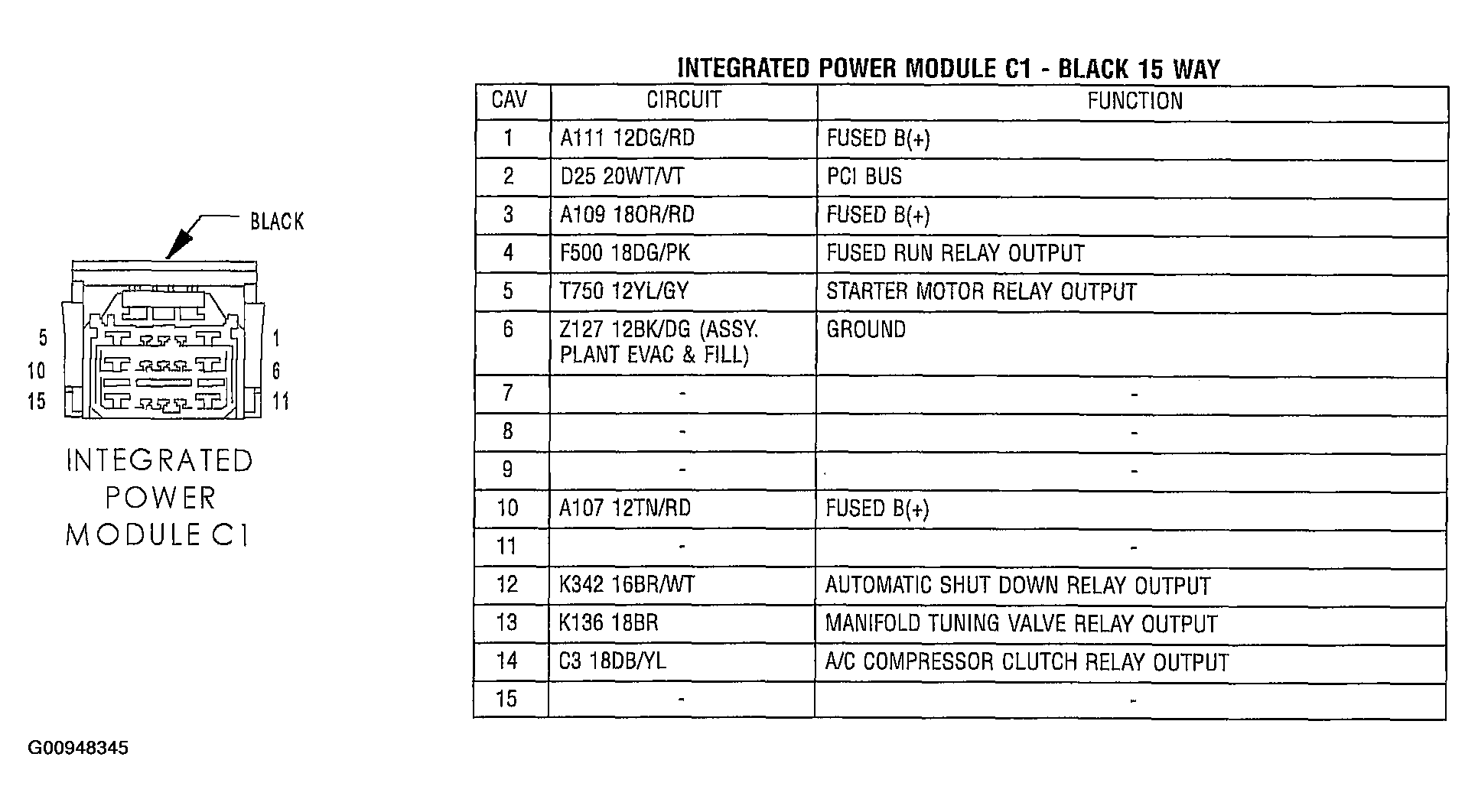

Fig 1: Identifying Integrated Power Module C1 - Black 15 Way Connector
G00948345Courtesy of DAIMLERCHRYSLER CORP.

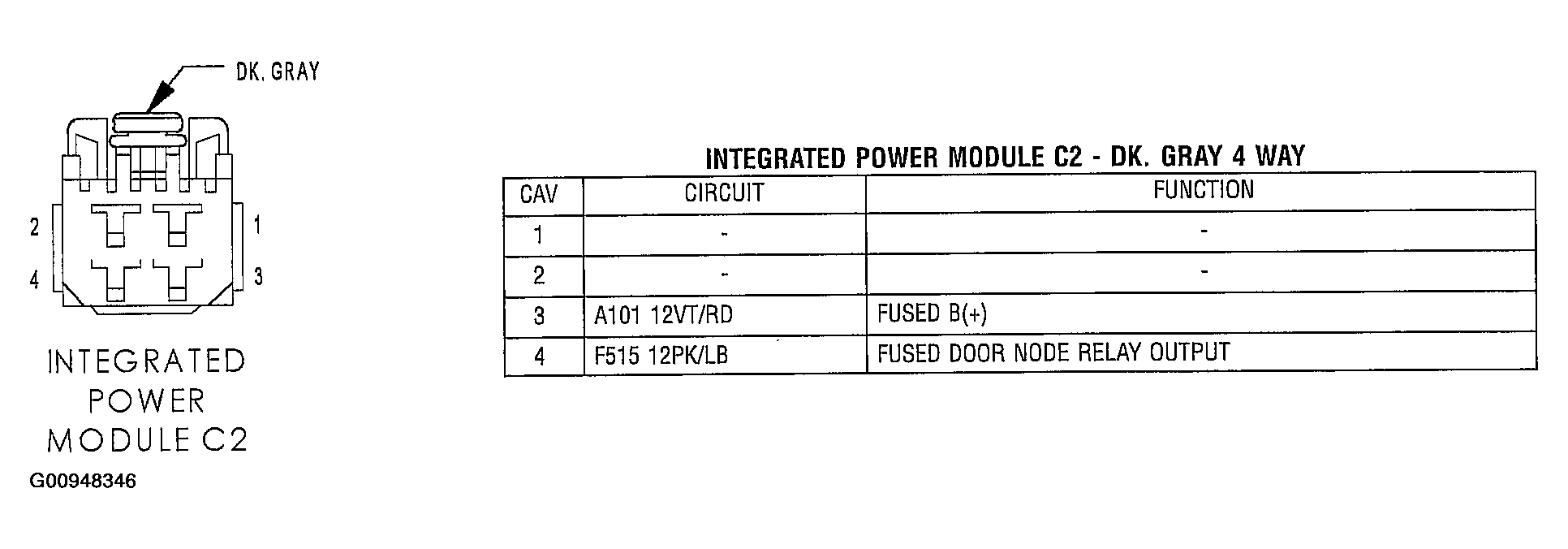

Fig 2: Identifying Integrated Power Module C2 - DK. Gray 4 Way Connector
G00948346Courtesy of DAIMLERCHRYSLER CORP.

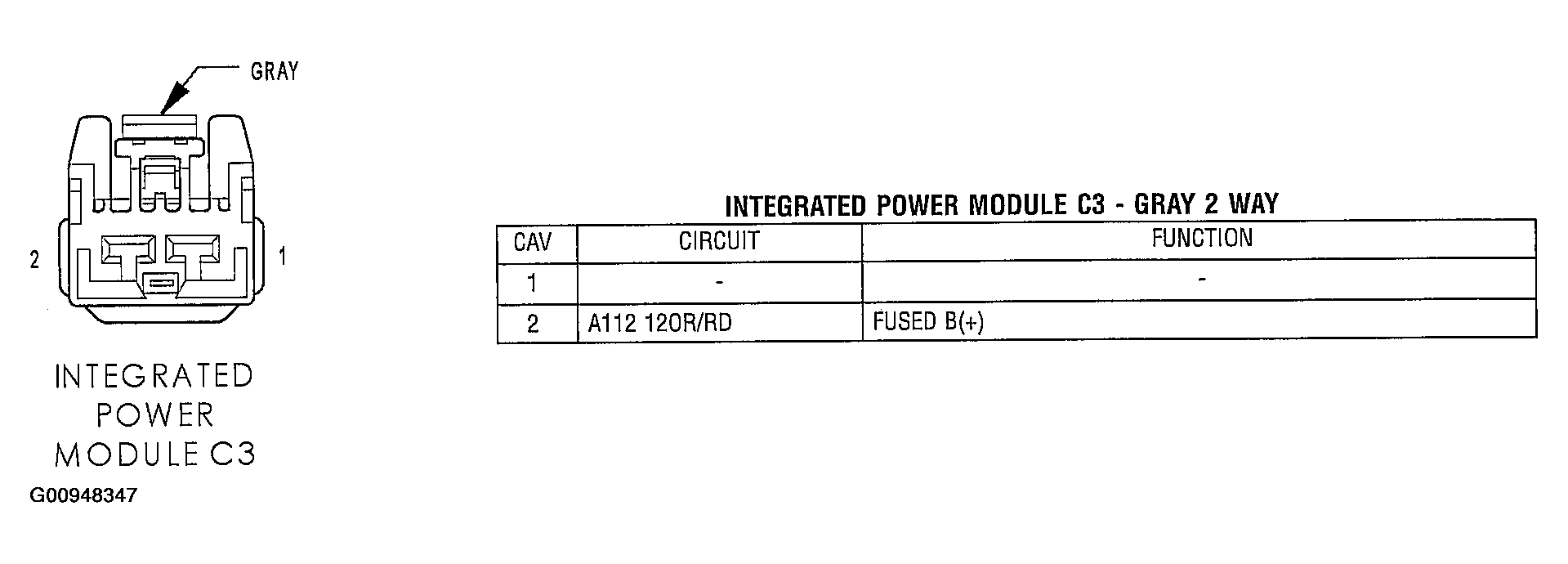

Fig 3: Identifying Integrated Power Module C3 - Gray 2 Way Connector
G00948347Courtesy of DAIMLERCHRYSLER CORP.

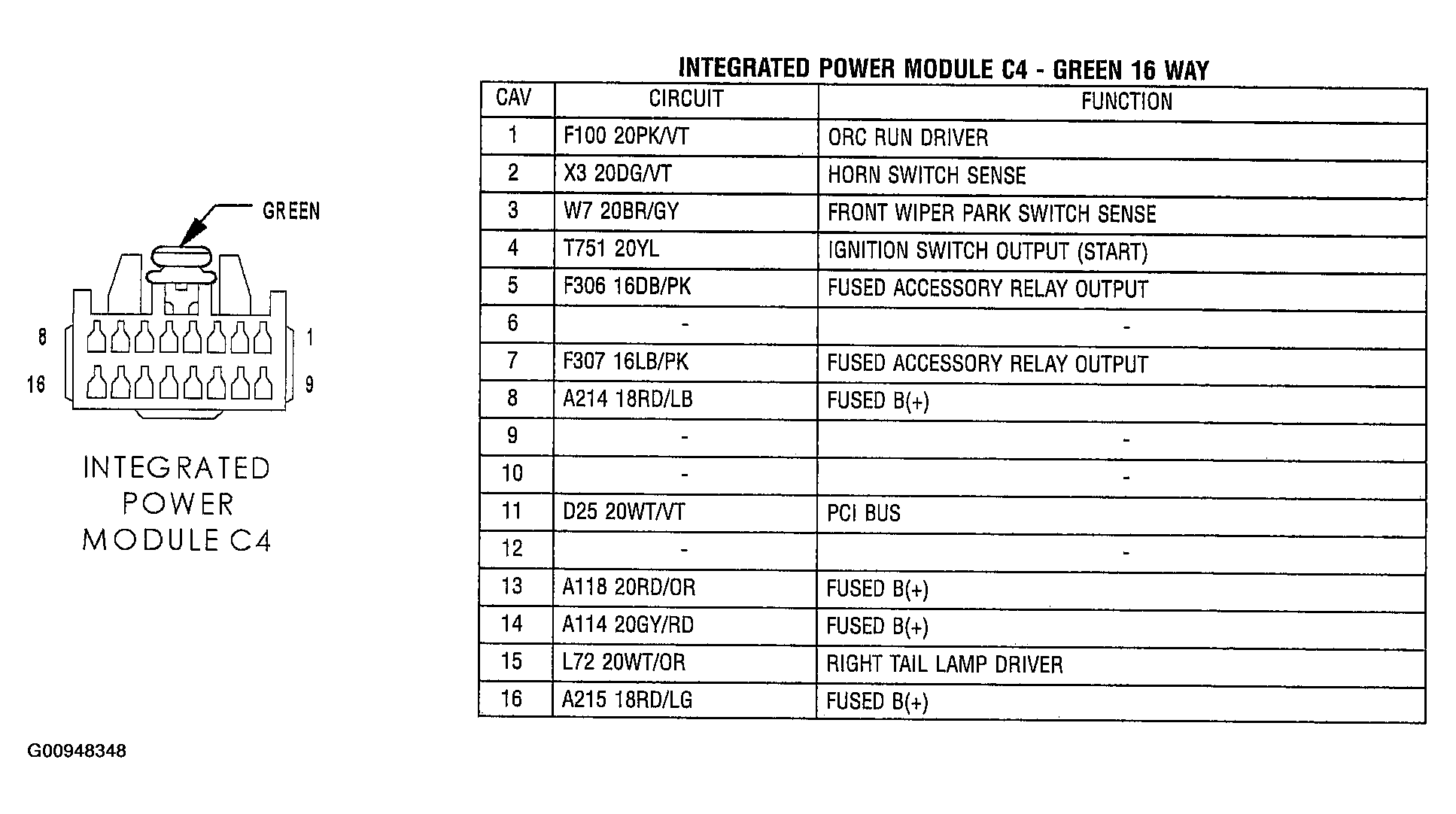

Fig 4: Identifying Integrated Power Module C4 - Green 16 Way Connector
G00948348Courtesy of DAIMLERCHRYSLER CORP.

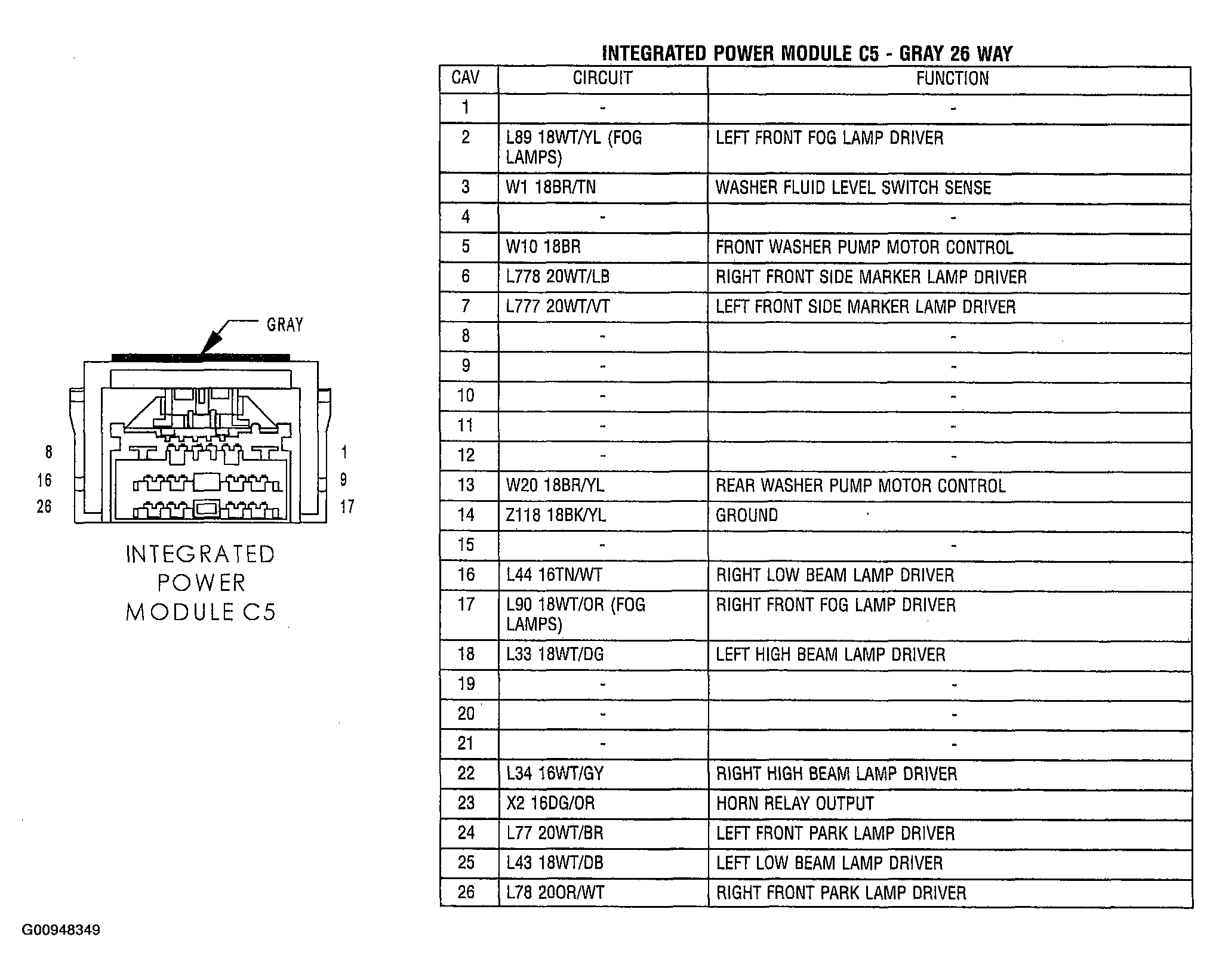

Fig 5: Identifying Integrated Power Module C5 - Gray 26 Way Connector
G00948349Courtesy of DAIMLERCHRYSLER CORP.

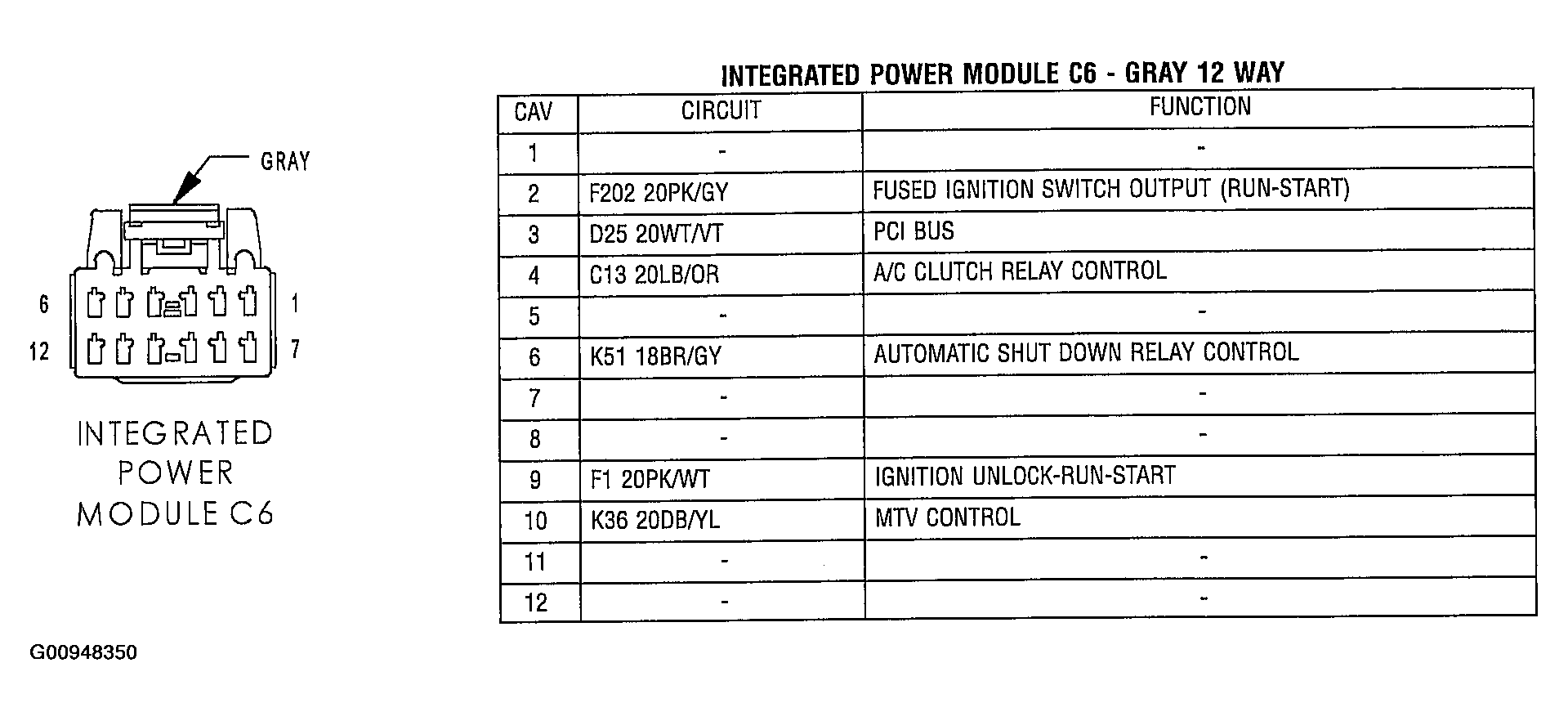

Fig 6: Identifying Integrated Power Module C6 - Gray 12 Way Connector
G00948350Courtesy of DAIMLERCHRYSLER CORP.

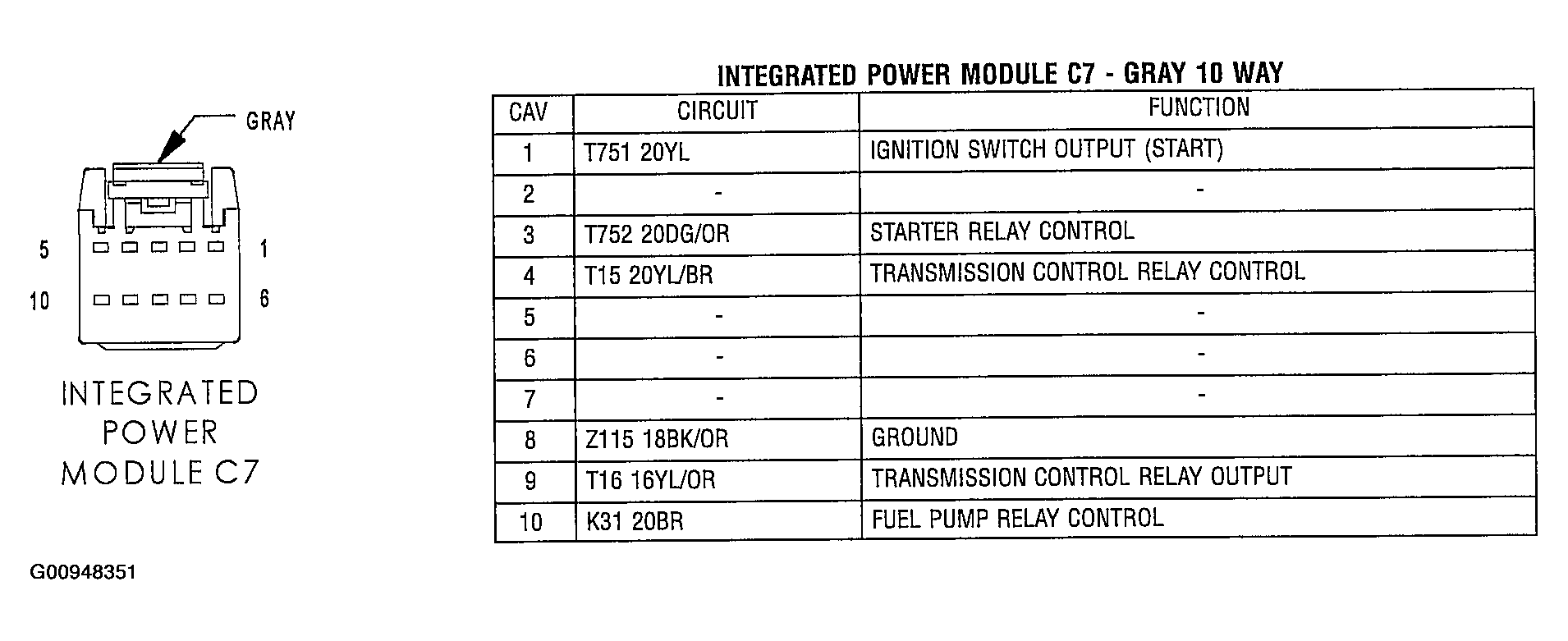

Fig 7: Identifying Integrated Power Module C7 - Gray 10 Way Connector
G00948351Courtesy of DAIMLERCHRYSLER CORP.

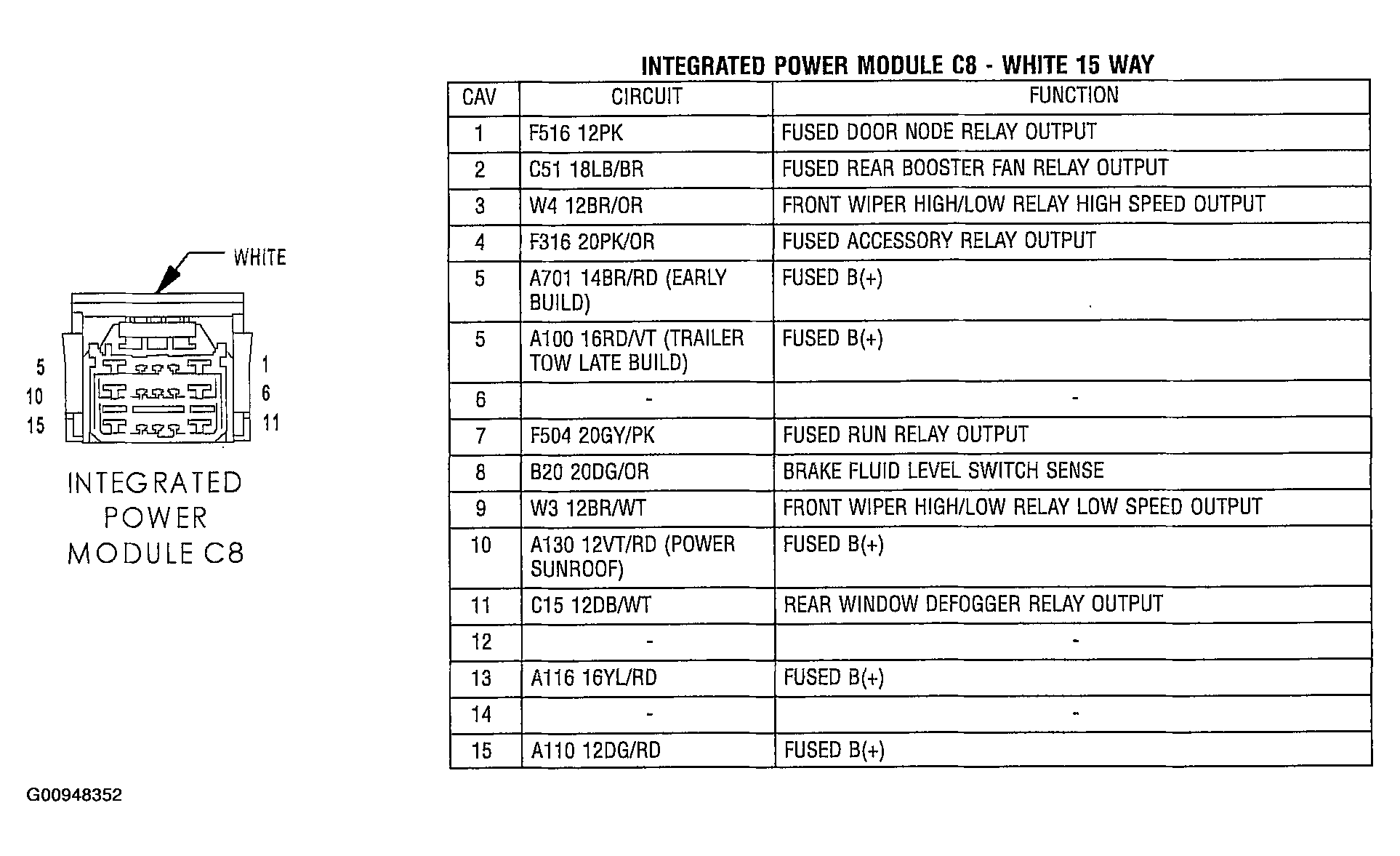

Fig 8: Identifying Integrated Power Module C8 - White 15 Way Connector
G00948352Courtesy of DAIMLERCHRYSLER CORP.

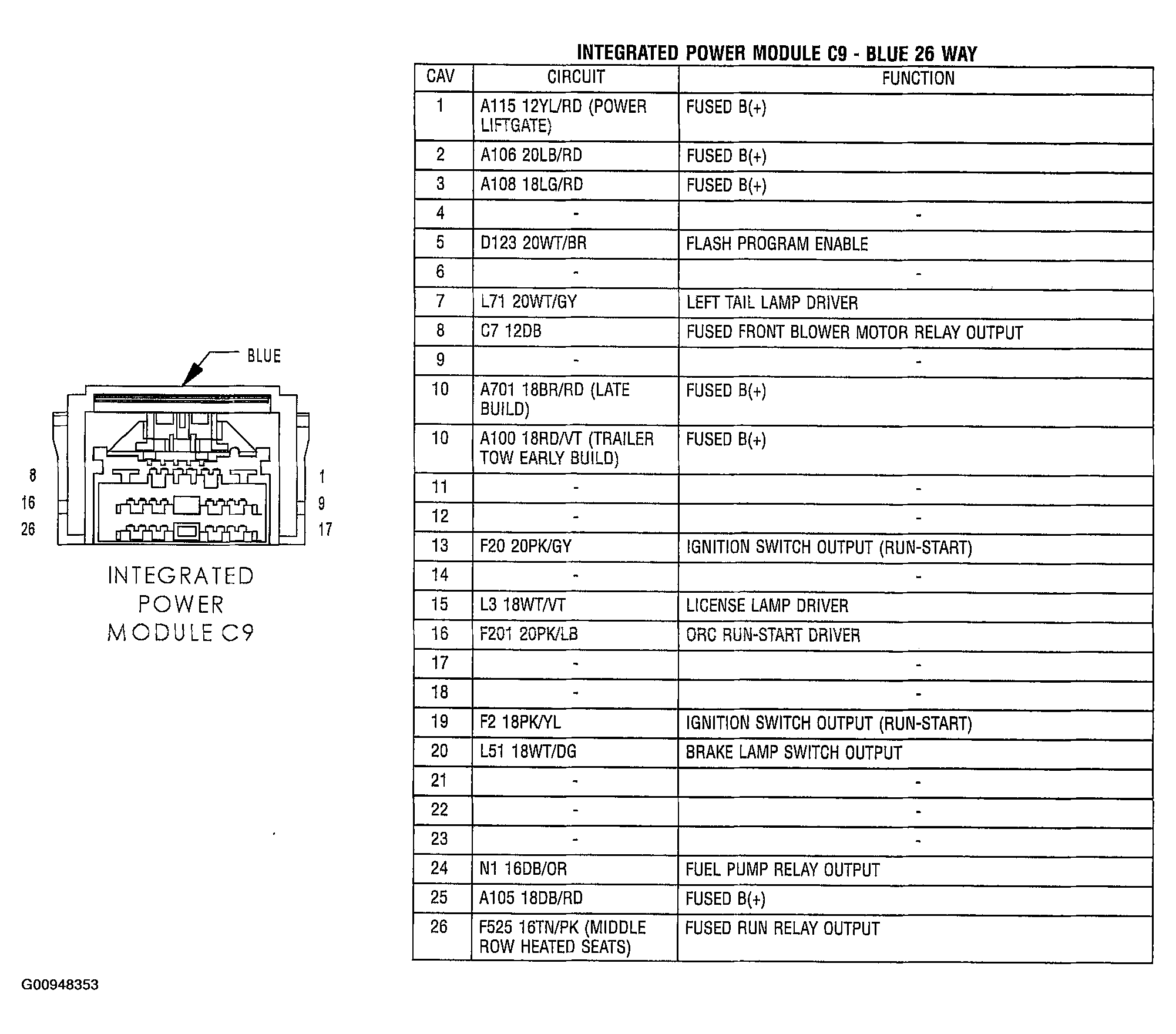

Fig 9: Identifying Integrated Power Module C9 - Blue 26 Way Connector
G00948353Courtesy of DAIMLERCHRYSLER CORP.
